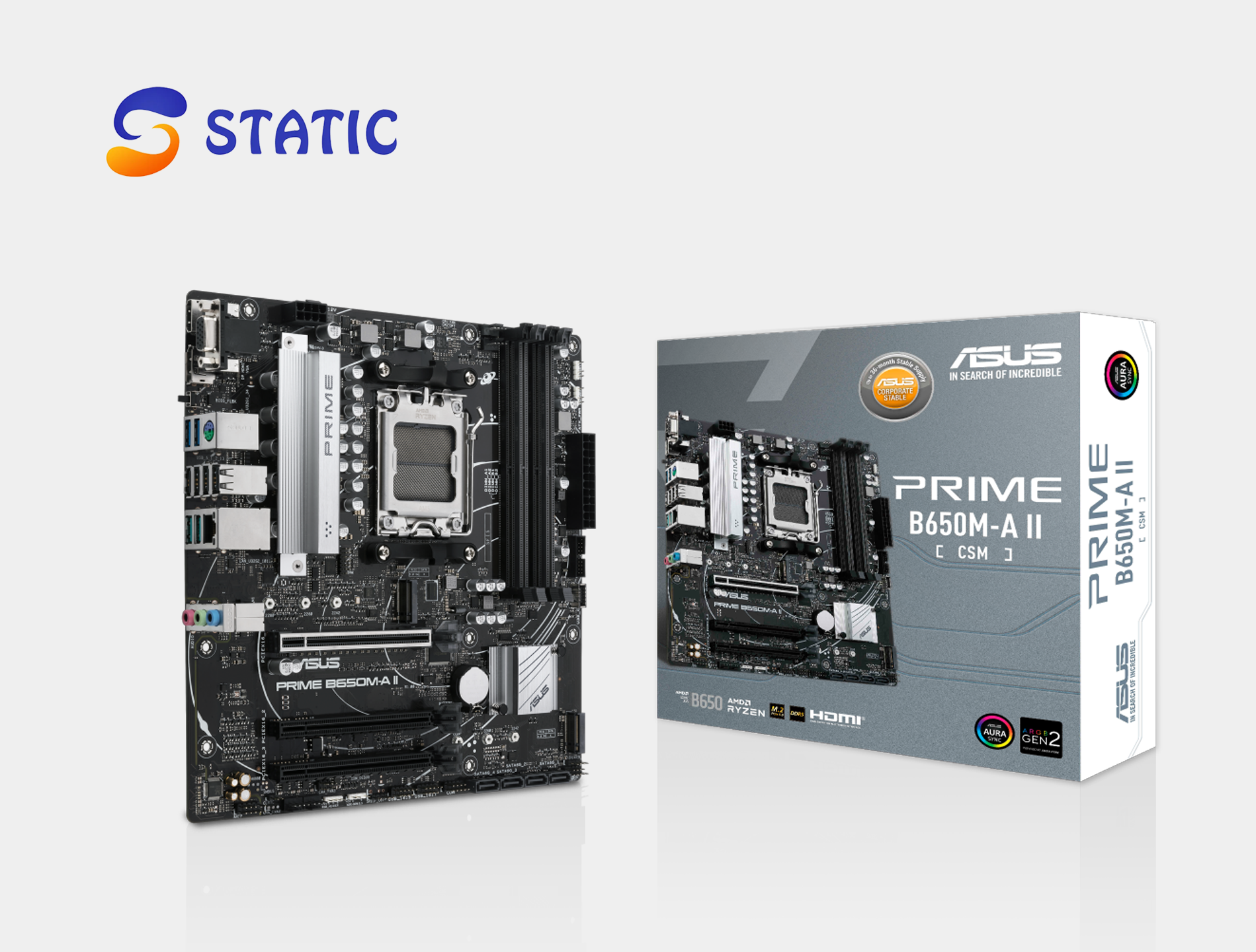

Asus Prime B650M-A II CSM

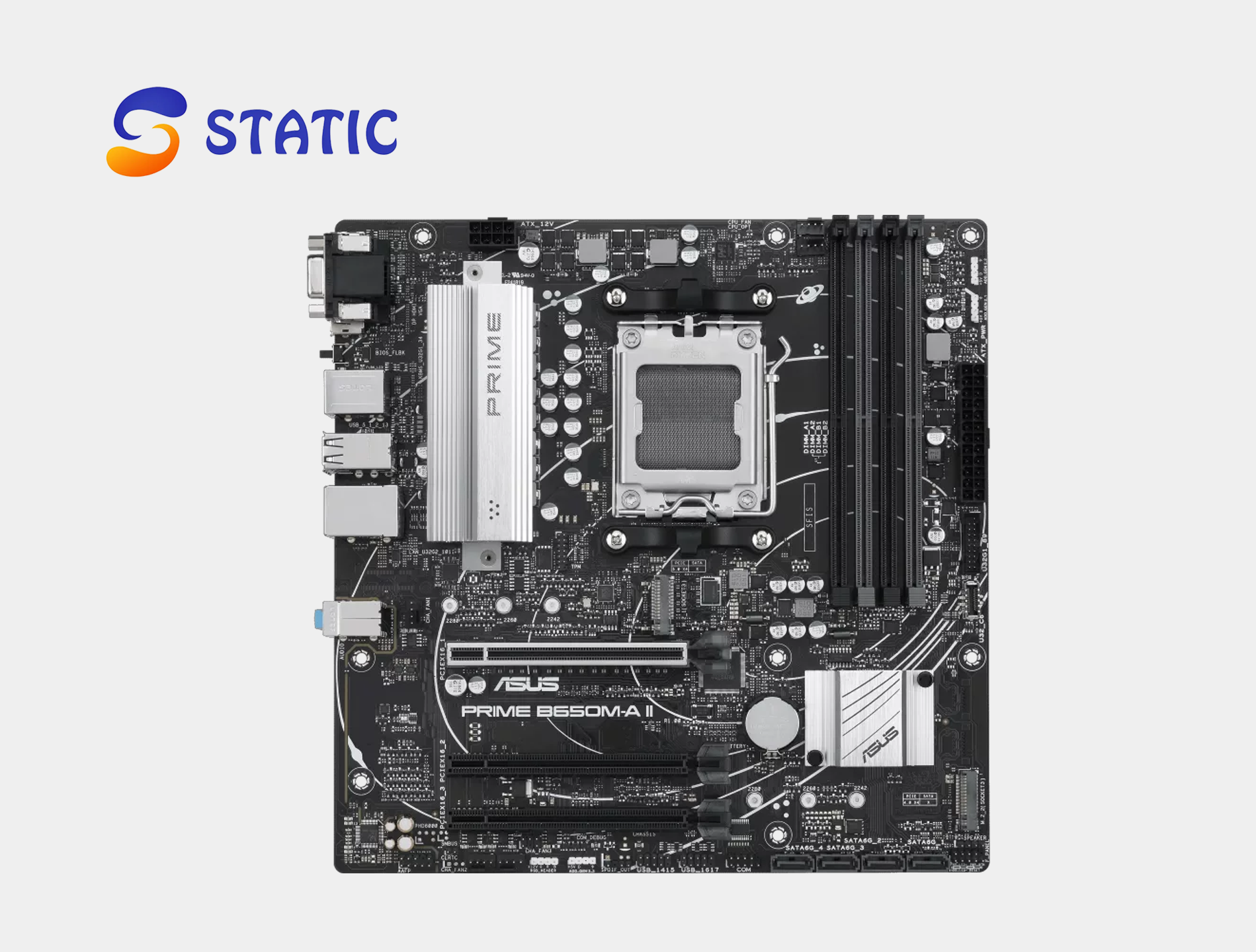

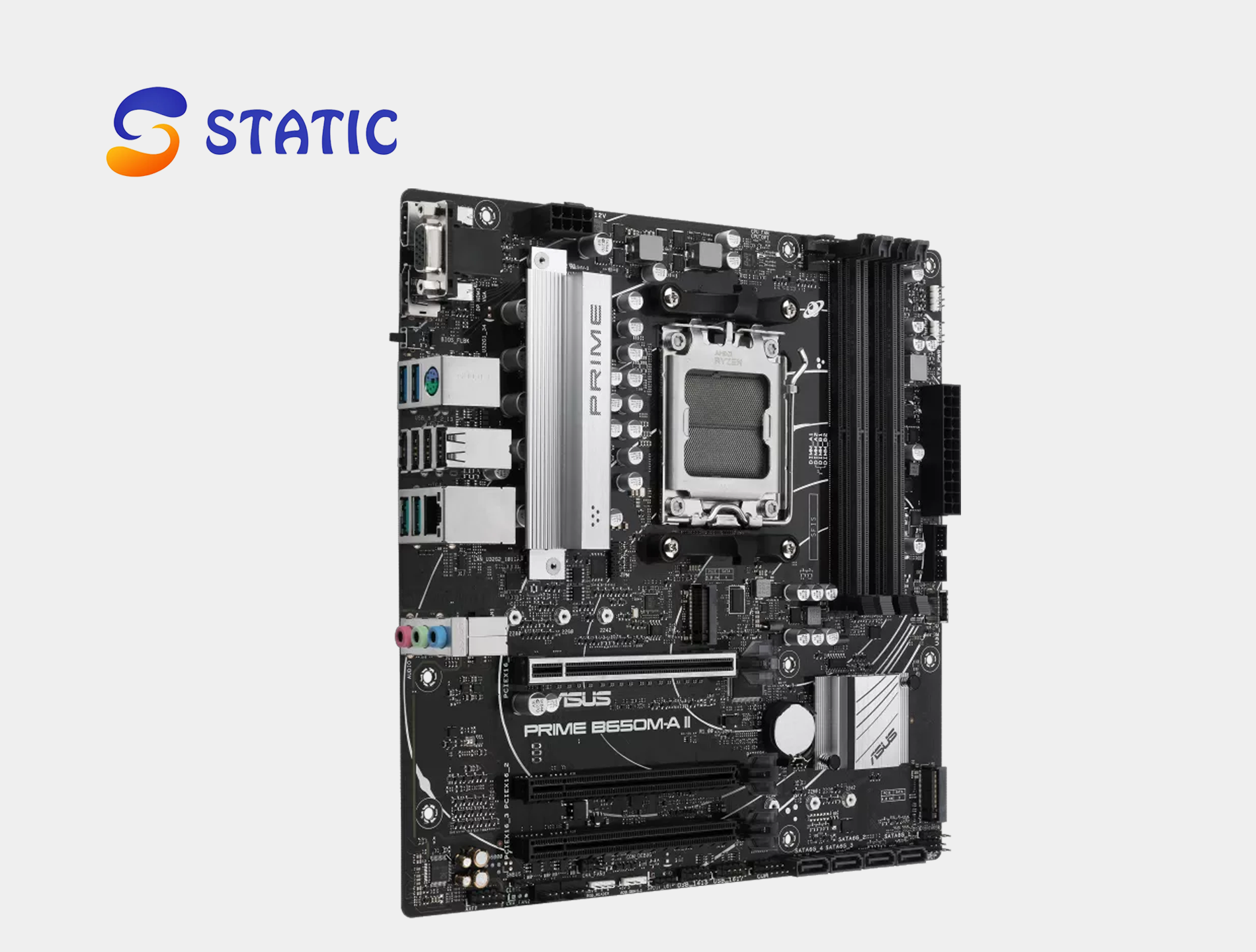

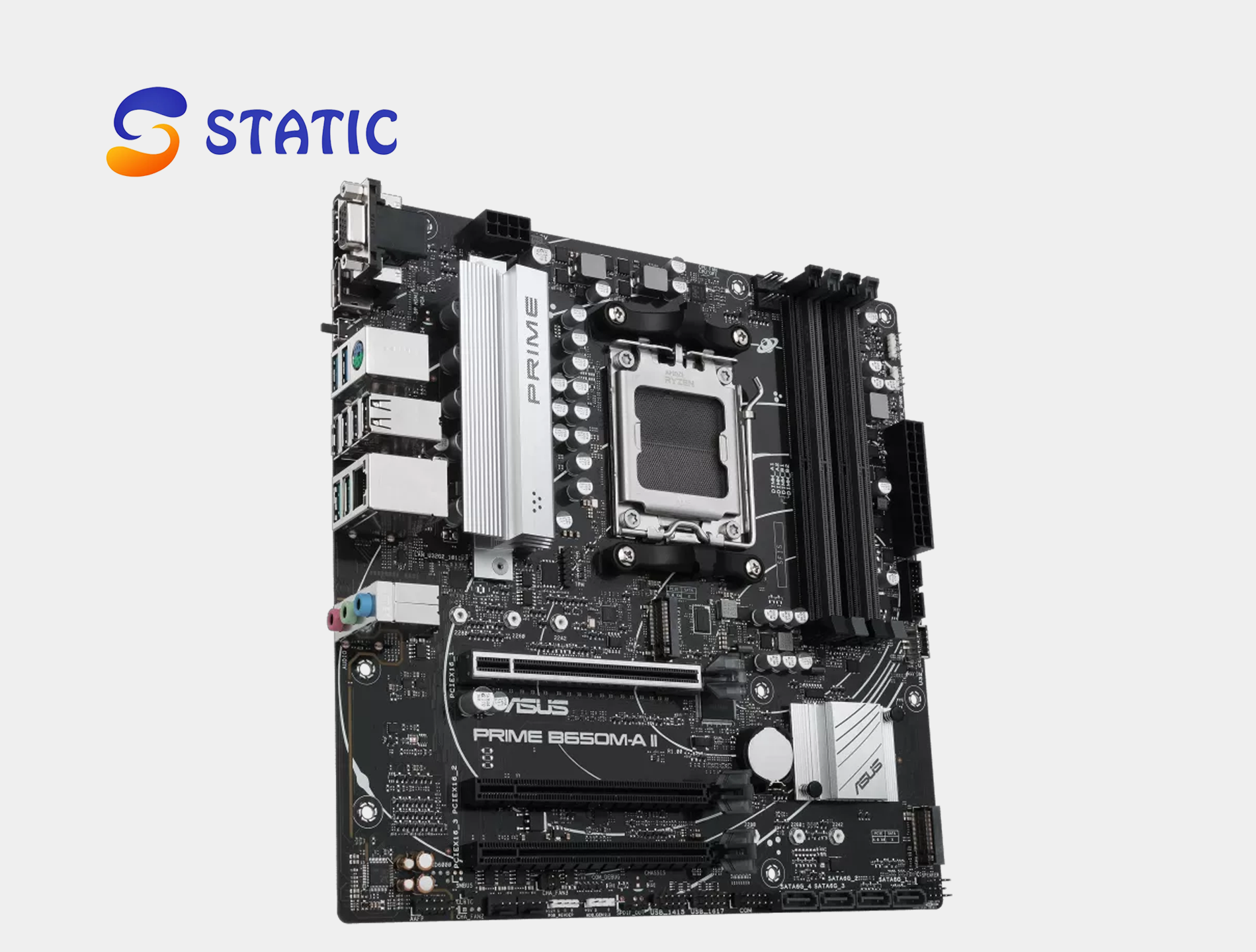

The ASUS Prime B650M-A II CSM is a feature-rich Micro ATX motherboard designed for modern AMD Ryzen desktop processors and high-performance DDR5 memory. Built around the AMD B650 chipset and the AM5 socket, the ASUS Prime B650M-A II CSM supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, making it a versatile foundation for gaming PCs, productivity systems, and performance-focused builds.

With support for CPUs rated up to 170W, the ASUS Prime B650M-A II CSM provides a capable platform for demanding processors. Its four DDR5 DIMM slots support up to 192GB of memory, with speeds reaching up to DDR5-7600+ through overclocking. AMD EXPO support and ASUS OptiMem II technology make the ASUS Prime B650M-A II CSM well suited for users looking to optimize memory performance.

Storage connectivity is another major strength. The motherboard provides two M.2 slots, including PCIe 5.0 x4 support for compatible Ryzen 9000 and 7000 Series processors, alongside four SATA 6Gb/s ports. This allows users to combine high-speed NVMe storage with additional SATA SSDs or hard drives. AMD RAIDXpert2 technology also supports PCIe and SATA RAID configurations.

For expansion, the ASUS Prime B650M-A II CSM offers PCIe 4.0 connectivity for graphics cards and additional expansion hardware. Depending on the installed CPU, the primary PCIe slot can operate in x16 or other supported modes. Integrated display outputs include DisplayPort, HDMI, and VGA, with support for resolutions up to 8K through DisplayPort when supported by the processor.

Networking is handled by a Realtek 2.5Gb Ethernet controller, providing faster wired connectivity for gaming, file transfers, and demanding network applications. The ASUS Prime B650M-A II CSM also provides eight rear USB ports, including USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 connectivity, plus additional front USB headers.

Audio is powered by a Realtek 7.1-channel High Definition Audio CODEC with audio shielding, premium capacitors, and dedicated audio PCB layers. ASUS also equips the ASUS Prime B650M-A II CSM with Q-Design features, BIOS FlashBack, Aura Sync lighting support, VRM heatsinks, and ASUS 5X Protection III.

With its AM5 platform, DDR5 support, PCIe 5.0 storage, 2.5Gb Ethernet, and extensive connectivity, the ASUS Prime B650M-A II CSM is a strong choice for building a modern AMD-based desktop system.

Why Choose ASUS Prime B650M-A II CSM?

The ASUS Prime B650M-A II CSM is designed for users who want a modern AMD platform without moving to a larger ATX motherboard. Its Micro ATX form factor measures 24.4 x 24.4cm, making the ASUS Prime B650M-A II CSM suitable for a wide range of PC cases while still providing a strong selection of expansion, storage, and connectivity options.

One of its biggest advantages is AM5 compatibility. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, the ASUS Prime B650M-A II CSM gives users access to AMD’s current-generation desktop platform. It also supports processors up to 170W, making it suitable for performance-oriented configurations.

Memory performance is another key benefit. Four DDR5 DIMM slots support up to 192GB of RAM, with overclocked speeds reaching up to DDR5-7600+. AMD EXPO technology makes memory tuning easier for compatible modules, while ASUS OptiMem II helps optimize memory signal integrity.

For storage, the ASUS Prime B650M-A II CSM combines two M.2 slots with four SATA 6Gb/s ports. The primary M.2 slot can support PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors, giving users a fast upgrade path for next-generation NVMe SSDs.

The motherboard also includes a Realtek 2.5Gb Ethernet controller, multiple USB ports, BIOS FlashBack, Q-LED Core, Q-DIMM, Q-Slot, and ASUS 5X Protection III. These features make the ASUS Prime B650M-A II CSM easier to build with while adding useful protection and troubleshooting capabilities.

For RGB-equipped systems, Aura Sync and Addressable Gen 2 headers provide flexible lighting control. Combined with its strong connectivity, modern storage interface, DDR5 support, and compact form factor, the ASUS Prime B650M-A II CSM is a well-balanced motherboard for a modern AMD gaming or productivity PC.

Specifications

Model
PRIME B650M-A II-CSM

Socket
AMD Socket AM5

CPU Support
AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors

CPU Support Power
Up to 170W

Chipset
AMD B650

Memory
4 x DIMM
Up to 192GB DDR5
Up to DDR5-7600+ (OC)
Dual Channel
ECC and Non-ECC Unbuffered Memory
AMD EXPO Support
ASUS OptiMem II

Graphics Outputs
1 x DisplayPort, up to 8K@60Hz
1 x HDMI, up to 4K@60Hz
1 x VGA

Expansion Slots
1 x PCIe 4.0 x16
2 x PCIe 4.0 x16 slots operating in x1 mode
Slot configuration varies depending on CPU

M.2 Storage
2 x M.2 Key M
M.2_1 supports PCIe 5.0 x4 with supported Ryzen 9000/7000 processors
M.2_2 supports PCIe 4.0 x4

SATA
4 x SATA 6Gb/s

RAID Support
AMD RAIDXpert2
PCIe RAID 0/1/10
SATA RAID 0/1/10

Ethernet
Realtek 2.5Gb Ethernet

Rear USB
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A

Front USB
USB 3.2 Gen 1 Type-C support
USB 3.2 Gen 1 headers
USB 2.0 headers

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Up to 24-bit/192kHz playback

Audio Features
Audio Shielding
Premium Audio Capacitors
Dedicated Audio PCB Layers

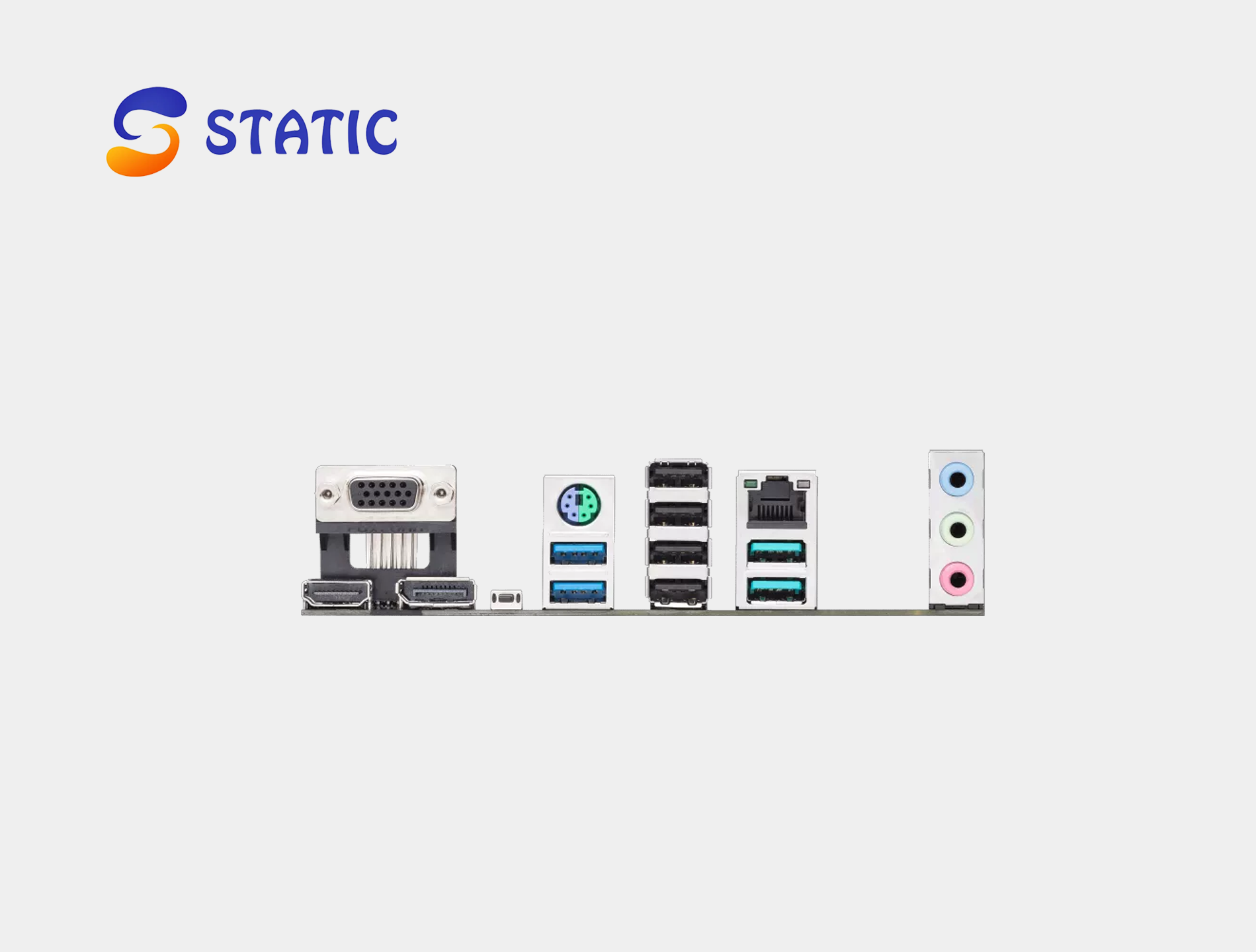

Back Panel I/O
USB 3.2 Gen 2
USB 3.2 Gen 1
USB 2.0
DisplayPort
HDMI
VGA
2.5Gb Ethernet
3 x Audio Jacks
BIOS FlashBack Button
PS/2 Keyboard/Mouse Combo

Cooling Headers
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan

RGB Support
3 x Addressable Gen 2 Headers
1 x Aura RGB Header

Power Connectors
1 x 24-pin Main Power
1 x 8-pin +12V Power

Special Features
ASUS 5X Protection III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
Q-DIMM
Q-LED Core
Q-Slot
VRM Heatsink
BIOS FlashBack
Aura Sync

BIOS
256Mb Flash ROM
UEFI AMI BIOS

Operating System Support
Windows 11
Windows 10 64-bit

Form Factor
Micro ATX
24.4 x 24.4cm
