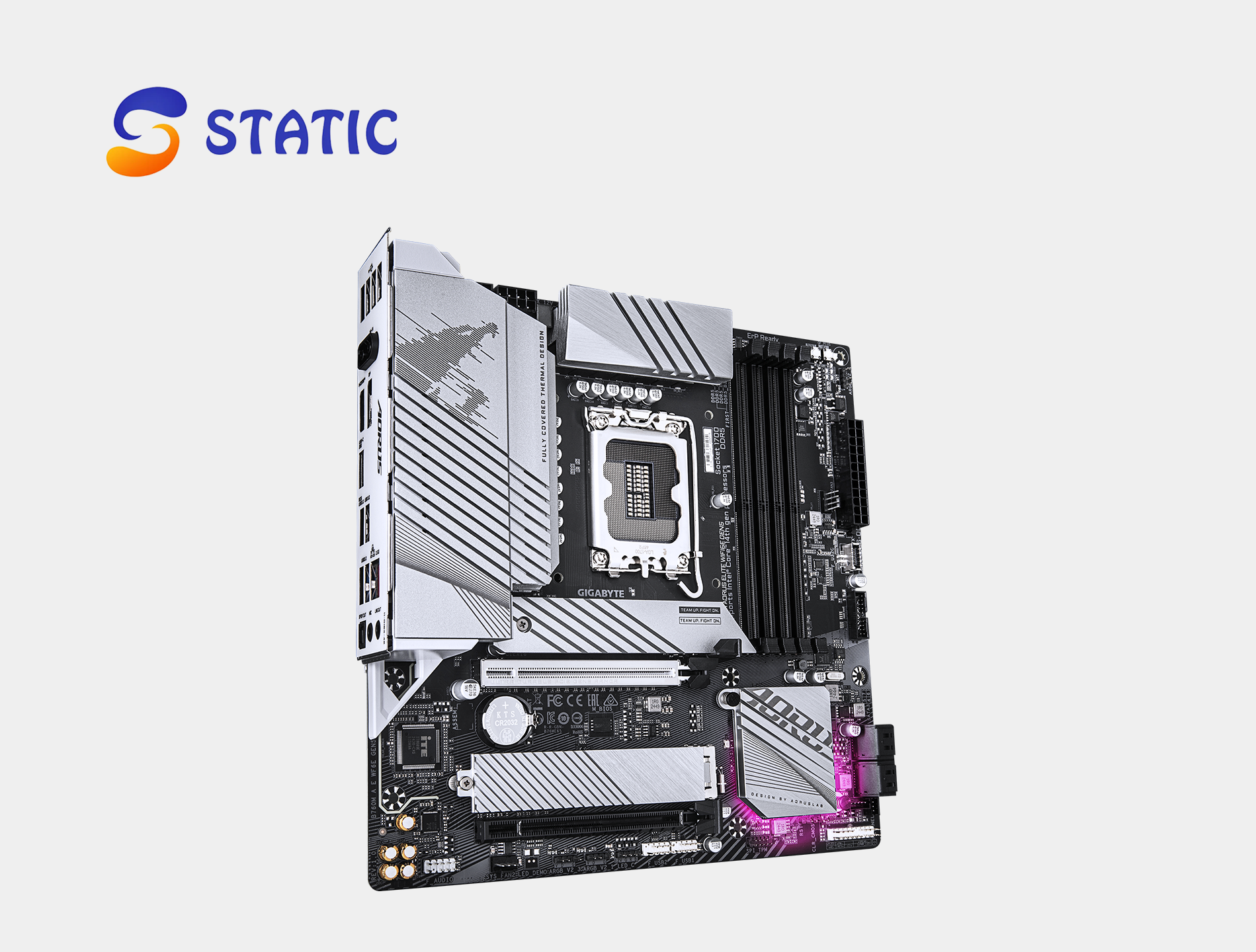

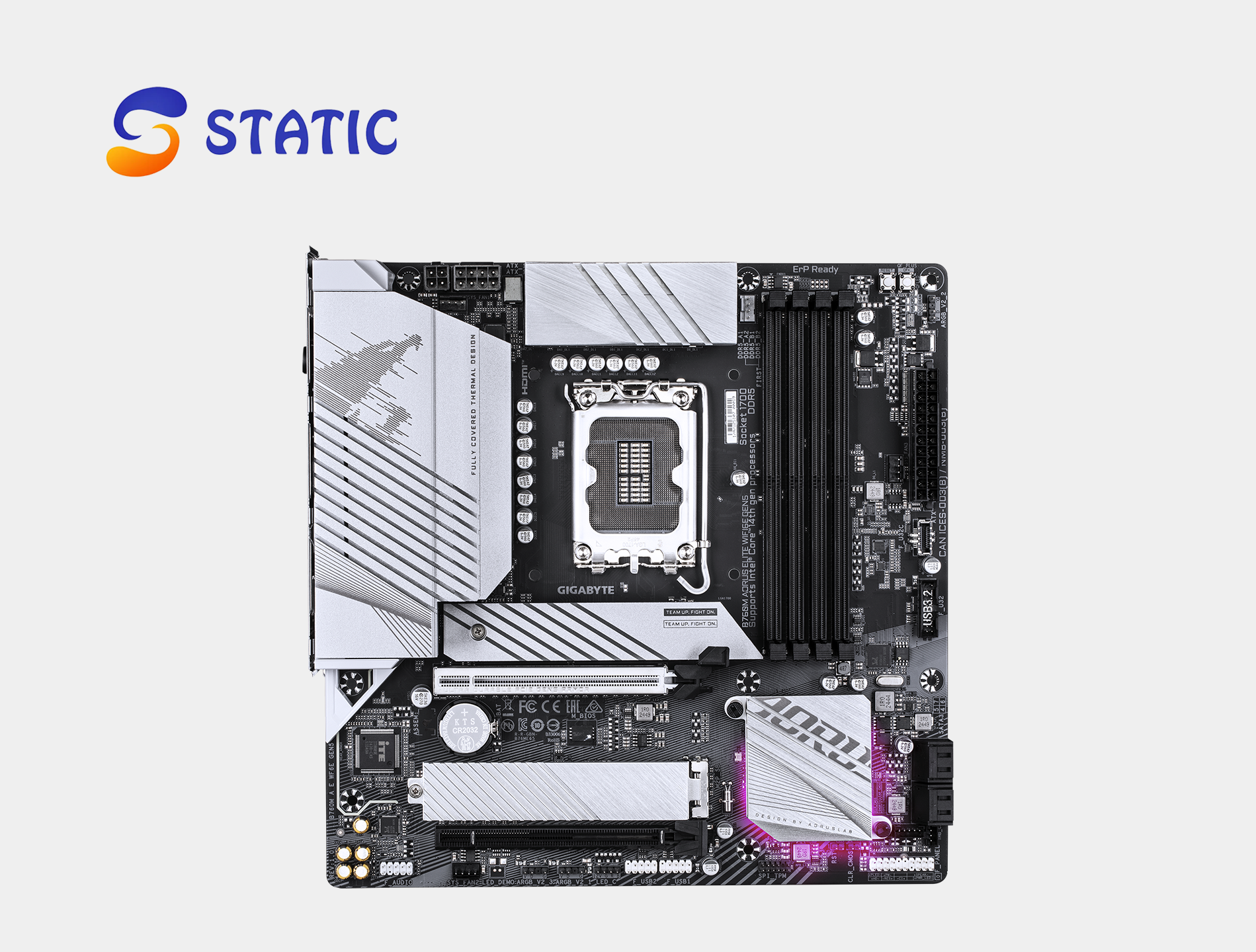

GIGABYTE B760M AORUS ELITE WIFI6E GEN5

The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is a high-performance Micro-ATX motherboard designed for gamers, creators, and PC enthusiasts who want powerful features in a compact form factor. Built on the Intel B760 chipset, this motherboard supports 12th, 13th, and 14th Gen Intel Core processors, delivering excellent performance for gaming, streaming, and productivity workloads.

With support for DDR5 memory up to 7800MHz (OC) and a maximum capacity of 256GB, the motherboard provides exceptional memory performance and future-ready upgrade potential. The dual-channel memory architecture and XMP support allow users to easily unlock high-speed RAM profiles for improved system responsiveness.

For graphics and expansion, the motherboard features a PCIe 5.0 x16 slot, enabling compatibility with the latest high-performance graphics cards and next-generation NVMe storage solutions. Additional PCIe expansion ensures flexibility for installing extra hardware such as capture cards, storage controllers, or networking cards.

Storage performance is another highlight of this GIGABYTE B760M AORUS ELITE WIFI6E GEN5. It includes two M.2 PCIe 4.0 slots for high-speed NVMe SSDs along with four SATA ports, allowing users to build fast and flexible storage configurations for both operating systems and large data libraries.

Connectivity is modern and comprehensive. The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 includes USB 3.2 Gen 2×2 Type-C, multiple high-speed USB ports, and Realtek 2.5GbE LAN for fast wired networking. Integrated Intel Wi-Fi 6E and Bluetooth 5.3 provide ultra-fast wireless connectivity and improved network stability.

For audio, the GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is equipped with the Realtek ALC1220 high-definition audio codec, delivering clear and immersive sound quality for gaming, streaming, and multimedia use.

With its robust power delivery, advanced connectivity, PCIe 5.0 support, and Wi-Fi 6E technology, the GIGABYTE B760M AORUS ELITE WIFI6E GEN5 provides a powerful and reliable platform for building a modern high-performance PC.

Why Choose GIGABYTE B760M AORUS ELITE WIFI6E GEN5?

Next-Generation Performance
Supports 12th, 13th, and 14th Gen Intel Core processors, providing excellent performance for gaming and productivity.

Ultra-Fast DDR5 Memory
Supports DDR5 memory up to 7800MHz (OC) and up to 256GB capacity, ensuring fast multitasking and future upgrade flexibility.

PCIe 5.0 Graphics Slot
Includes a PCIe 5.0 x16 slot designed for next-generation GPUs and high-speed devices.

High-Speed Storage Options
Equipped with dual PCIe 4.0 M.2 slots and four SATA ports, allowing flexible and fast storage configurations.

Advanced Networking
Integrated 2.5GbE LAN and Intel Wi-Fi 6E provide fast and stable internet connectivity for gaming and streaming.

Premium Audio Quality
Powered by the Realtek ALC1220 codec, delivering high-quality surround sound for immersive gaming and media experiences.

Modern Connectivity
Features USB 3.2 Gen 2×2 Type-C, multiple USB ports, and advanced internal connectors for modern PC builds.

CPU

Socket: LGA1700

Supported Processors:
12th / 13th / 14th Gen Intel® Core™
Intel® Pentium® Gold
Intel® Celeron®

Chipset

Intel® B760 Express Chipset

Memory

Memory Slots: 4 × DDR5 DIMM

Maximum Capacity: 256GB

Memory Speed Support:
DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 MT/s

Memory Architecture: Dual Channel

XMP Support: Yes

Graphics Output

1 × HDMI 2.1 (Max Resolution: 4096×2160@60Hz)

1 × DisplayPort 1.2 (Max Resolution: 4096×2304@60Hz)

Audio

Audio Codec: Realtek® ALC1220

Channels: 2 / 4 / 5.1 / 7.1 Channel

Additional Features: Optical S/PDIF Out Support

LAN

LAN Controller: Realtek® 2.5GbE LAN

Wireless

Wi-Fi: Intel® Wi-Fi 6E AX210 (2.4 / 5 / 6 GHz)

Bluetooth: Bluetooth 5.3

Expansion Slots

1 × PCIe 5.0 x16 slot (CPU)

1 × PCIe 4.0 x16 slot (x4 mode)

Storage

M.2 Slots: 2 × PCIe 4.0 NVMe

SATA Ports: 4 × SATA 6Gb/s

RAID Support: RAID 0 / 1 / 5 / 10

USB Ports

Rear USB:

1 × USB Type-C (USB 3.2 Gen 2×2)
1 × USB 3.2 Gen 2 Type-A
3 × USB 3.2 Gen 1
4 × USB 2.0

Internal USB Headers:

1 × USB Type-C (USB 3.2 Gen 2)
1 × USB 3.2 Gen 1
2 × USB 2.0

Internal Connectors

24-pin ATX Power

8-pin + 4-pin CPU Power

3 × System Fan Headers

3 × Addressable RGB Headers

1 × RGB Header

2 × M.2 Slots

4 × SATA Ports

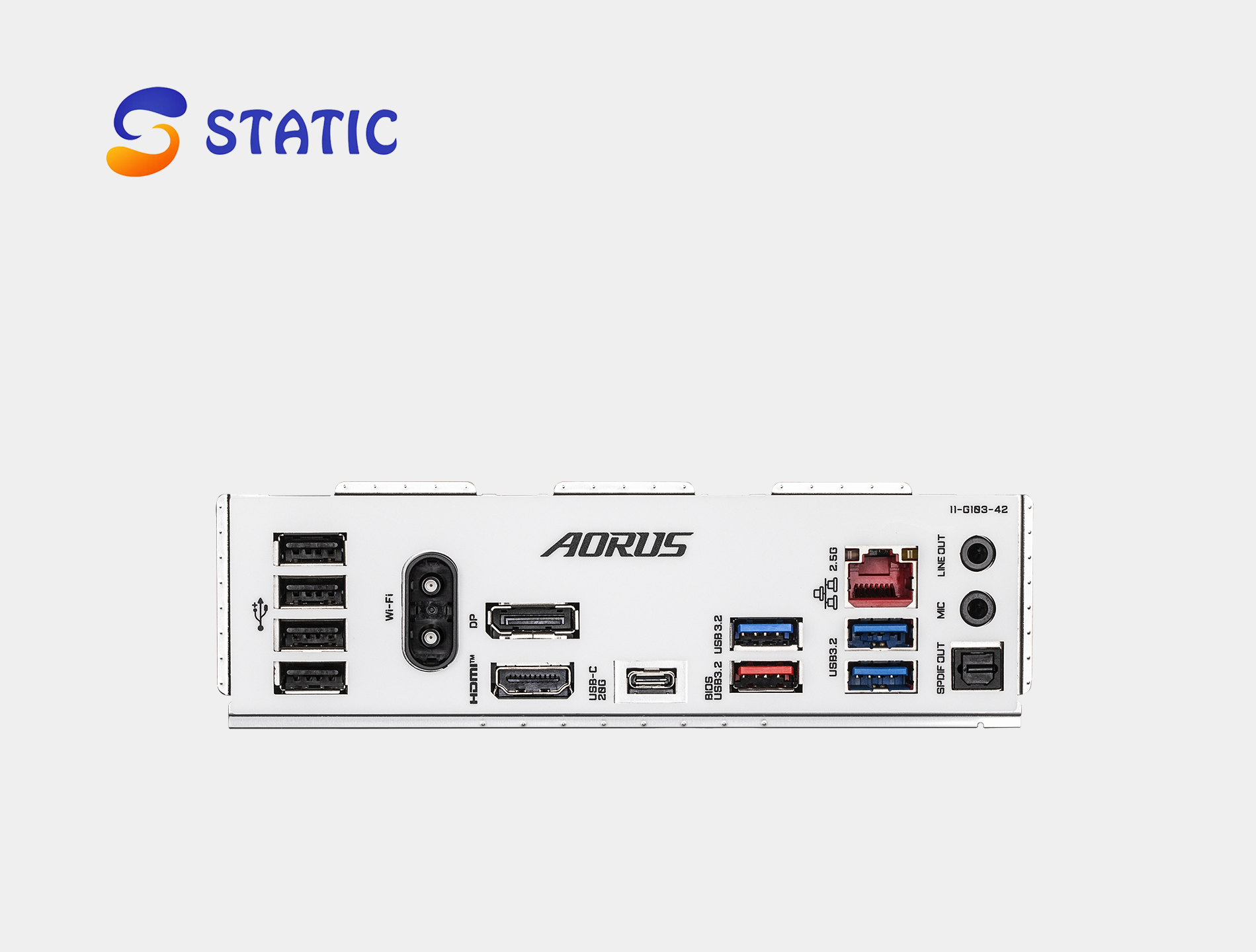

Rear I/O Ports

USB Type-C

USB Type-A

HDMI

DisplayPort

RJ-45 LAN

Optical S/PDIF

Audio Jacks

BIOS

256 Mbit Flash
AMI UEFI BIOS

Operating System

Windows 11 64-bit

Windows 10 64-bit

Form Factor

Micro-ATX
24.4 × 24.4 cm

———————————————————————————————————–
