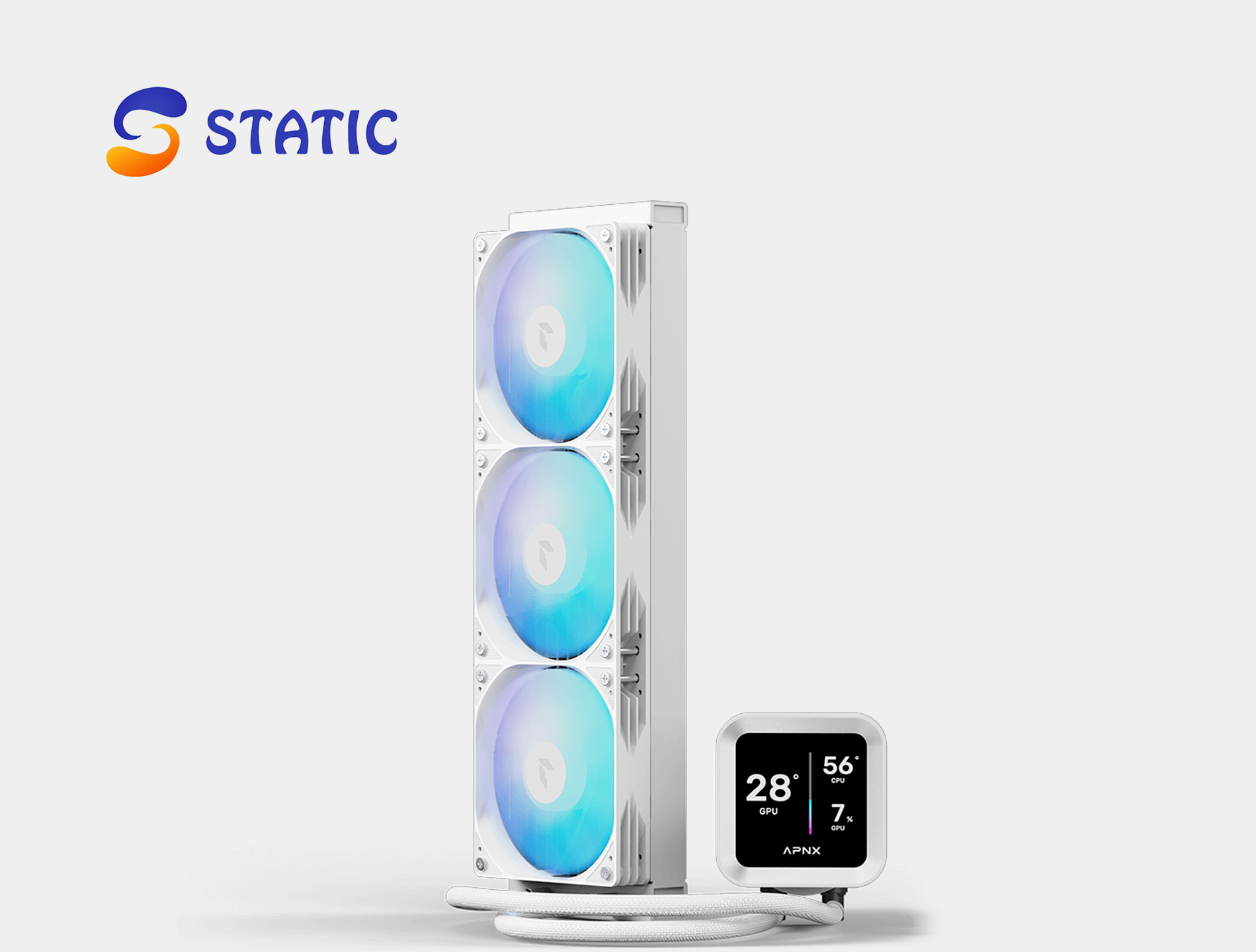

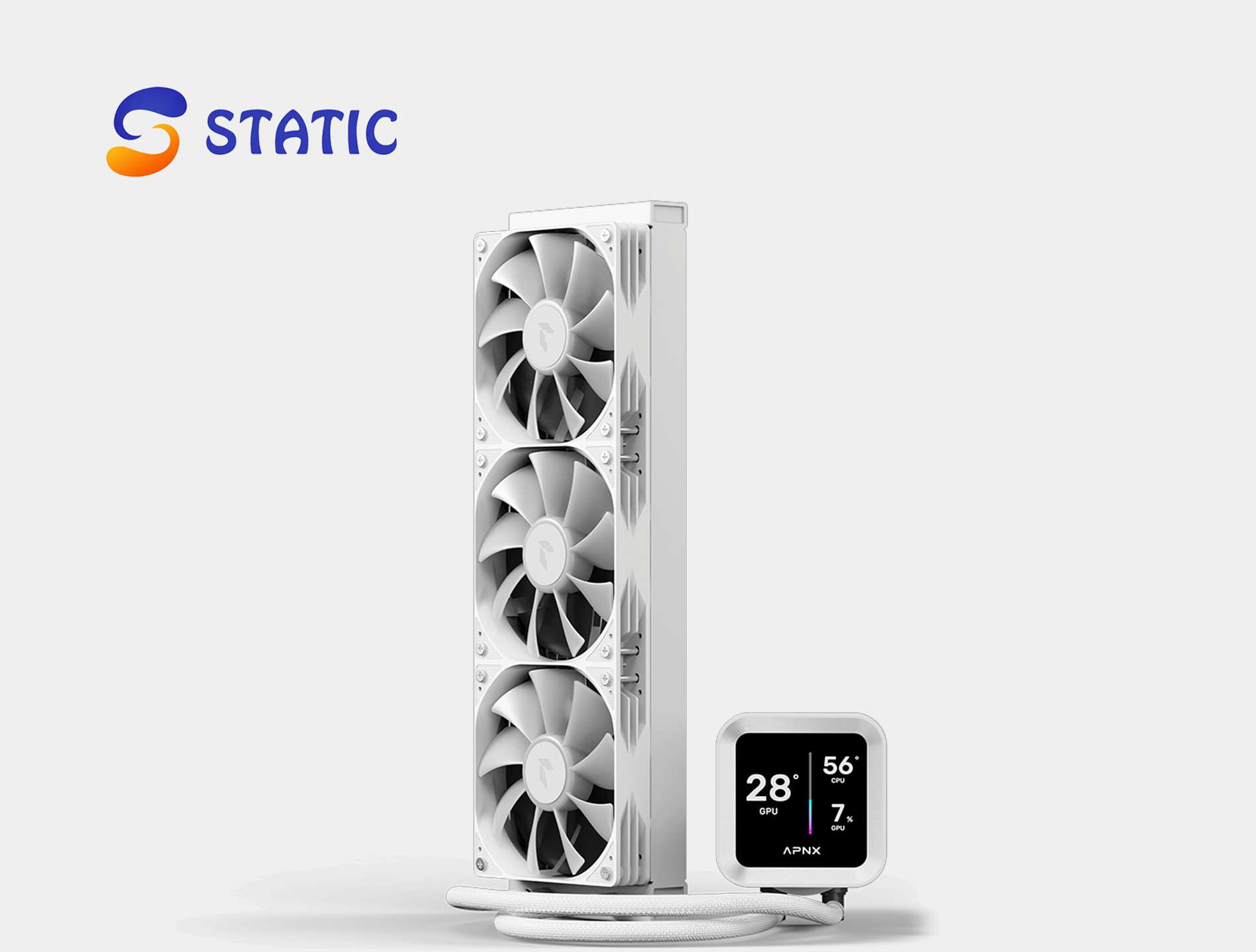

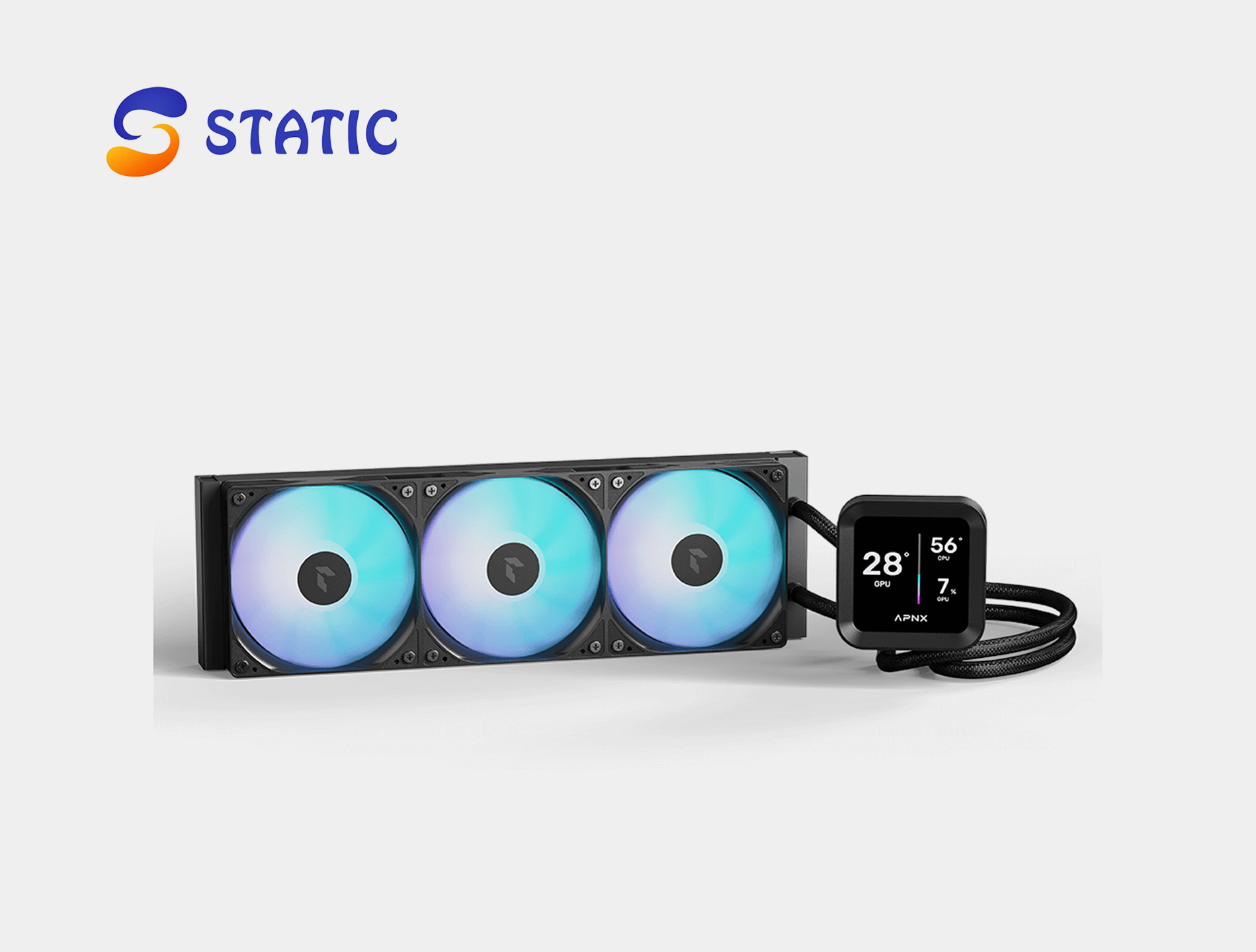

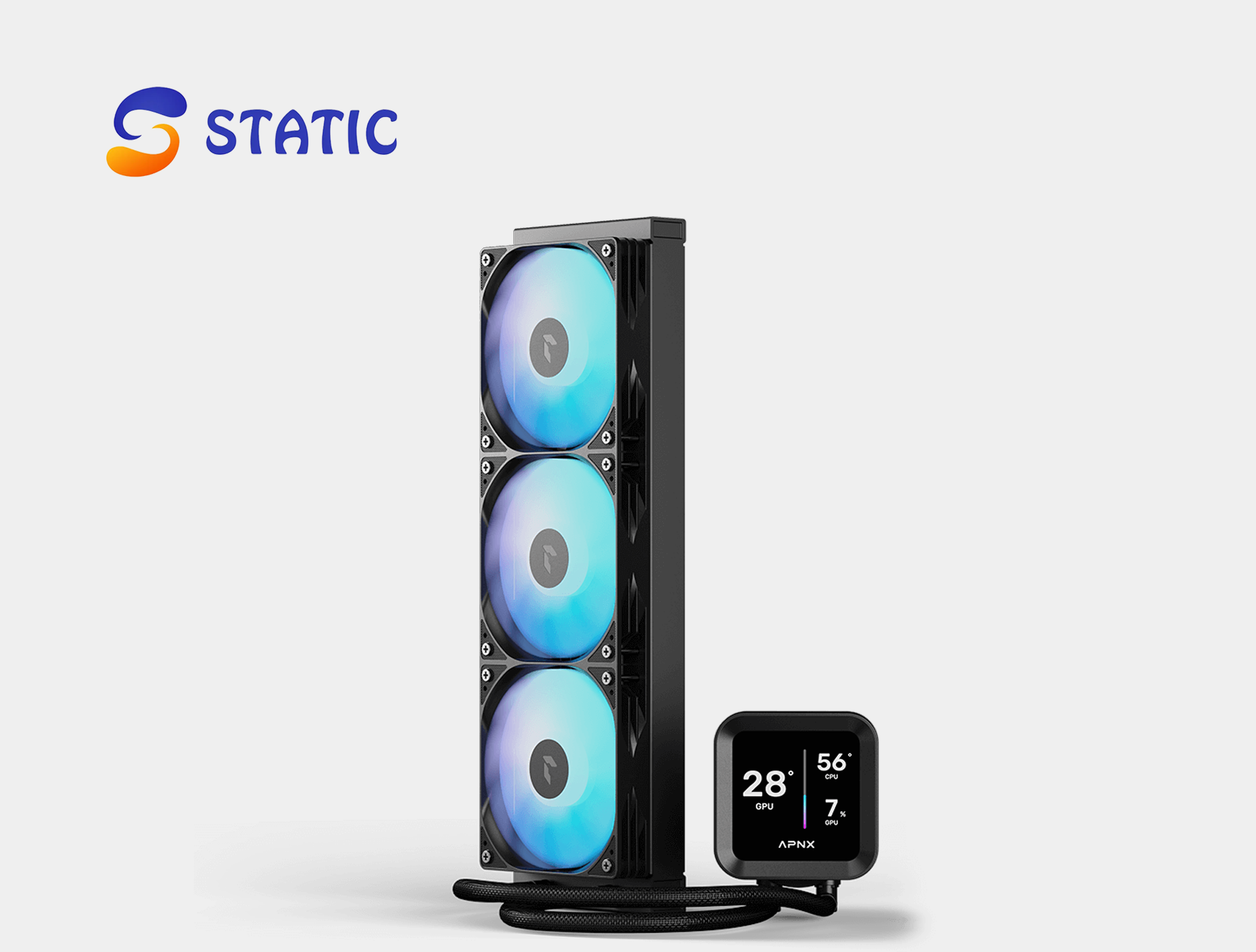

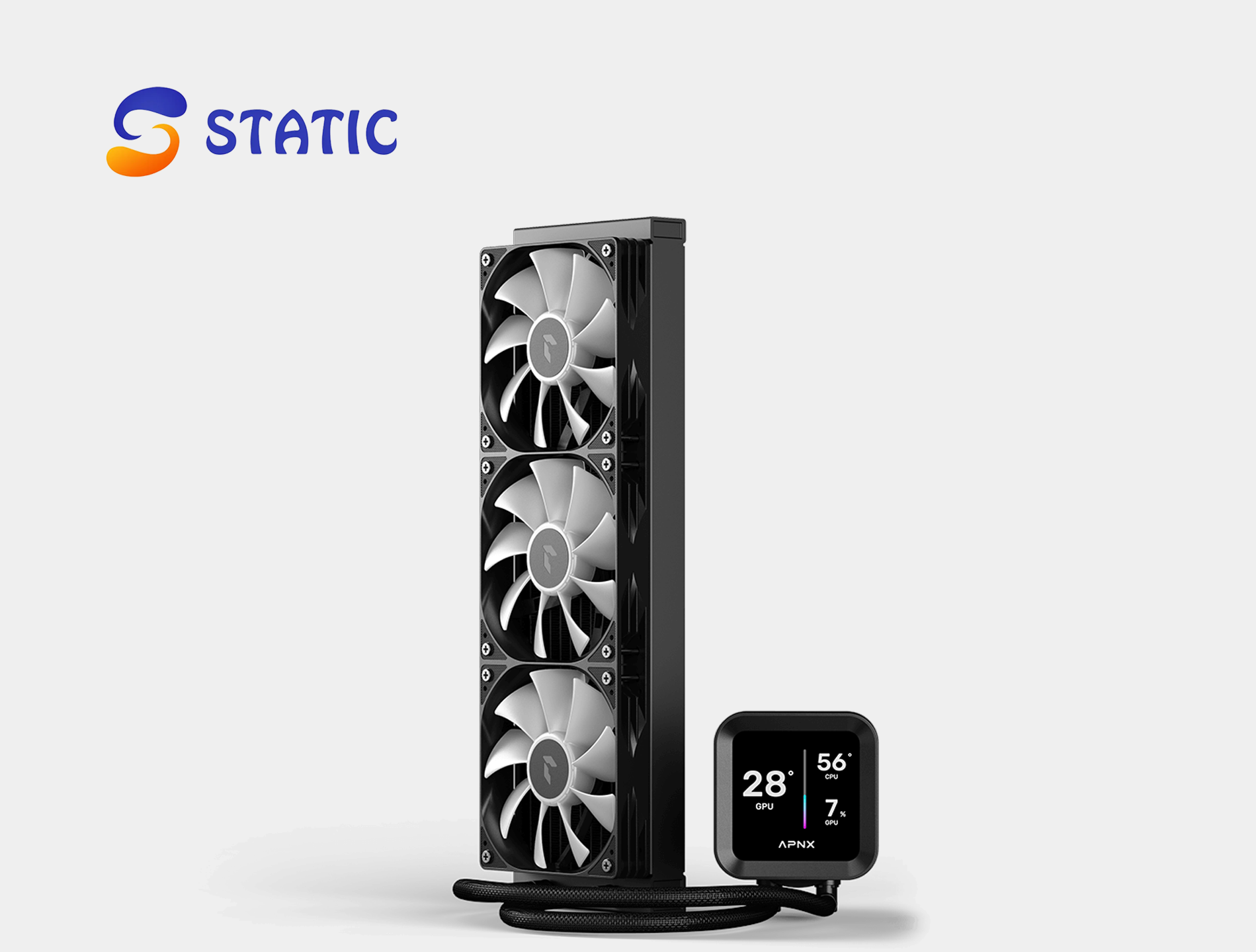

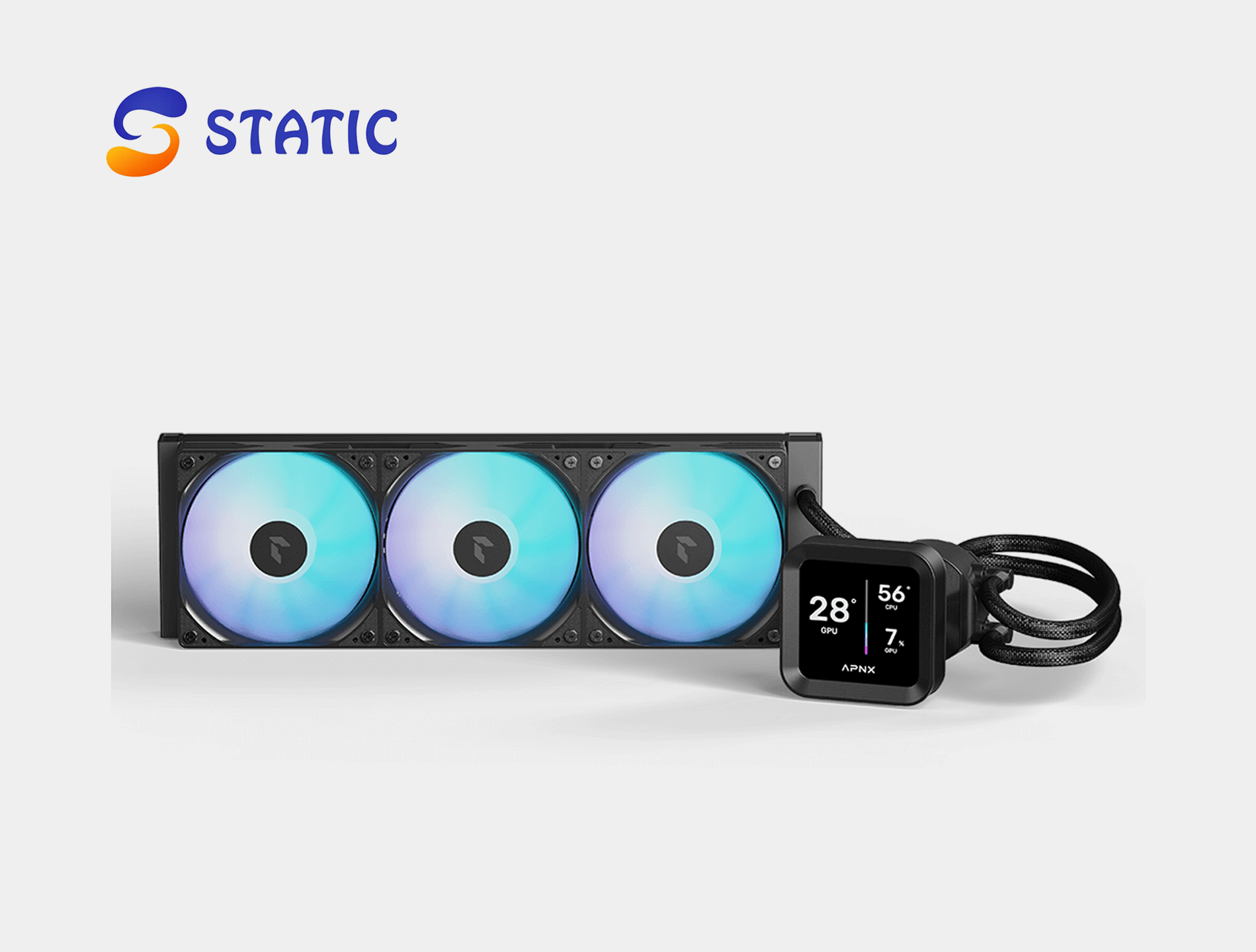

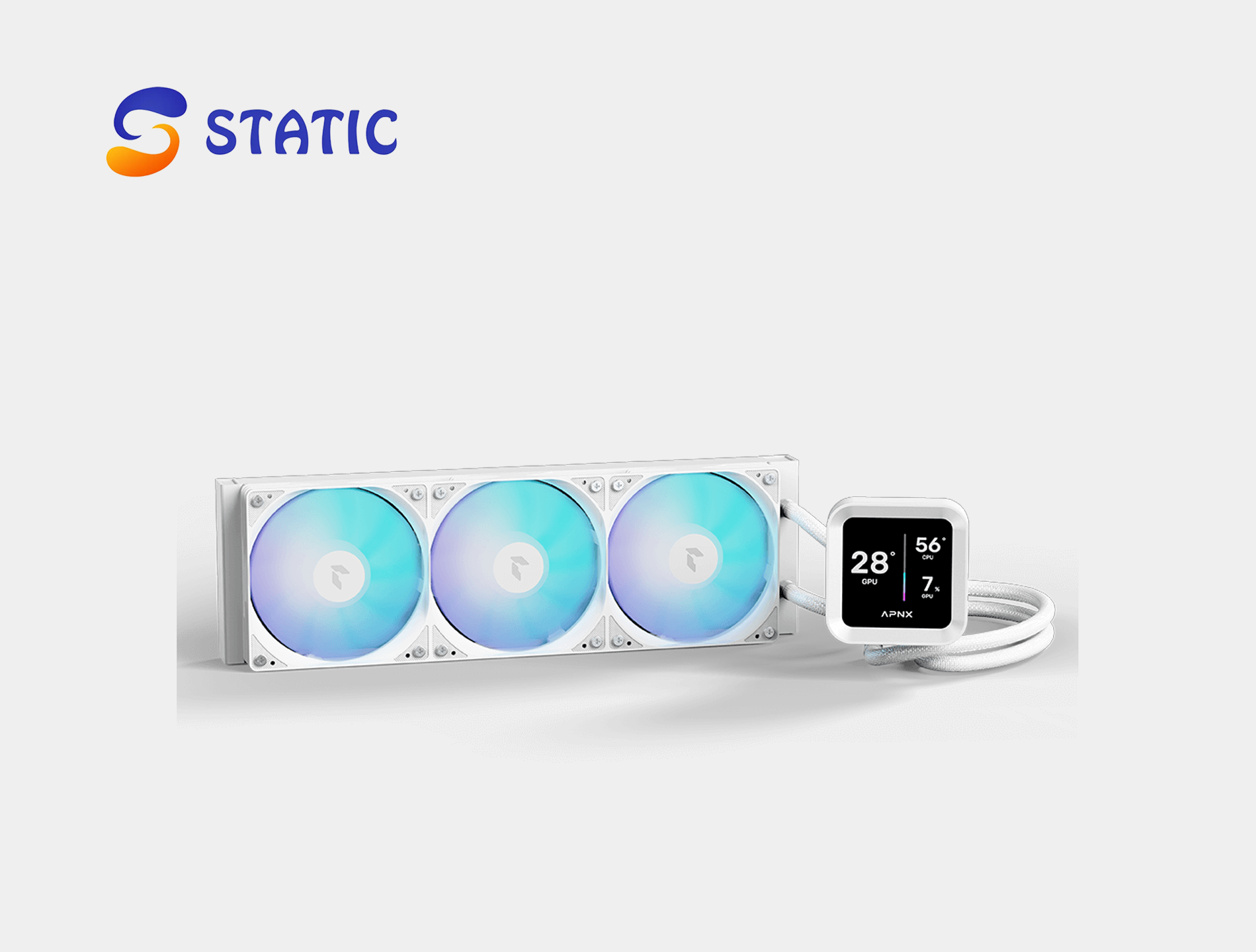

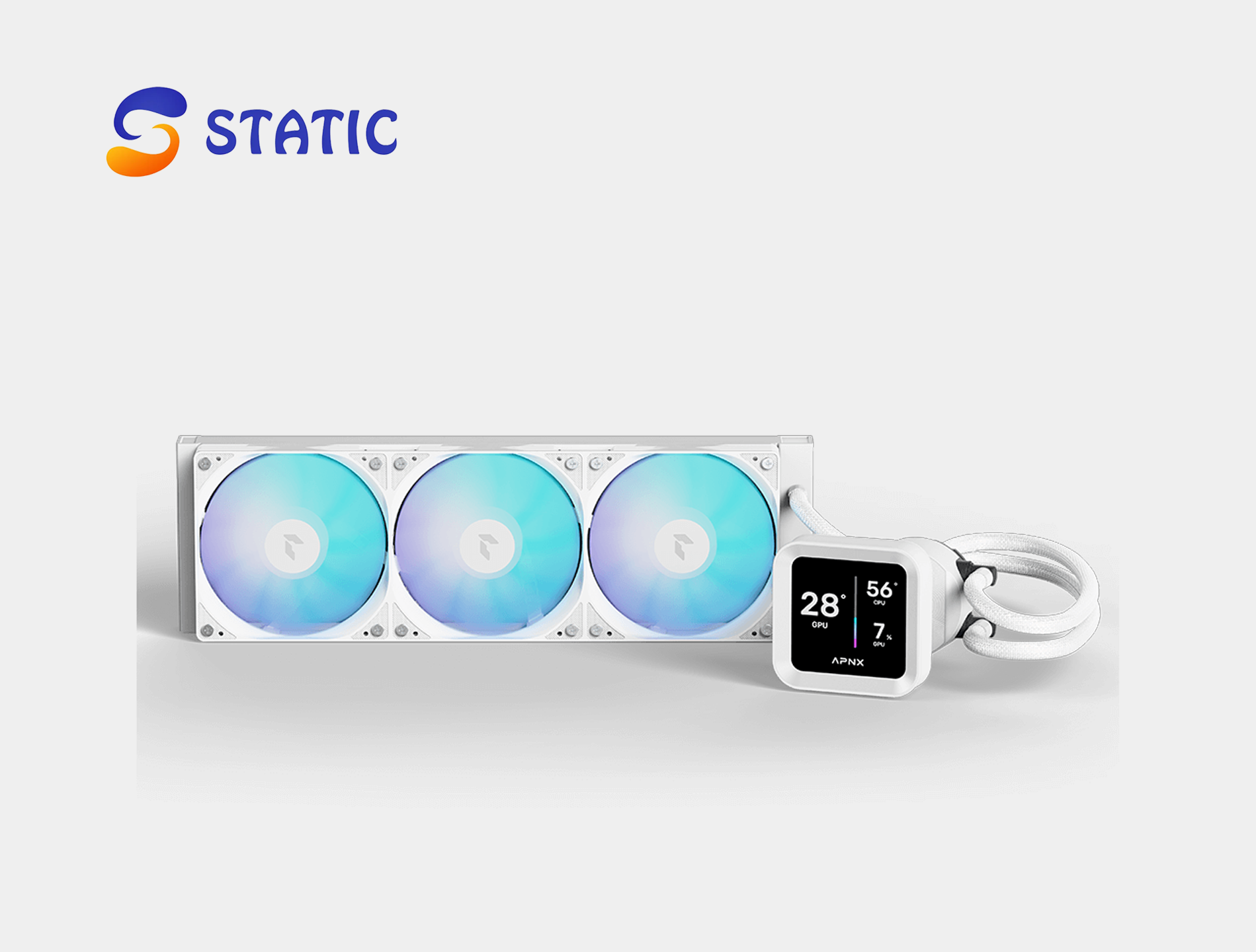

The APNX LC1-D 360 LCD is a high-performance all-in-one liquid CPU cooler designed for powerful gaming PCs and high-end workstations. Featuring a large 360mm radiator, an impressive 320W TDP cooling capacity, and a premium copper cold plate, the LC1-D 360 delivers efficient thermal performance for demanding Intel and AMD processors.

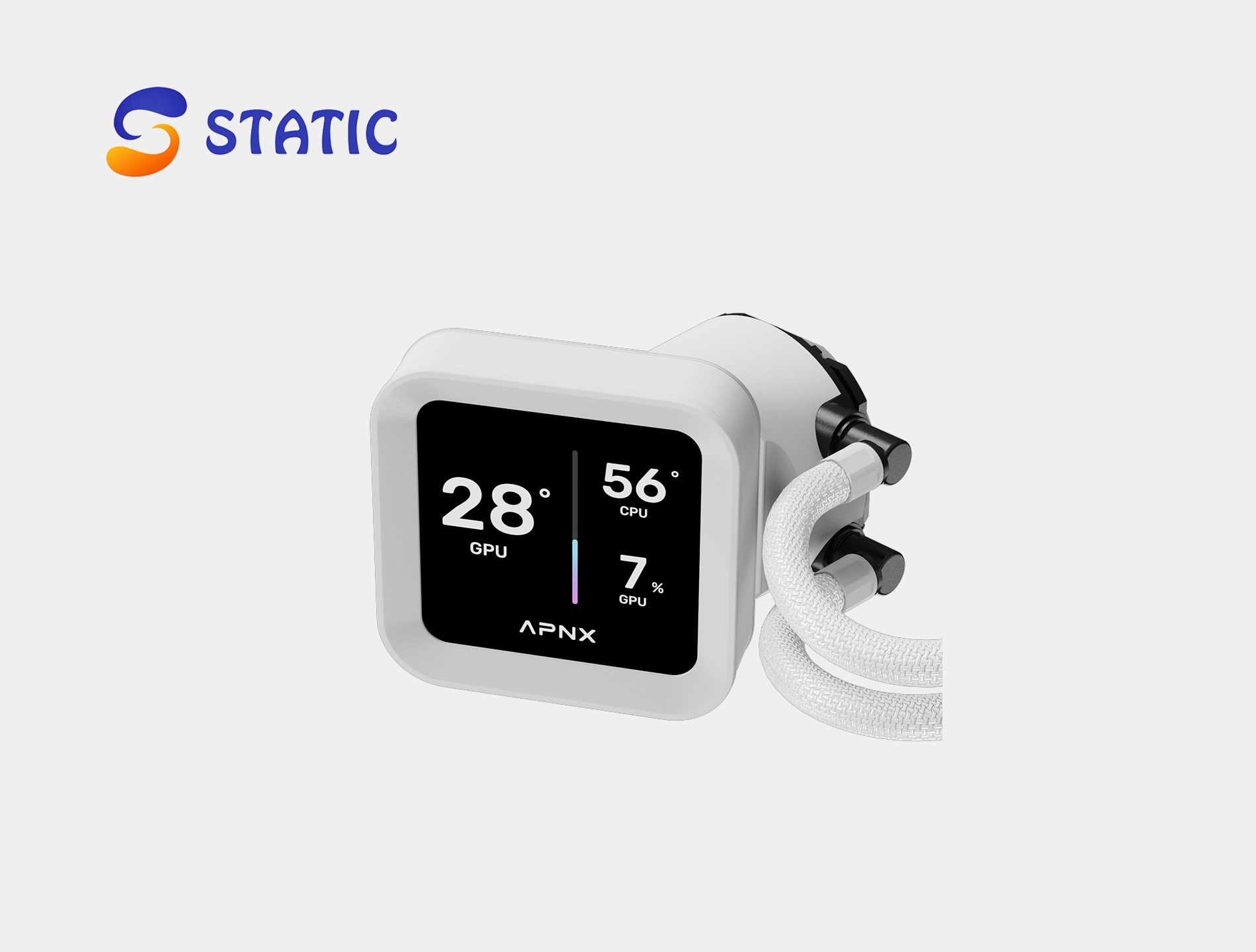

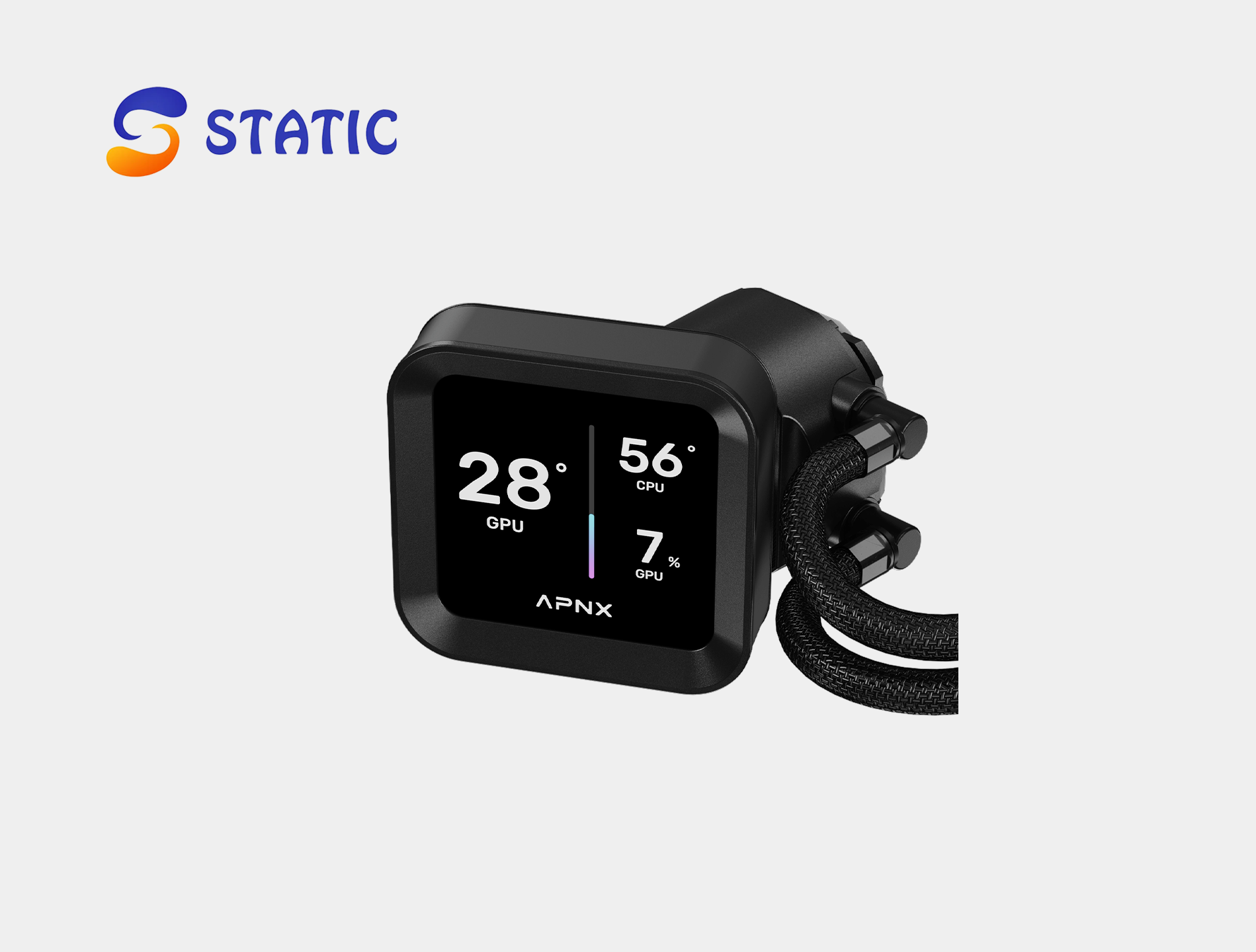

One of the standout features of the APNX LC1-D 360 is its integrated 3.95-inch IPS LCD display. With a sharp 480 × 480 resolution and 350 cd/m² brightness, the display can be customized through software and supports adjustable orientation, allowing users to personalize their PC build with system information, images, or other supported visual content.

The cooler features a corrosion-resistant aluminum alloy radiator measuring 394 × 120 × 27 mm, paired with three 120mm ARGB PWM fans. Operating between 600 and 1800 RPM, the fans deliver up to 81.5 CFM of airflow and 2.3 mmH₂O static pressure per fan, providing strong cooling performance for demanding gaming, rendering, streaming, and multitasking workloads.

At the heart of the cooling system is a high-performance pump with speeds ranging from 600 to 3000 RPM. The pump uses a durable ceramic bearing and produces a low noise level of just 18 dB(A), helping maintain efficient and reliable cooling while keeping system noise under control.

With full support for Intel LGA 1851, 1700, 1200, and 115X sockets, alongside AMD AM5 and AM4 platforms, the APNX LC1-D 360 offers excellent compatibility with modern and previous-generation systems. Combined with customizable Addressable RGB lighting and a premium LCD screen, it is an excellent choice for users who want powerful cooling and a visually impressive PC setup.

Why Choose APNX LC1-D 360 LCD Liquid Cooler

The APNX LC1-D 360 LCD is built for users who want more than standard CPU cooling. Its combination of a large 360mm radiator, 320W TDP cooling capacity, customizable IPS LCD display, and ARGB lighting makes it an excellent solution for high-performance and showcase PC builds.

The 3.95-inch IPS LCD screen is one of its biggest advantages. With a 480 × 480 pixel resolution, 350 cd/m² brightness, and software-adjustable orientation, it adds a premium level of customization to your system while allowing the cooler to match different case layouts and build styles.

For cooling performance, the LC1-D 360 uses a copper cold plate and a corrosion-resistant aluminum radiator to efficiently transfer and dissipate heat. Its powerful pump can reach up to 3000 RPM, while the three PWM fans provide strong airflow when the system is under heavy load.

Each 120mm fan delivers up to 81.5 CFM of airflow and 2.3 mmH₂O static pressure, making the radiator capable of handling demanding processors during intensive gaming, video editing, 3D rendering, and other CPU-heavy tasks. PWM control also allows the fan speed to adjust dynamically based on cooling requirements.

The cooler also features Addressable RGB lighting across all three fans, allowing you to add synchronized lighting effects to your gaming setup. With broad Intel and AMD socket support, durable ceramic and Hydro Bearing technologies, and a 30,000-hour MTBF rating, the APNX LC1-D 360 LCD delivers an excellent balance of performance, customization, and reliability.

Specifications

General

• Product Name: APNX LC1-D
• Model: LC1-D 360 BK / LC1-D 360 WH
• Cooler Type: 360mm AIO Liquid CPU Cooler
• Color Options: Black / White
• MTBF: 30,000 Hours

LCD Display

• Display Size: 3.95-inch
• Panel Type: IPS
• Resolution: 480 × 480 Pixels
• Brightness: 350 cd/m²
• Refresh Rate: 20Hz
• Orientation: Software Adjustable
• Supported Operating System: Windows 7 64-bit or Later

Radiator & Pump

• Block Material: Copper
• Radiator Material: Corrosion-Resistant Aluminum Alloy
• Radiator Dimensions: 394 × 120 × 27 mm
• Cooling Capacity: Up to 320W TDP
• Pump Speed: 600–3000 RPM ±10%
• Pump Rated Voltage: DC 12V
• Pump Rated Power: 4.2W
• Pump Noise Level: 18 dB(A)
• Pump Bearing Type: Ceramic Bearing

Fan Performance

• Fan Configuration: 3 × 120mm ARGB PWM Fans
• Fan Dimensions: 360 × 120 × 25.4 mm
• Fan Speed: 600–1800 RPM ±10%
• Fan Connector: 4-Pin PWM
• Starting Voltage: DC 6V
• Rated Voltage: DC 12V
• Rated Current: 1A
• Rated Power: 12W
• Maximum Air Pressure: 2.3 mmH₂O Per Fan
• Maximum Airflow: 81.5 CFM Per Fan
• Maximum Noise Level: 38 dB(A)
• Fan Bearing Type: Hydro Bearing

RGB Lighting

• LED Type: Addressable RGB
• LED Rated Voltage: DC 5V
• LED Rated Power: 1.44W × 3
• LED Connector: 3-Pin (+5V-D-G)

Compatibility

• Intel: LGA 1851 / 1700 / 1200 / 115X
• AMD: AM5 / AM4

Features

• 3.95-inch IPS LCD Display
• 480 × 480 Pixel Resolution
• Software-Adjustable Screen Orientation
• 320W TDP Cooling Capacity
• 360mm Aluminum Radiator
• Copper Cold Plate
• High-Speed Pump up to 3000 RPM
• Ceramic Pump Bearing
• 3 × 120mm PWM Fans
• Up to 81.5 CFM Airflow Per Fan
• Addressable RGB Lighting
