Product Name

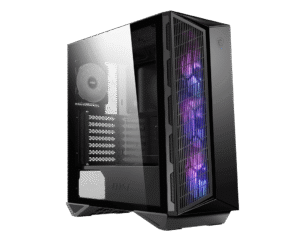

Master X II Pro
Dimensions
460x215x488mm (LxWxH)
Motherboard Support
E-ATX, ATX, M-ATX, Mini-ITX
Drive Bays
HDD Cage (Bottom): 3.5″ x1
HDD Cage (Top): 3.5″ & 2.5″ Combo x1
SSD Bracket: 2.5″ x2
Fan Support
Top: 120mm x3 or 140mm x3
Front: 120mm x3 or 140mm x3
MB: 120mm x2 (EATX MB Width ≤280mm)
Rear: 120mm x1
PSU Length Limitation
220mm
CPU Cooler Clearance
165mm
Material
Steel
Expansion Slots
7 Standard Slots
Power Supply
Standard PS2
ATX PSU
I/O Panel
USB 3.0 x 1
USB 2.0 x 2
HD Audio
Radiator Support
Front: 360
Top: 360
Rear. 120
GPU Length Limitation
280mm
(Fan on MB Panel)
410mm
(No Fan on MB Panel)
