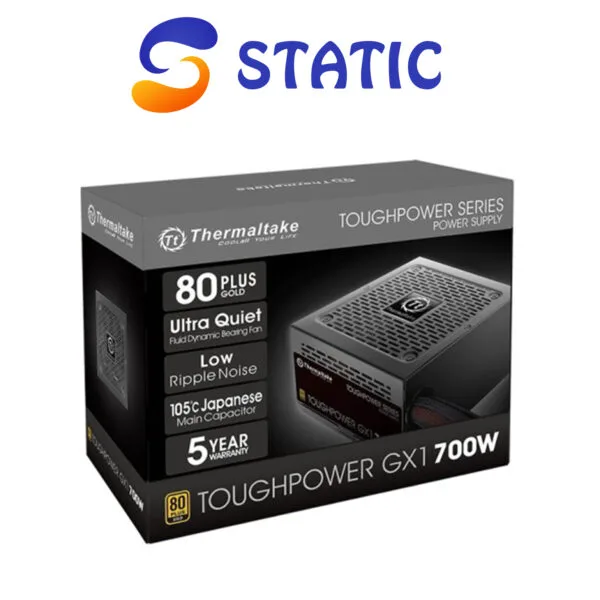

Thermaltake Toughpower GX1 700W A 80 PLUS GOLD Power Supply

2.500,00 EGP

Out of stock

Category: Brand:
Brand
Thermaltake
Model
PS-TPD-0700NNFAGU-1
Series
Toughpower GX1

Details

Type
ATX 12V v2.4 and EPS v2.92
Maximum Power
700W
Fans
1 x 120mm fluid dynamic bearing fan
PFC
Active
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
8
Power Good Signal
100-500 msec
Hold-up Time
> 12msec at 80% of full load
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
100 – 240 V
Input Frequency Range
47 – 63 Hz
Input Current
10A max
Output
+3.3V@22A, +5V@22A, +12V@58A, -12V@0.3A, +5VSB@2.5A
MTBF
>100,000 Hours
Approvals
CE / cTUVus / TUV / FCC / BSMI / EAC / S-Mark
Dimensions
5.91″ x 3.39″ x 5.51

Features

Connectors
1 x 24pin Main Connector
1 x ATX 12V 4+4pin connector
8 x SATA
4 x 6+2pin PCI-E
4 x Peripheral connectors
1 x FDD
Features
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GX1 saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Ultra Quiet 120mm Fluid Dynamic Bearing Fan
Featuring an 120mm Fluid Dynamic Bearing Fan to kept friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.

Low Ripple Noise
The maximum ripple/noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

Sophisticatedly Designed Exterior Shroud
Sophisticatedly designed exterior shroud stimulates the aesthetic of your power supply while protecting the inner components from a direct contact.

Multiple Connectors
Comes with multiple connectors that power the system at an advantageous voltage and make cable installation an easy task.

High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail and DC to DC design ensure a stable and reliable supply to other PC components.

High Quality Japanese 105°C/221°F Main Capacitor
