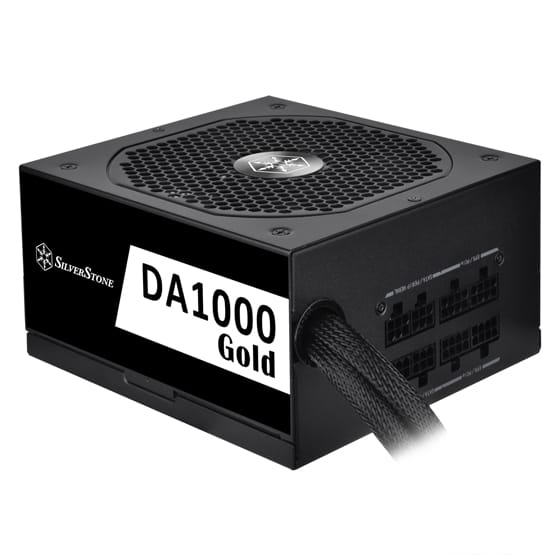

SilverStone DA1000 Gold semi-modular ATX
Product No: SST-DA1000-GH
Model (safety certification): SST-AX1000HCBR-A
Color: Black (lead-free paint)
Max. DC Output: 1000W
Power density: 484W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 83.33A | 3A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±2.5% | ±2.5% |
| Ripple(mVp-p) | 50mV | 50mV | 70mV | 50mV | 80mV |
Combined +3.3V & +5V
100W
Combined +12V
999.66W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation

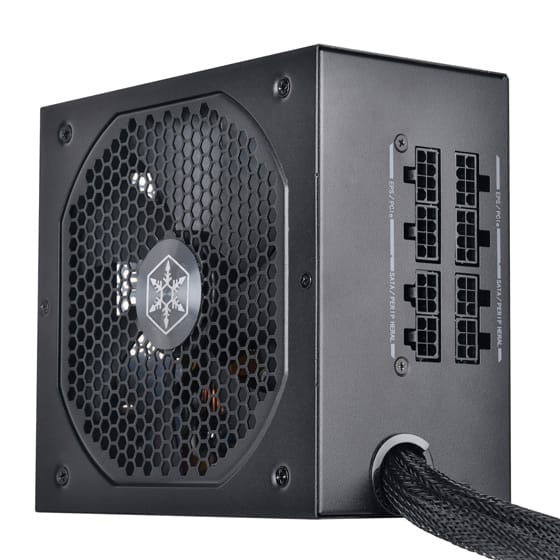

Connectors
1 x 24 / 20-Pin motherboard connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector
1 x 8-Pin EPS & 1 x 8 / 4-Pin ATX 12V connector
8 x 8 / 6-Pin PCIe connector
12 x SATA connector
4 x 4-Pin Peripheral connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 160mm (D)
5.91″ (W) x 3.39″ (H) x 6.3″ (D)
5.91″ (W) x 3.39″ (H) x 6.3″ (D)
Weight: 2.24 kg
