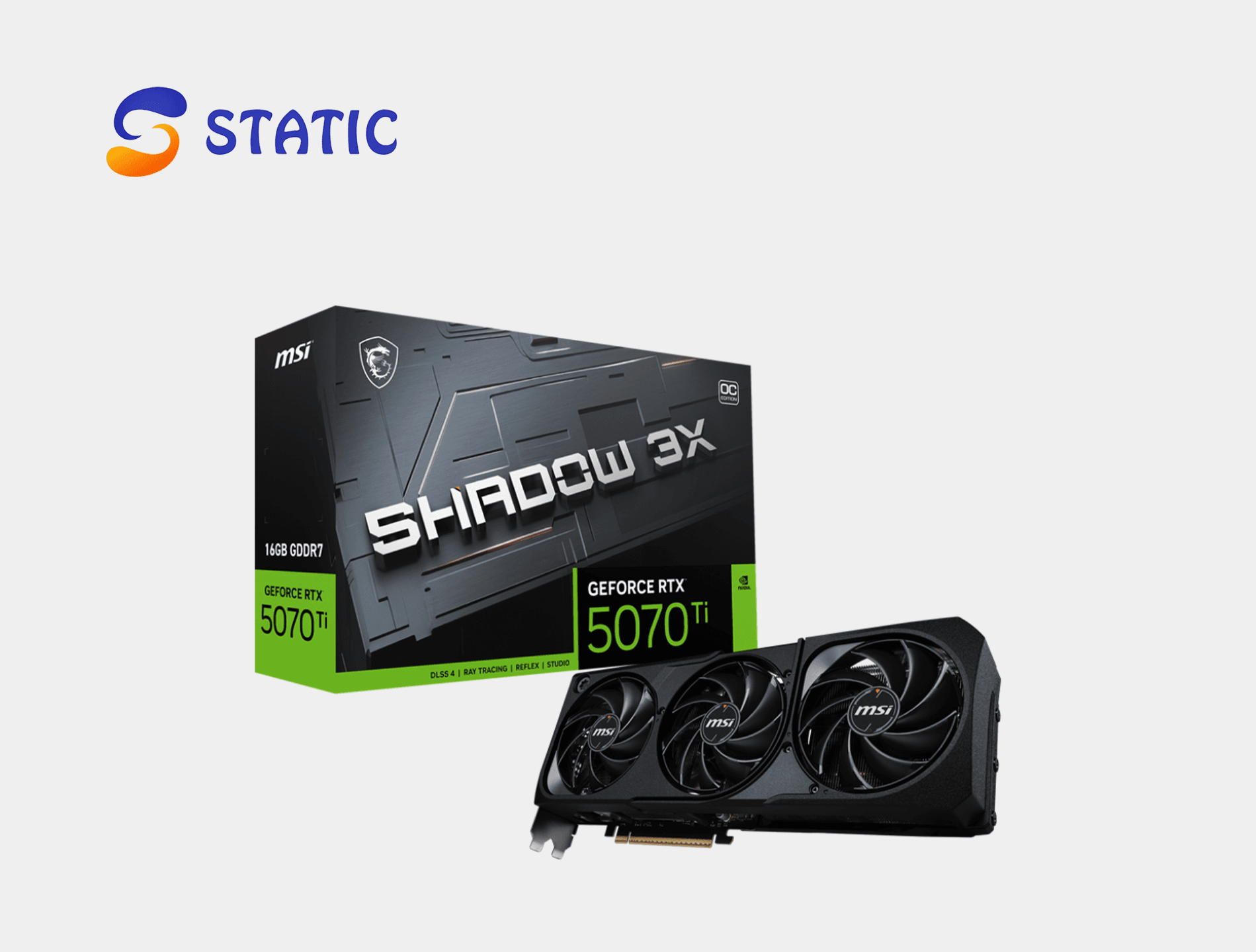

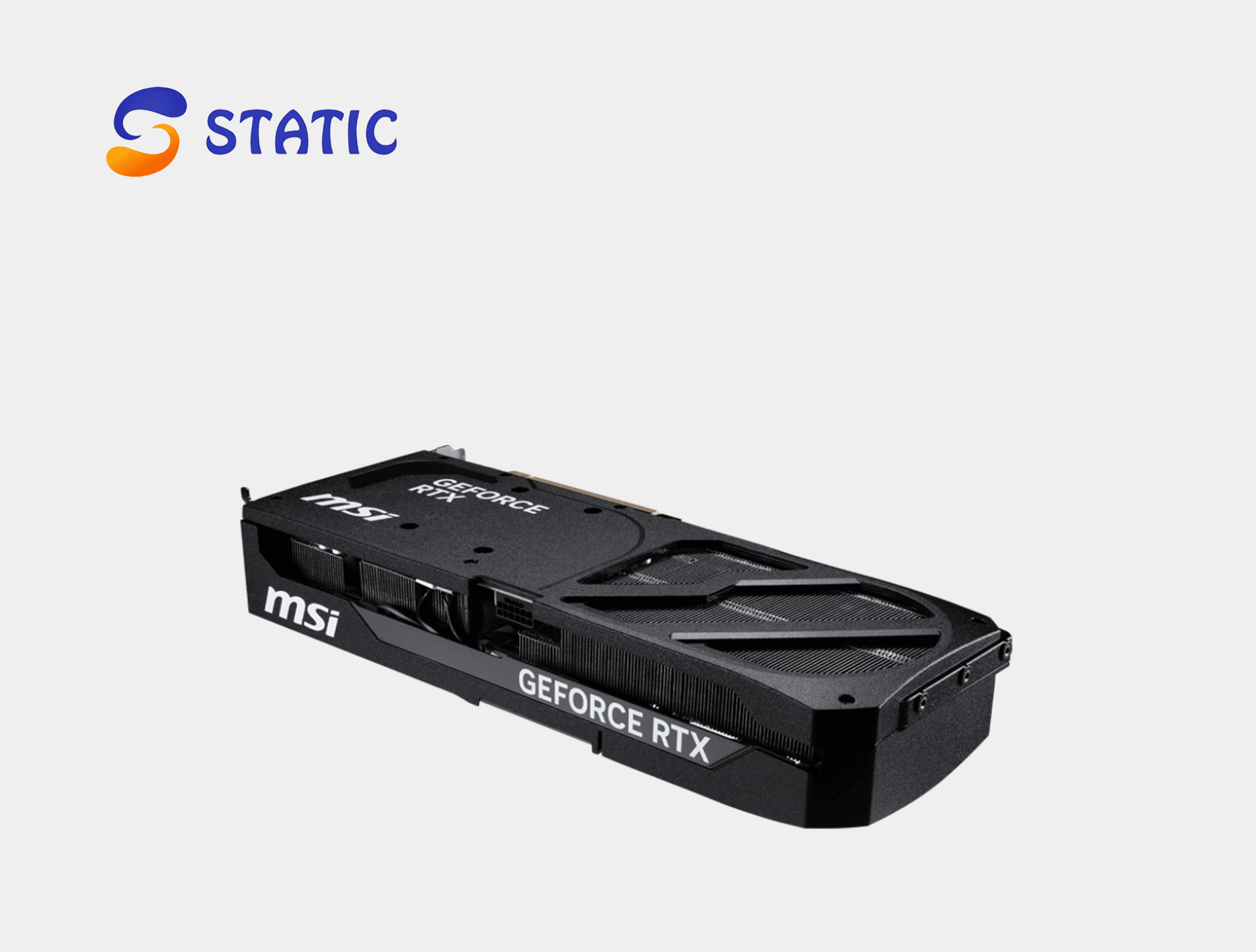

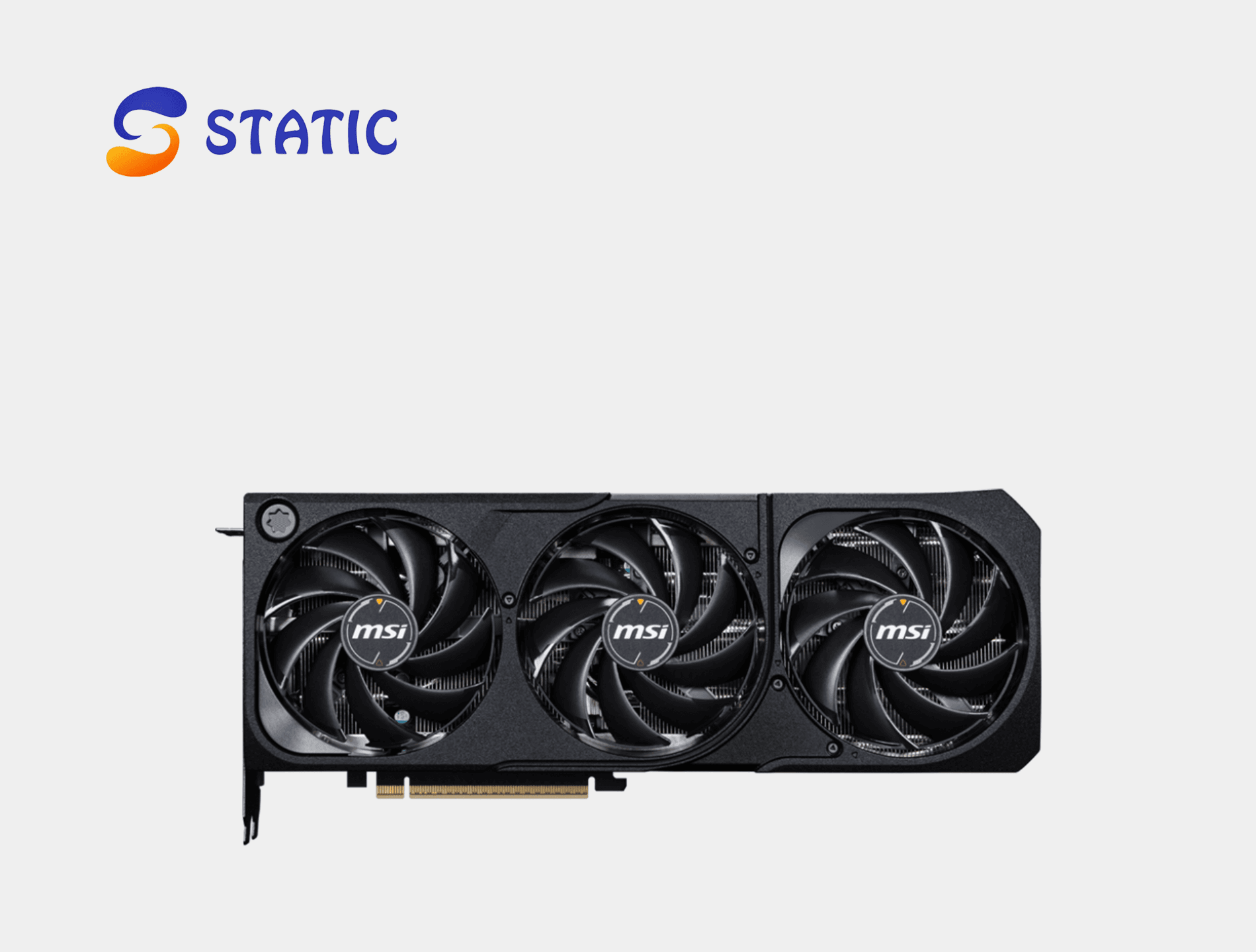

MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC

General

Marketing Name: GeForce RTX™ 5070 Ti 16G SHADOW 3X OC

Model Name: G507T-16S3C

Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070 Ti

Interface: PCI Express® Gen 5

Clocks & Performance

Core Clocks:

Extreme Performance: 2497 MHz (via MSI Center)

Boost Clock: 2482 MHz

CUDA® Cores: 8960 Units

Memory

Memory Size: 16GB

Memory Type: GDDR7

Memory Speed: 28 Gbps

Memory Bus: 256-bit

Display & Output

Output Ports:

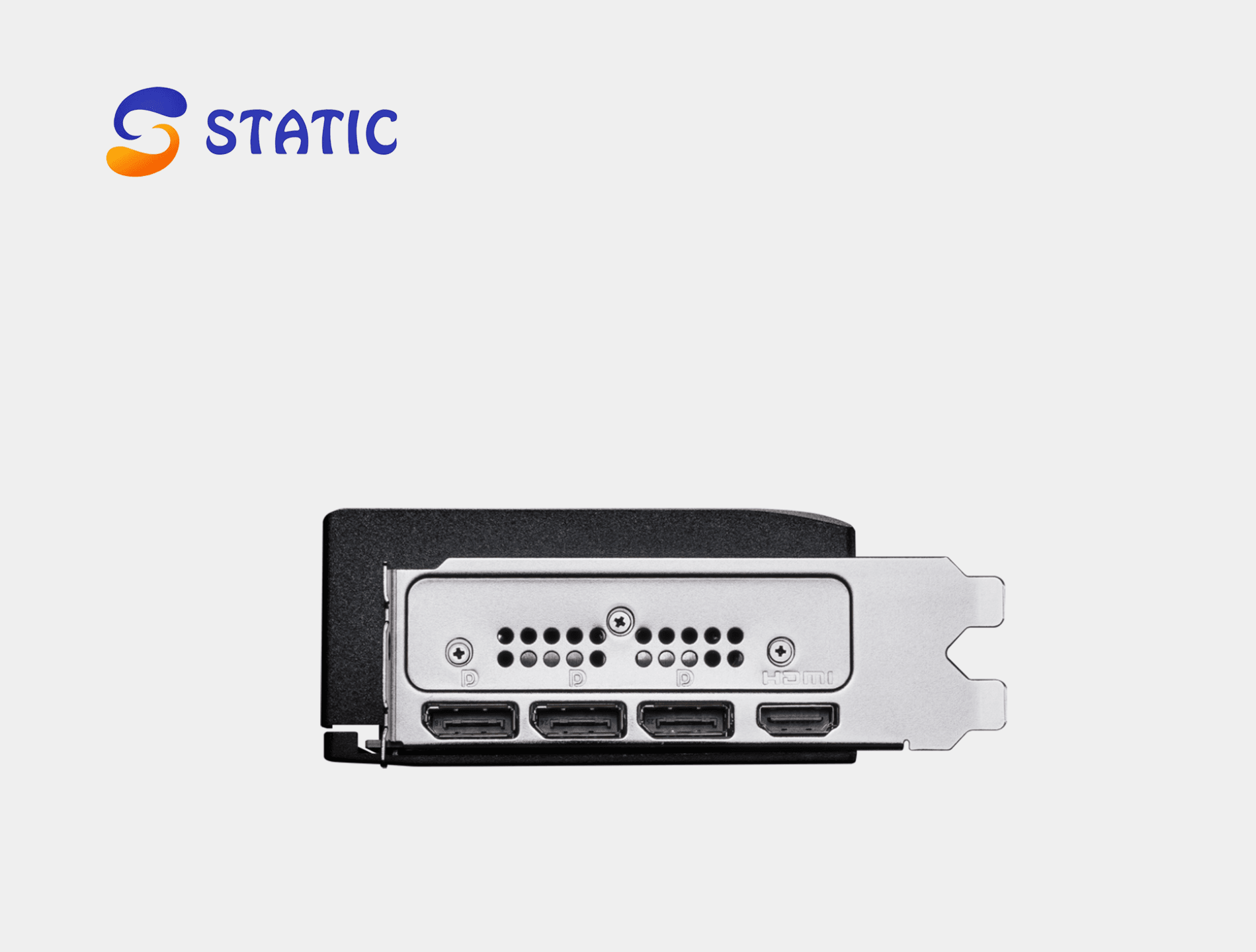

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (HDMI™ 2.1b)

MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC

HDMI™ Features:
Up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR

HDCP Support: Yes

Maximum Displays: 4

Digital Maximum Resolution: 7680 x 4320

Technologies

DirectX Support: 12 Ultimate

OpenGL Support: 4.6

G-SYNC® Technology: Yes

Power & Requirements

Power Consumption: 300 W

Power Connectors: 1 × 16-pin
(ATX 3.1 PSU recommended)

Recommended PSU: 750 W

Physical Characteristics

Card Dimensions: 303 × 121 × 49 mm

Weight:

Card: 994 g

Package: 1474 g
