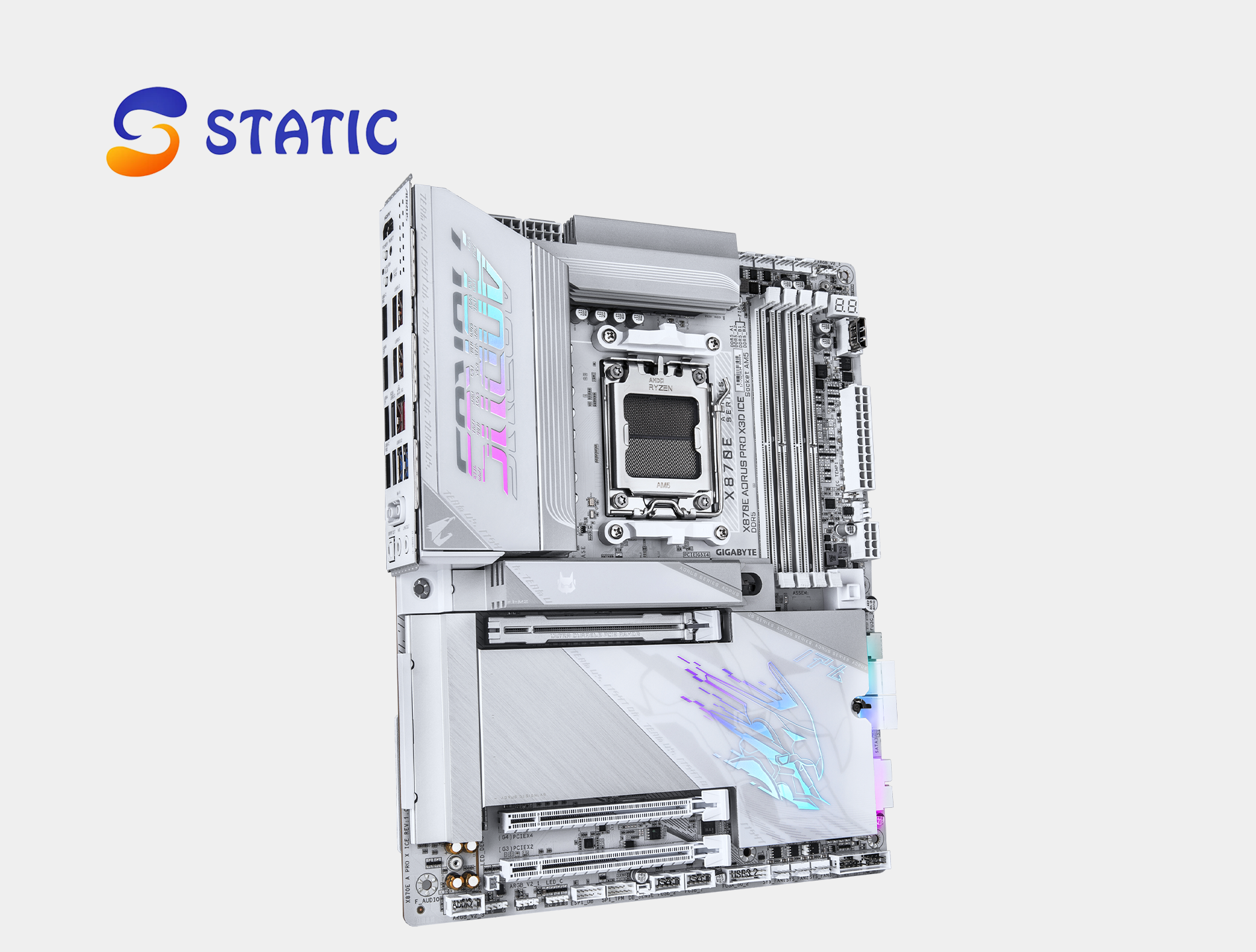

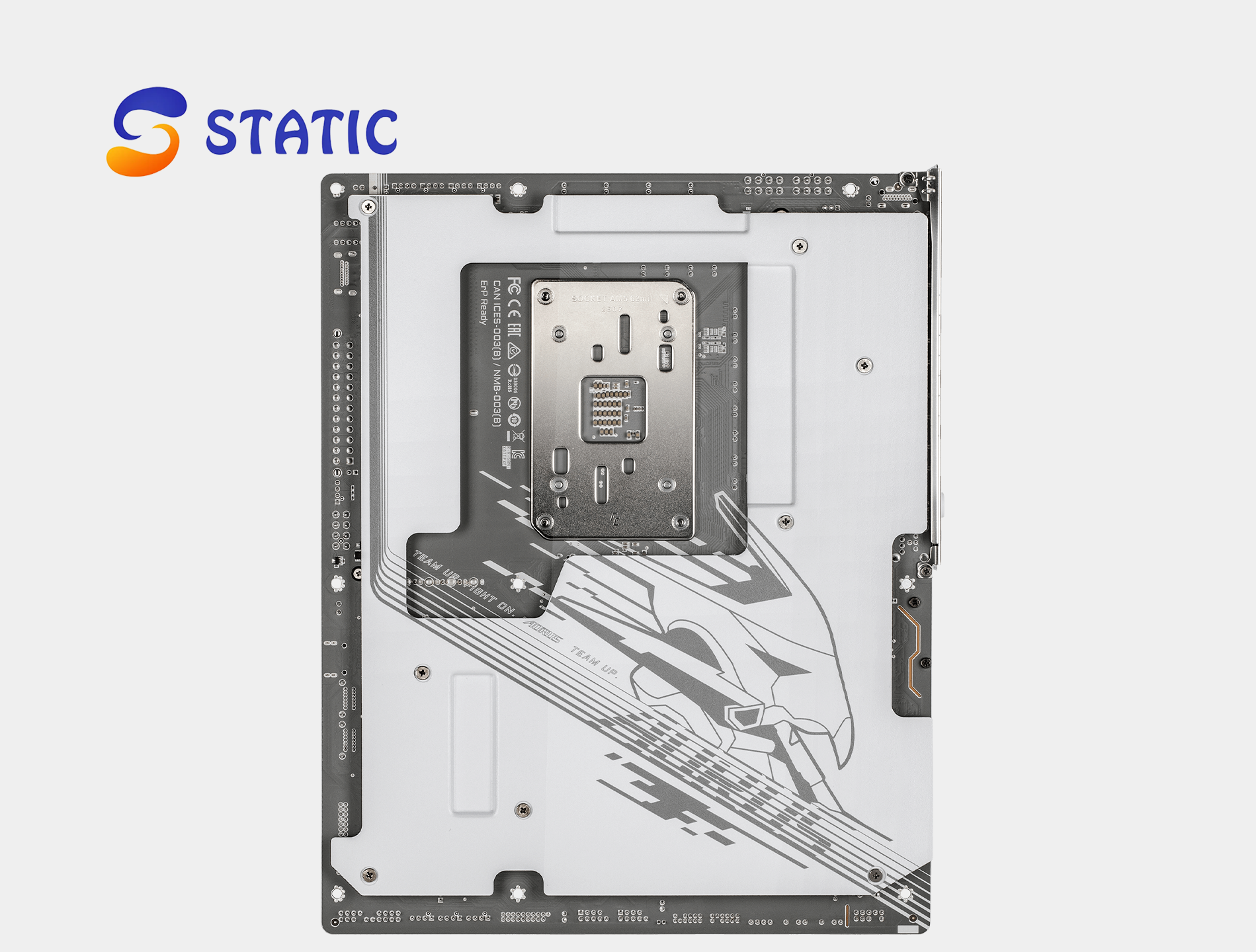

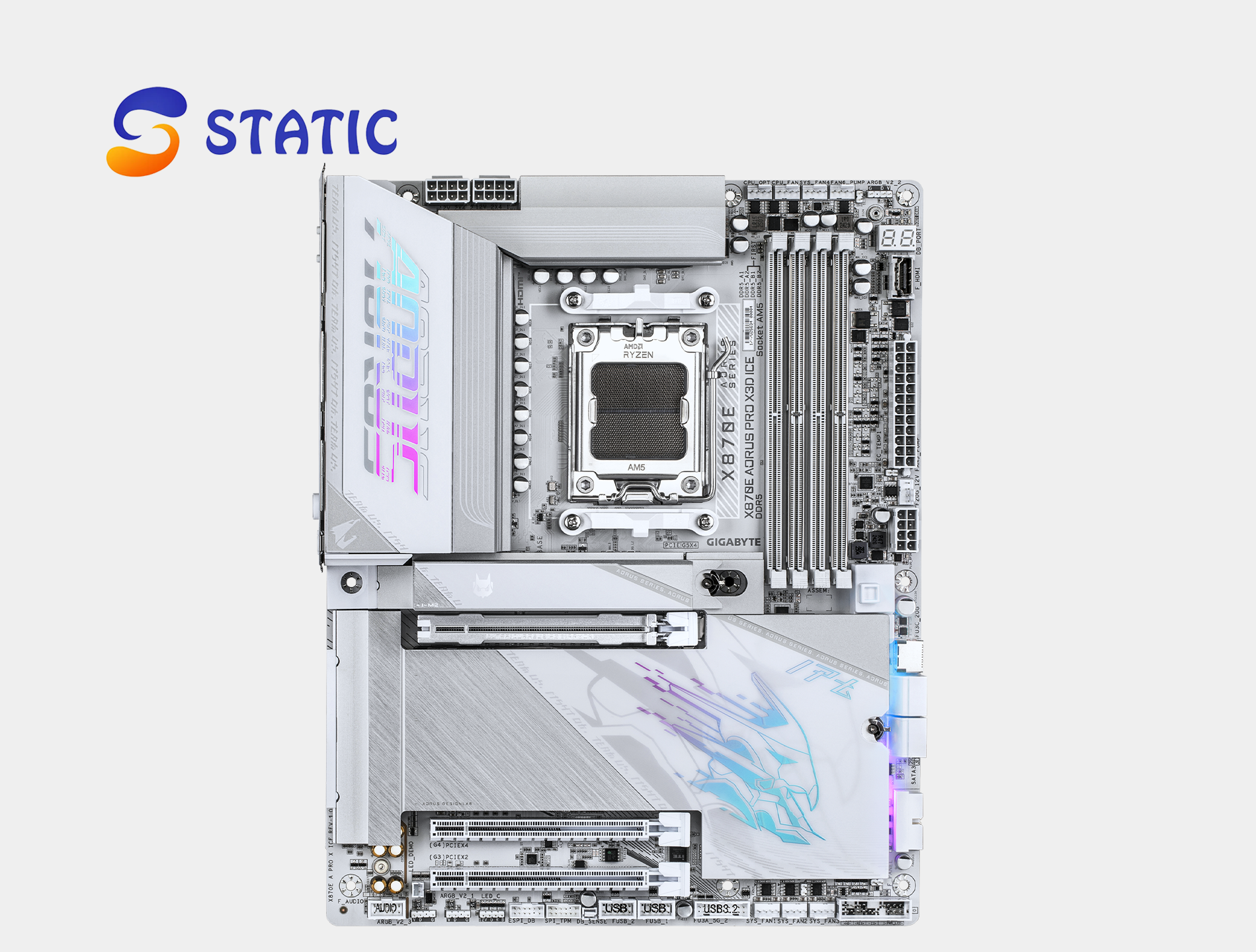

GIGABYTE X870E AORUS PRO X3D ICE

The GIGABYTE X870E AORUS PRO X3D ICE is a flagship ATX motherboard engineered for enthusiasts who demand maximum performance from AMD’s latest Ryzen processors. Built around the premium AMD X870E chipset, the GIGABYTE X870E AORUS PRO X3D ICE supports AMD Ryzen™ 9000, Ryzen™ 8000, and Ryzen™ 7000 Series processors, making it the ideal platform for elite gaming systems, professional workstations, AI-powered computing, and high-end content creation.

Designed to unlock the full potential of AMD’s AM5 platform, the GIGABYTE X870E AORUS PRO X3D ICE supports up to 256GB of DDR5 memory with incredible overclocking speeds reaching DDR5-9000 MT/s (OC). Compatibility with both AMD EXPO™ and Intel XMP memory profiles enables users to achieve exceptional memory performance for competitive gaming, video editing, 3D rendering, streaming, and demanding productivity workloads.

Storage is one of the strongest features of the GIGABYTE X870E AORUS PRO X3D ICE. The motherboard offers four M.2 slots, including two PCIe 5.0 x4 M.2 connectors for ultra-fast next-generation NVMe SSDs and two additional PCIe 4.0 M.2 slots for expanded storage capacity. Combined with four SATA 6Gb/s ports and RAID support for both NVMe and SATA drives, users can build high-speed storage configurations that meet the needs of professionals and enthusiasts alike.

Graphics expansion is powered by a PCIe 5.0 x16 slot, delivering full bandwidth for the latest high-performance graphics cards. Additional PCIe slots provide flexibility for capture cards, storage controllers, and other expansion devices, making this motherboard an outstanding choice for advanced custom PC builds.

Networking is equally impressive. The GIGABYTE X870E AORUS PRO X3D ICE features Qualcomm Wi-Fi 7, Bluetooth 5.4, and an ultra-fast Realtek 5Gb Ethernet controller, providing exceptional wired and wireless connectivity for gaming, streaming, cloud storage, and professional networking environments.

The motherboard also includes dual USB4 Type-C ports, multiple USB 3.2 Gen2 connections, USB 3.2 Gen2x2 front-panel support with 65W Power Delivery, premium Realtek ALC1220 audio, advanced cooling controls, onboard power and reset buttons, Q-Flash Plus, and an elegant white “ICE” design. Whether you’re building a premium gaming PC around a Ryzen X3D processor or an advanced workstation, the GIGABYTE X870E AORUS PRO X3D ICE delivers flagship-level performance, premium features, and exceptional reliability.

Why Choose GIGABYTE X870E AORUS PRO X3D ICE

The GIGABYTE X870E AORUS PRO X3D ICE is built for users who refuse to compromise. Combining AMD’s flagship X870E chipset with premium connectivity, exceptional power delivery, and cutting-edge expansion capabilities, this motherboard is designed to maximize the performance of today’s fastest Ryzen processors—especially Ryzen X3D gaming CPUs.

A major advantage of the GIGABYTE X870E AORUS PRO X3D ICE is its support for DDR5 memory speeds up to 9000 MT/s (OC), allowing gamers and professionals to unlock outstanding system responsiveness and application performance. With support for up to 256GB of DDR5 memory, the motherboard is equally suited for demanding creative workloads, virtualization, AI development, and heavy multitasking.

Storage flexibility is another highlight. Four M.2 slots—including two PCIe 5.0 connectors—provide massive bandwidth for the latest NVMe SSDs, while RAID support allows users to build extremely fast or highly secure storage arrays. Combined with PCIe 5.0 graphics support, the platform is fully prepared for next-generation GPUs and storage devices.

Connectivity is among the best available in its class. USB4, Wi-Fi 7, Bluetooth 5.4, and 5Gb Ethernet provide ultra-fast data transfers, low-latency networking, and future-ready compatibility with modern peripherals and high-speed networks. Premium audio powered by the Realtek ALC1220 codec further enhances gaming, streaming, and multimedia experiences.

GIGABYTE also includes enthusiast-grade features such as onboard power and reset buttons, Q-Flash Plus BIOS updates, advanced fan and water-cooling controls, temperature sensor headers, noise detection, RGB Gen2 lighting support, and USB Type-C fast charging up to 65W. Finished in an elegant white ICE design, the GIGABYTE X870E AORUS PRO X3D ICE is the perfect foundation for premium white gaming builds and professional workstations that demand uncompromising performance.

Specifications

CPU Support

• AMD Socket AM5
• Supports AMD Ryzen™ 9000 Series Processors
• Supports AMD Ryzen™ 8000 Series Processors
• Supports AMD Ryzen™ 7000 Series Processors

Chipset

• AMD X870E

Memory

• 4 × DDR5 DIMM Slots
• Maximum Capacity: 256GB
• Memory Speed: Up to DDR5-9000 MT/s (OC)
• Dual-Channel Memory Architecture
• Supports AMD EXPO™
• Supports Intel XMP
• Supports Non-ECC Unbuffered Memory

Graphics Output

• 2 × USB4 Type-C (DisplayPort Output, Up to 3840 × 2160 @ 240Hz)
• 1 × HDMI 2.1 (Up to 4096 × 2160 @ 60Hz)
• 1 × Front HDMI Header
• HDR Support

Audio

• Realtek ALC1220 High Definition Audio
• 2 / 4 / 5.1 / 7.1 Channel Audio
• Optical S/PDIF Out
• DSD Audio Support

Networking

• Realtek 5Gb Ethernet
• Qualcomm Wi-Fi 7 QCNCM865
• Wi-Fi 7 (802.11be)
• Supports 2.4GHz / 5GHz / 6GHz Bands
• Bluetooth 5.4

Expansion Slots

• 1 × PCIe 5.0 x16
• 1 × PCIe 4.0 x4
• 1 × PCIe 3.0 x2

Storage

• 2 × PCIe 5.0 M.2 Slots
• 2 × PCIe 4.0 M.2 Slots
• 4 × SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 (NVMe)
• RAID 0 / 1 / 10 (SATA)

USB Connectivity

Rear Panel

• 2 × USB4 Type-C
• 2 × USB Type-C (USB 3.2 Gen2)
• 5 × USB 3.2 Gen2 Type-A
• 3 × USB 3.2 Gen1

Internal Headers

• 1 × USB Type-C Header (USB 3.2 Gen2x2 with 65W PD)
• 2 × USB 3.2 Gen1 Headers
• 2 × USB 2.0 Headers

Internal Connectors

• 24-pin ATX Power Connector
• 2 × 8-pin CPU Power Connectors
• PCIe Power Connector
• CPU Fan Header
• CPU Pump Header
• 6 × System/Pump Fan Headers
• 3 × Addressable RGB Gen2 Headers
• 1 × RGB Header
• 4 × M.2 Connectors
• 4 × SATA Ports
• TPM Header
• Front USB Type-C Header
• Noise Detection Header
• 2 × Temperature Sensor Headers
• Power Button
• Reset Jumper
• Clear CMOS Jumper

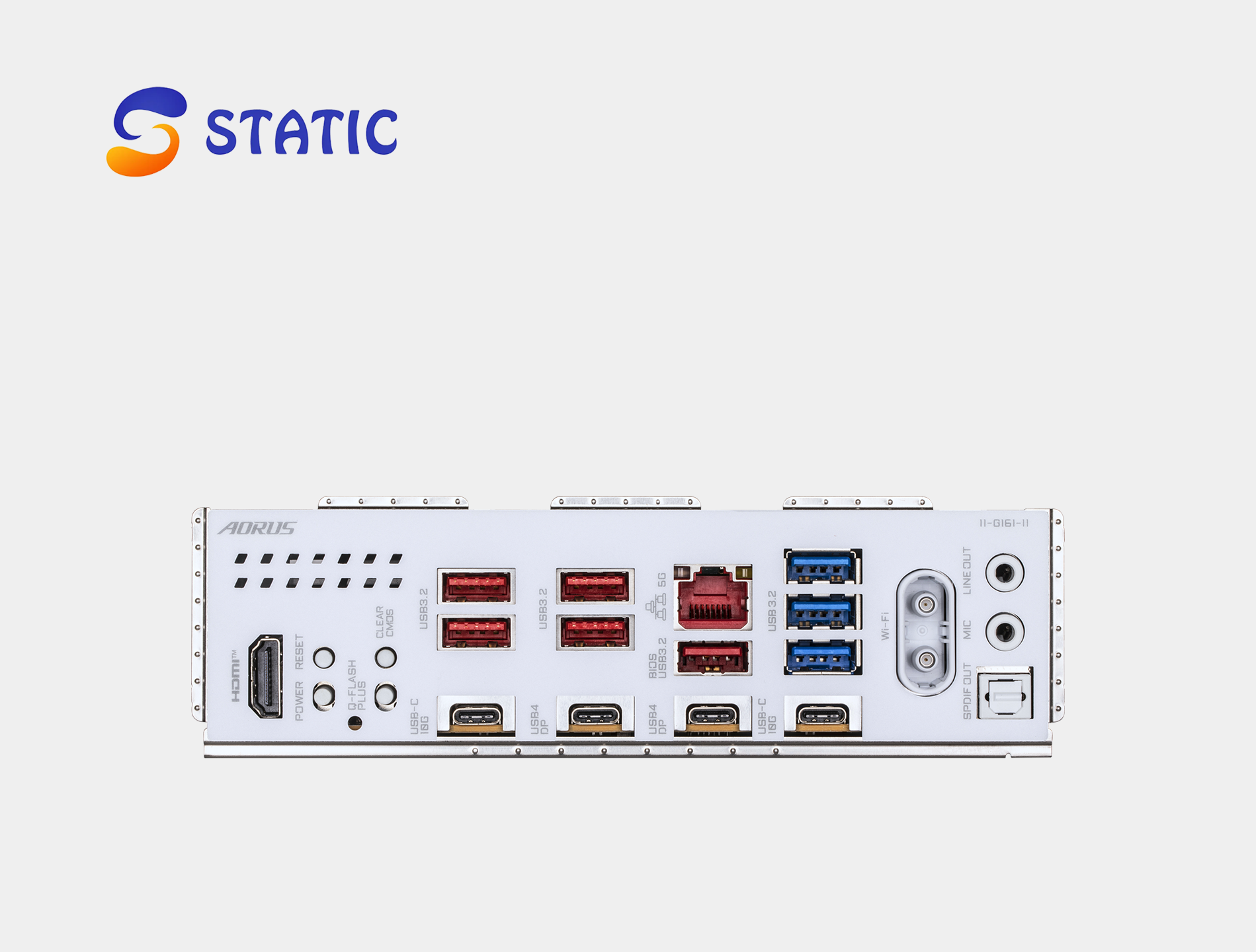

Rear I/O

• HDMI 2.1
• 2 × USB4 Type-C
• 2 × USB Type-C (USB 3.2 Gen2)
• 5 × USB 3.2 Gen2 Type-A
• 3 × USB 3.2 Gen1
• RJ-45 5Gb LAN
• Wi-Fi Antenna Connectors
• Optical S/PDIF Out
• Audio Jacks
• Power Button
• Reset Button
• Clear CMOS Button
• Q-Flash Plus Button

BIOS & Features

• 512 Mbit AMI UEFI BIOS
• GIGABYTE Control Center (GCC)
• Q-Flash
• Q-Flash Plus
• Smart Backup
• Noise Detection
• Advanced Hardware Monitoring

Operating System

• Windows 11 64-bit

Form Factor

• ATX
• Dimensions: 30.5 × 24.4 cm
