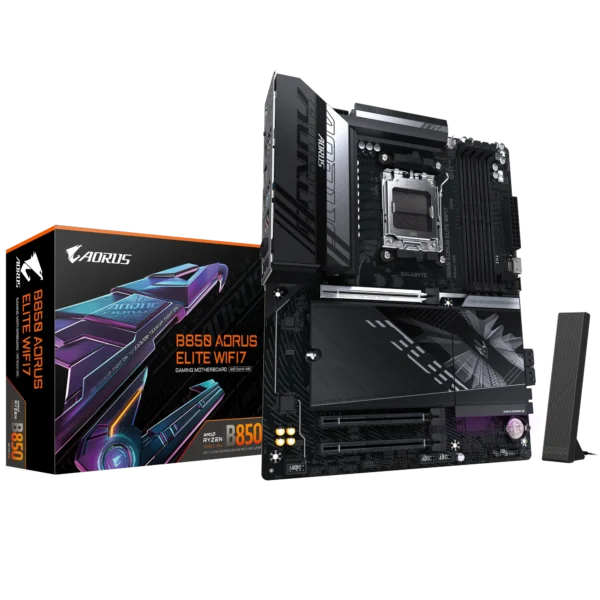

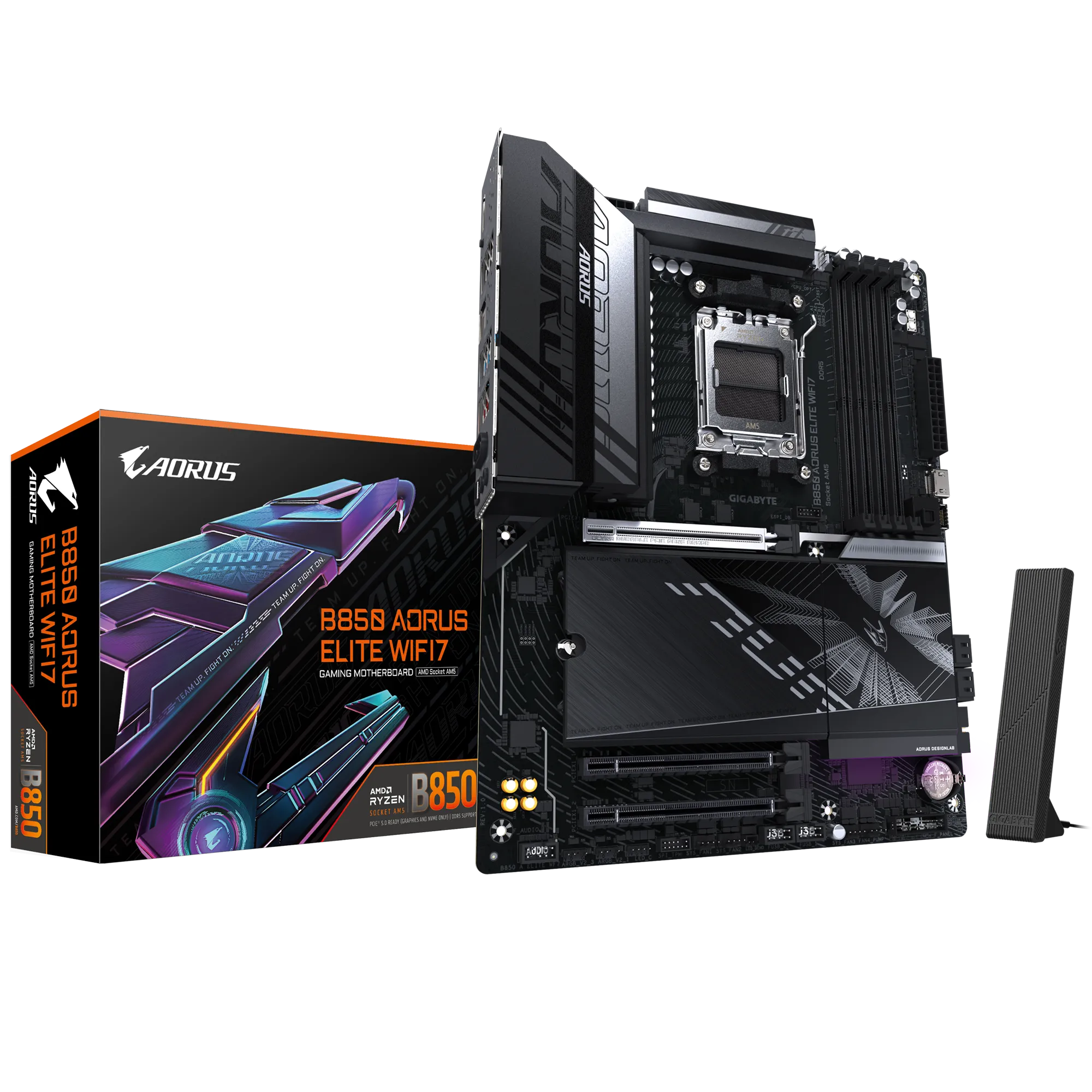

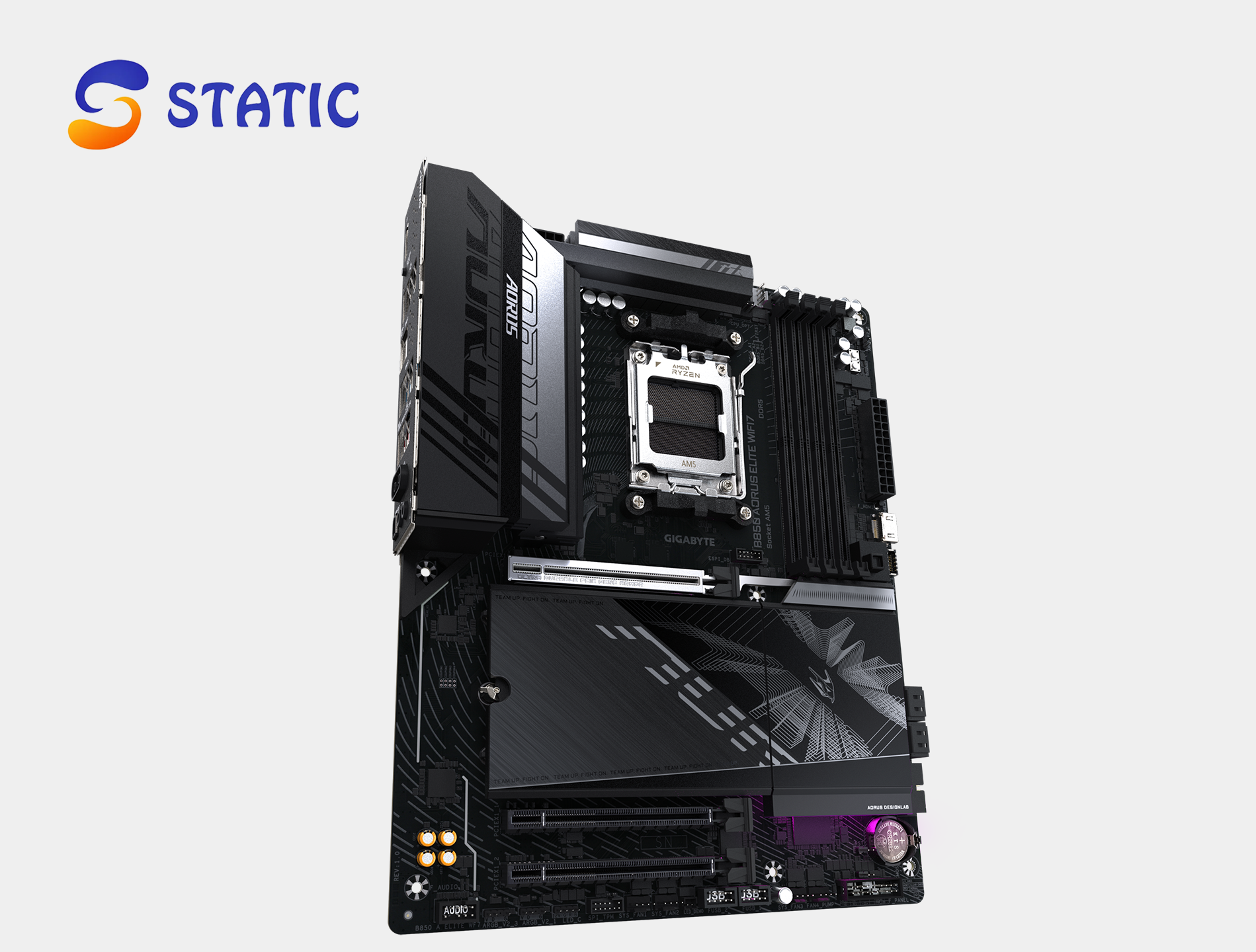

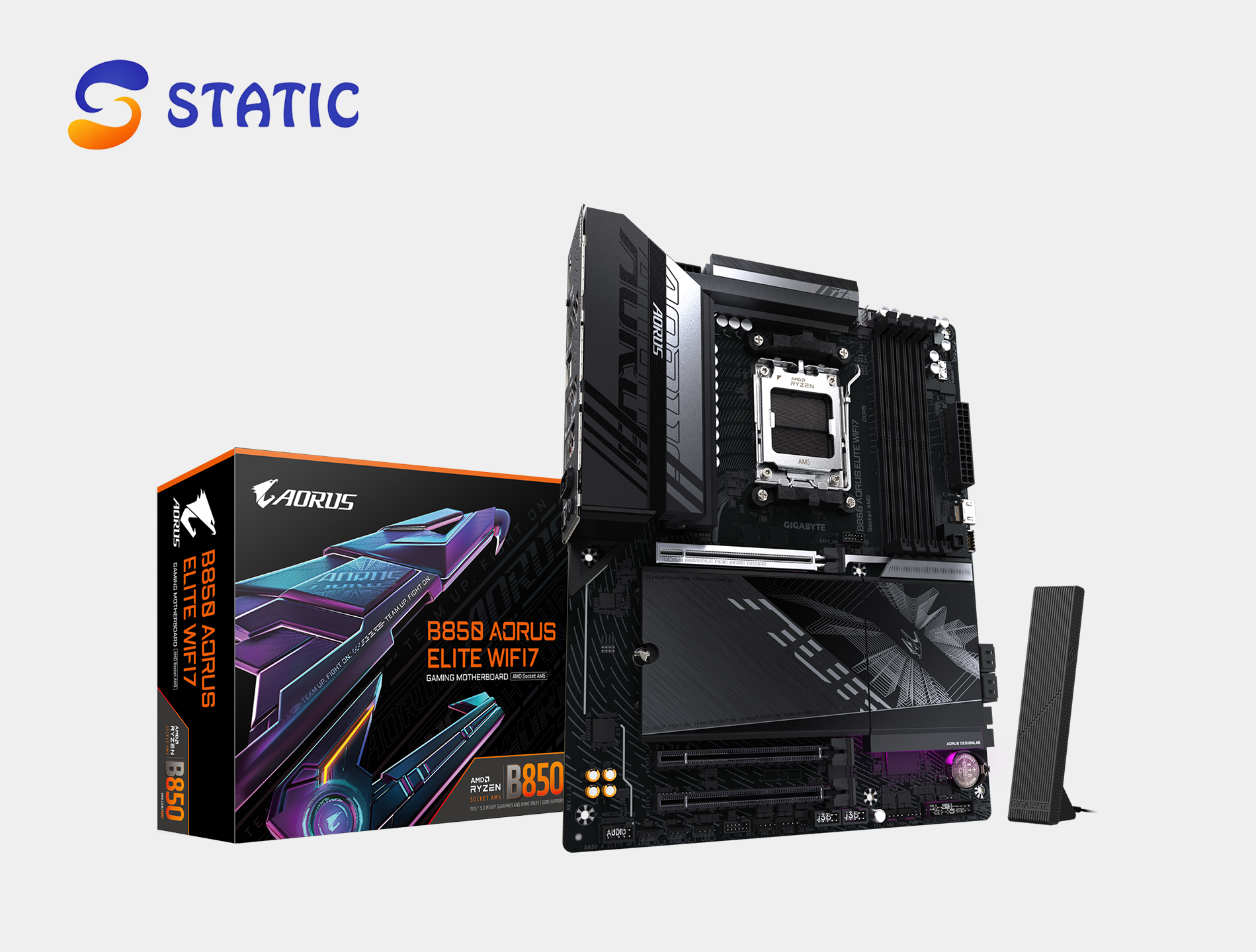

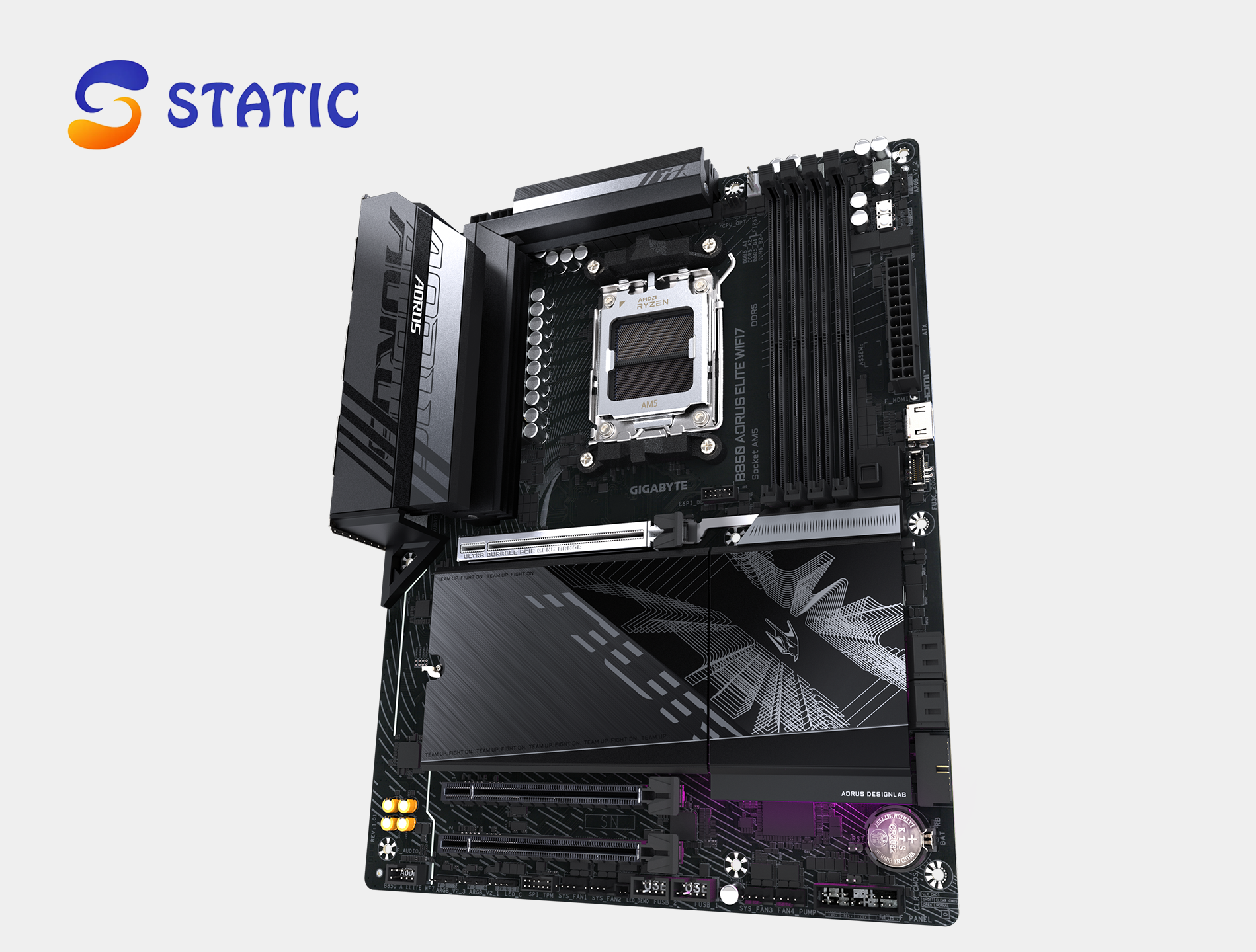

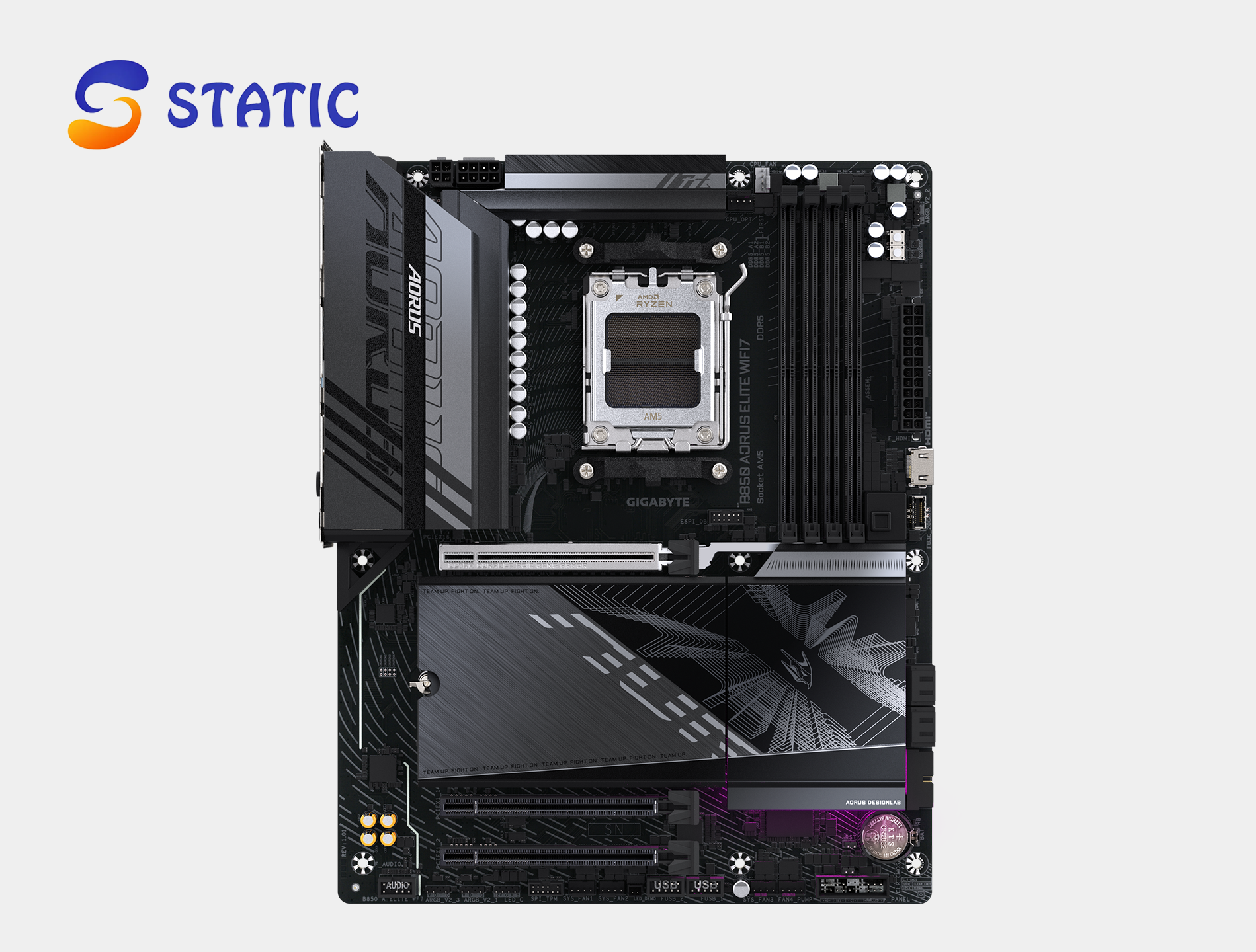

GIGABYTE B850 AORUS ELITE WIFI7 MOTHERBOARD

  • CPU
  • AMD Socket AM5, support for:
  • AMD Ryzen 9000 Series Processors/
  • AMD Ryzen 8000 Series Processors/
  • AMD Ryzen 7000 Series Processors
  • Chipset
  • AMD B850
  • Memory
  • Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
  • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,
  • Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon Graphics support:
  • – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
  • * Support for HDMI 1.4 version
  • (Graphics specifications may vary depending on CPU support.)
  • Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
  • LAN
  • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • Realtek Wi-Fi 7 RTL8922AE
  • – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • – BLUETOOTH 5.4
  • – Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
  • * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  • ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations
  • Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  • * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
  • Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • * RAID 5 is only available on AMD Ryzen 9000 Series Processors.
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • CPU+USB 2.0 Hub:
  • – 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
  • – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • – 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 3.2 Gen 1 Hub:
  • – 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2×2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x HDMI port*
  • 1 x power button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • * Actual support may vary by CPU.

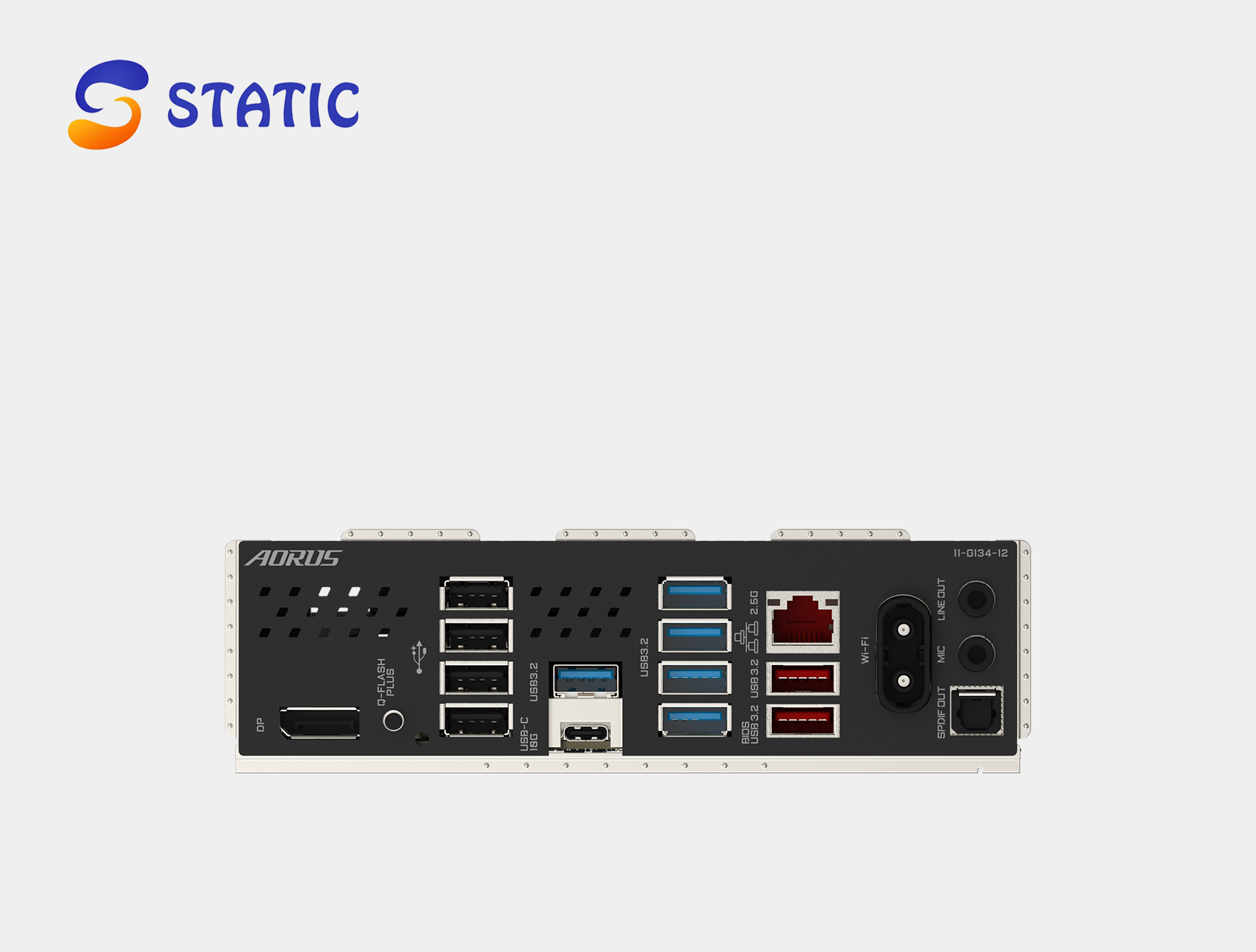

  • Back Panel Connectors
  • 1 x DisplayPort*
  • 1 x Q-Flash Plus button
  • 4 x USB 2.0/1.1 ports
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 5 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x antenna connectors (2T2R)
  • 2 x audio jacks
  • 1 x optical S/PDIF Out connector
  • * Actual support may vary by CPU.
  • I/O Controller
  • iTE I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
  • BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
  • Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
  • Operating System
  • Support for Windows 11 64-bit
  • Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
