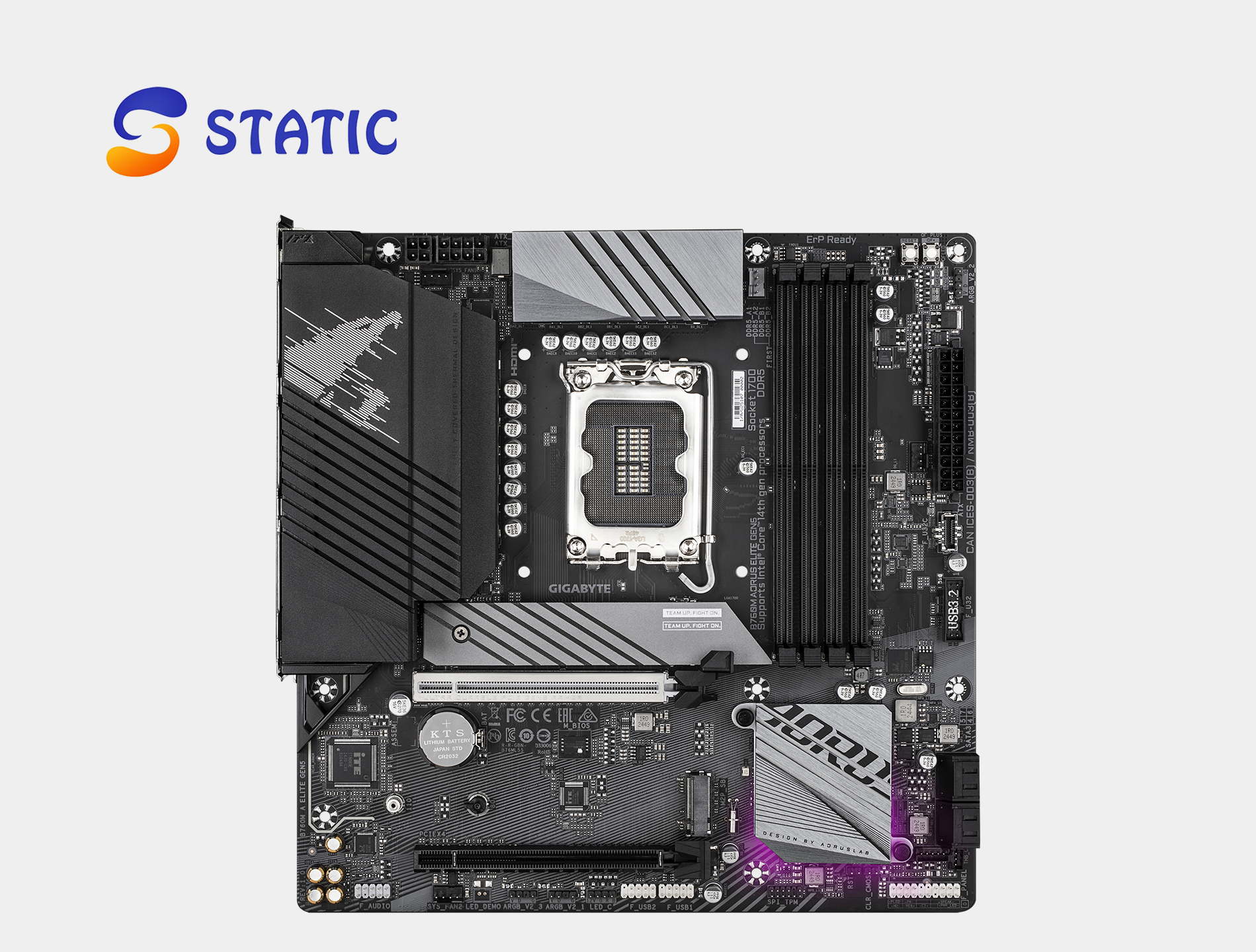

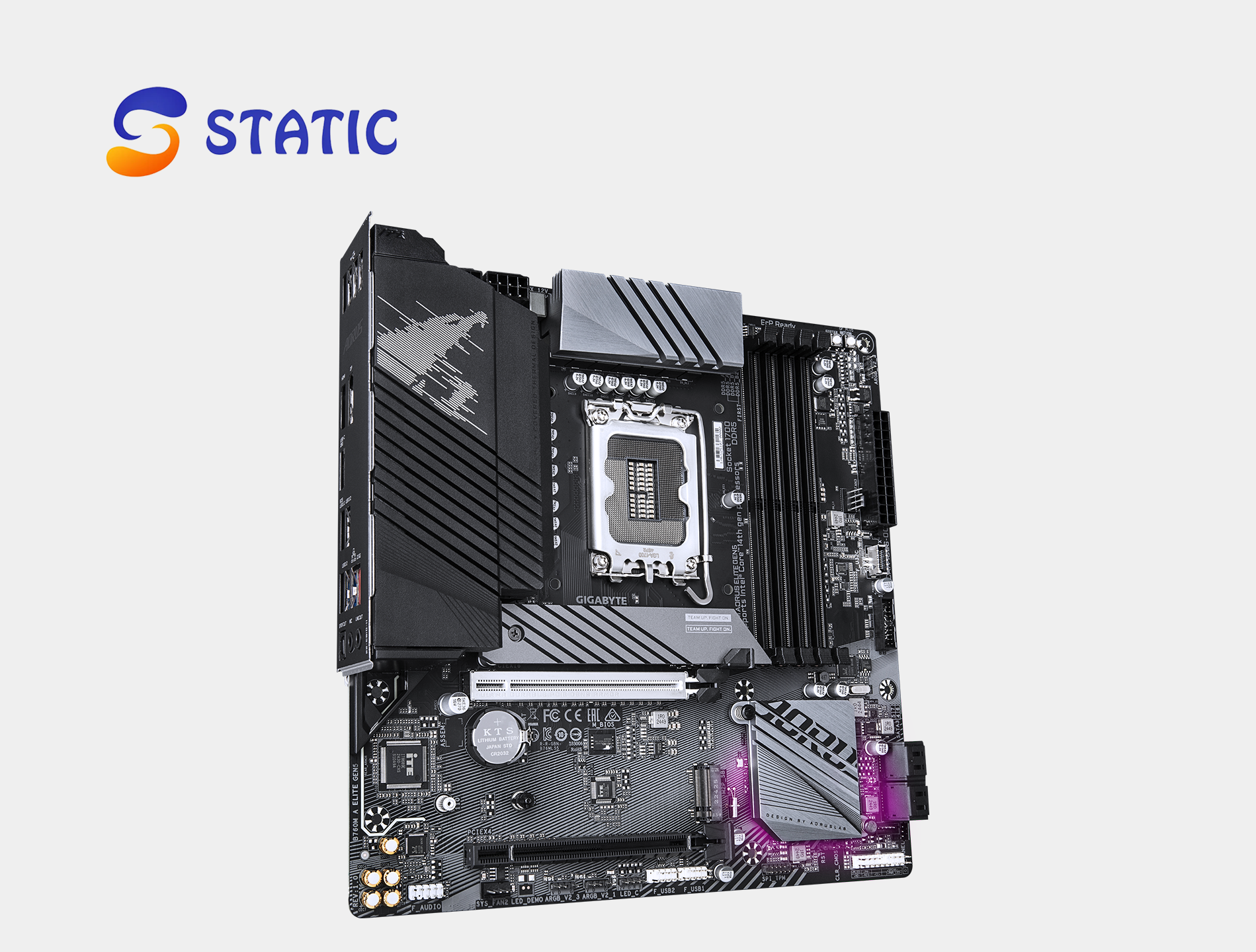

GIGABYTE B760M AORUS ELITE GEN5

The GIGABYTE B760M AORUS ELITE GEN5 is a powerful Micro-ATX motherboard designed for modern gaming PCs and high-performance desktop systems. Built on the Intel B760 chipset, this motherboard supports 12th, 13th, and 14th Generation Intel Core processors, delivering excellent performance for gaming, streaming, and demanding workloads.

The GIGABYTE B760M AORUS ELITE GEN5 features four DDR5 memory slots supporting up to 256GB of RAM with speeds reaching 7800MHz (OC). With dual-channel architecture and XMP support, users can easily enable high-performance memory profiles to improve system responsiveness and multitasking capabilities.

For graphics performance and expansion, the GIGABYTE B760M AORUS ELITE GEN5 includes a PCIe 5.0 x16 slot, providing support for the latest generation of graphics cards and high-speed expansion devices. An additional PCIe 4.0 slot allows users to install extra expansion cards for enhanced system functionality.

Storage performance is equally impressive. The motherboard includes two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs, along with four SATA 6Gb/s ports for traditional storage drives. This combination allows flexible storage setups with fast boot speeds and large storage capacity.

Networking is powered by Realtek 2.5GbE LAN, offering faster wired connectivity than standard Gigabit Ethernet, making it ideal for gaming, streaming, and downloading large files.

For audio, the GIGABYTE B760M AORUS ELITE GEN5 features the Realtek ALC1220 high-definition audio codec, delivering clear and immersive sound for gaming and multimedia applications.

With PCIe 5.0 support, high-speed DDR5 memory compatibility, advanced connectivity options, and reliable AORUS build quality, the GIGABYTE B760M AORUS ELITE GEN5 provides a powerful foundation for building a modern Intel gaming PC.

Why Choose GIGABYTE B760M AORUS ELITE GEN5?

Latest Intel Processor Support
Compatible with 12th, 13th, and 14th Gen Intel Core processors, providing strong performance for gaming and productivity tasks.

High-Speed DDR5 Memory
Supports DDR5 memory up to 7800MHz (OC) and up to 256GB capacity, enabling smooth multitasking and improved system performance.

PCIe 5.0 Graphics Slot
Equipped with a PCIe 5.0 x16 slot ready for next-generation graphics cards and high-performance expansion devices.

Fast NVMe Storage Support
Includes two PCIe 4.0 M.2 slots for high-speed NVMe SSDs and four SATA ports for additional storage drives.

2.5Gb High-Speed LAN
Integrated Realtek 2.5GbE LAN delivers faster wired network connectivity compared to traditional Gigabit LAN.

Premium Audio Quality
Powered by the Realtek ALC1220 codec, providing high-definition surround sound for immersive gaming and entertainment.

Modern Connectivity Options
Features USB 3.2 Gen 2×2 Type-C, multiple USB ports, RGB headers, and advanced internal connectors for modern PC builds.

Specifications

CPU

Socket: LGA1700

Supported Processors:
12th / 13th / 14th Gen Intel® Core™
Intel® Pentium® Gold
Intel® Celeron®

Chipset

Intel® B760 Express Chipset

Memory

Memory Slots: 4 × DDR5 DIMM

Maximum Capacity: 256GB

Memory Speed Support:
DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 MT/s

Memory Architecture: Dual Channel

XMP Support: Yes

Graphics Output

1 × HDMI 2.1 (Max Resolution: 4096×2160@60Hz)

1 × DisplayPort 1.2 (Max Resolution: 4096×2304@60Hz)

Audio

Audio Codec: Realtek® ALC1220

Channels: 2 / 4 / 5.1 / 7.1 Channel

Additional Feature: Optical S/PDIF Out

LAN

LAN Controller: Realtek® 2.5GbE LAN

Expansion Slots

1 × PCIe 5.0 x16 slot

1 × PCIe 4.0 x16 slot (x4 mode)

Storage

M.2 Slots: 2 × PCIe 4.0 NVMe

SATA Ports: 4 × SATA 6Gb/s

RAID Support: RAID 0 / RAID 1 / RAID 5 / RAID 10

USB Ports

Rear USB

1 × USB Type-C (USB 3.2 Gen 2×2)

1 × USB 3.2 Gen 2 Type-A

3 × USB 3.2 Gen 1

4 × USB 2.0

Internal USB Headers

1 × USB Type-C (USB 3.2 Gen 2)

1 × USB 3.2 Gen 1

2 × USB 2.0

Internal Connectors

24-pin ATX Power

8-pin + 4-pin CPU Power

3 × System Fan Headers

3 × Addressable RGB Headers

1 × RGB Header

2 × M.2 Slots

4 × SATA Ports

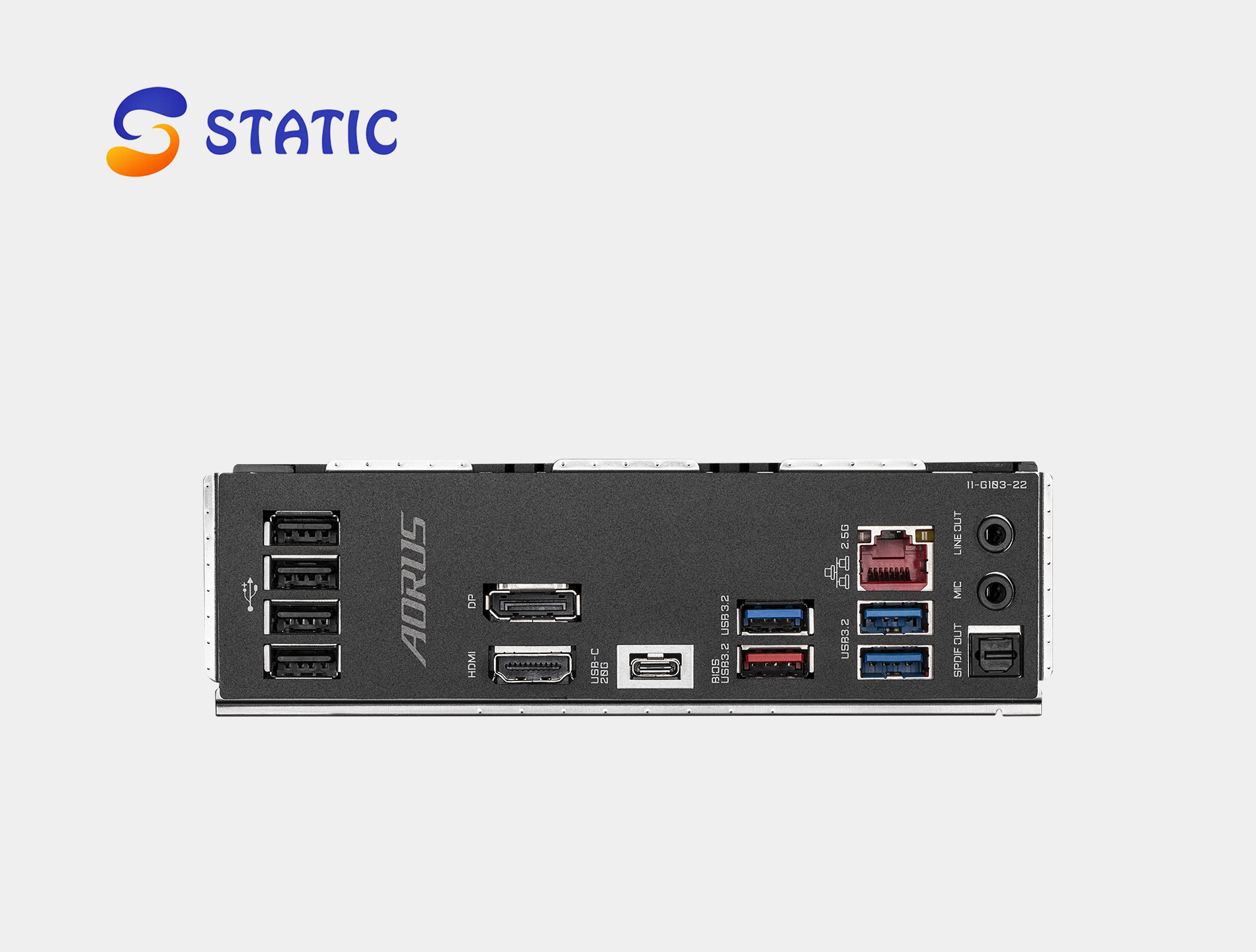

Rear I/O Ports

USB Type-C

USB Type-A

HDMI

DisplayPort

RJ-45 LAN

Optical S/PDIF

Audio Jacks

BIOS

256 Mbit Flash

AMI UEFI BIOS

Operating System

Windows 11 64-bit

Windows 10 64-bit

Form Factor

Micro-ATX

24.4 × 24.4 cm

———————————————————————————————————–
