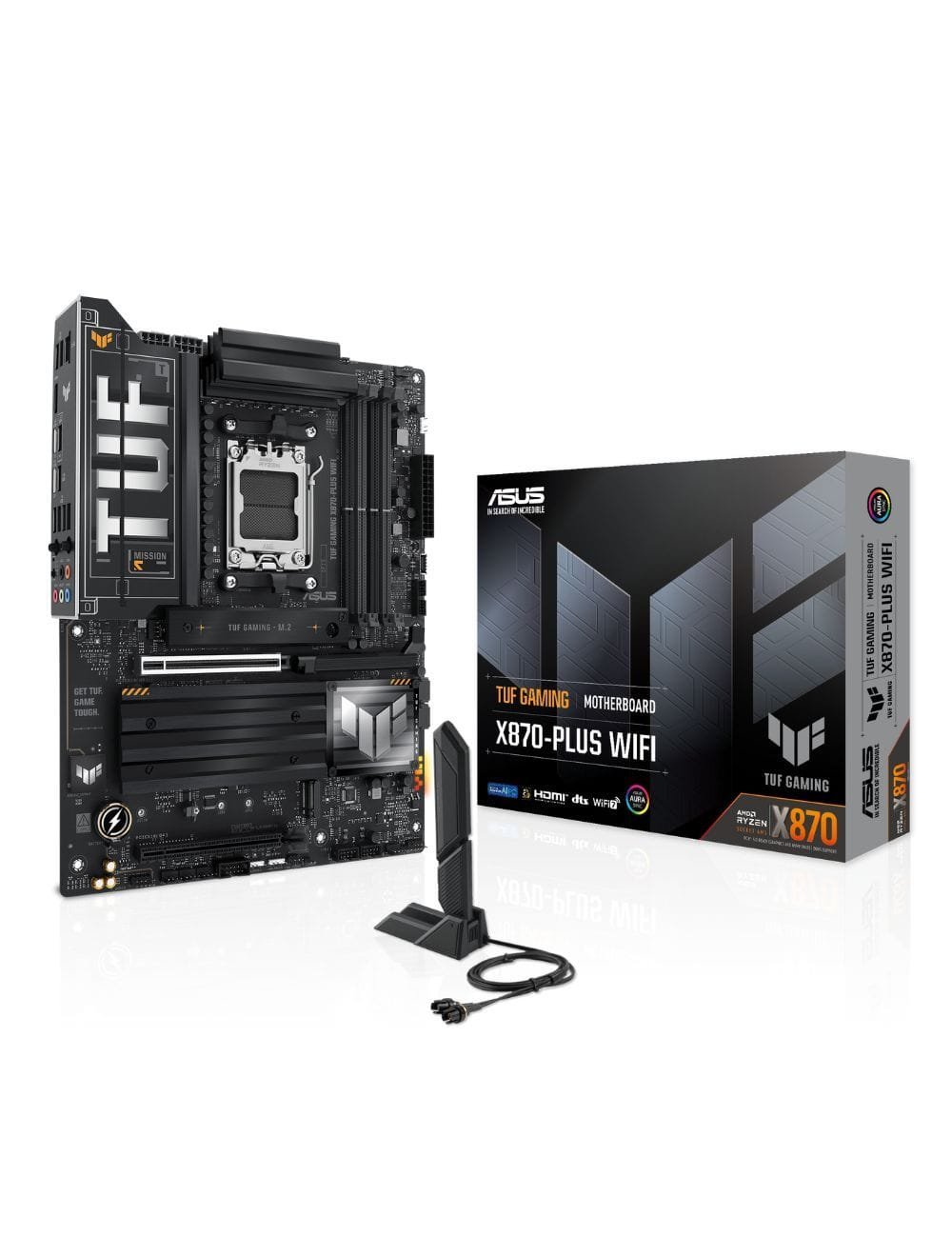

ASUS TUF GAMING X870-PLUS WIFI Motherboard Specifications

Model Information

   – Model: TUF GAMING X870-PLUS WIFI

   – Operating System: Windows 11

   – Form Factor: ATX (12 inch x 9.6 inch or 30.5 cm x 24.4 cm)

Key Features

• CPU Compatibility:
  • AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.
  • For the latest CPU support list, visit ASUS Support.
• Chipset:
  • AMD X870 Chipset.
• Memory:
  • 4 x DIMM slots, max. 192GB DDR5.
  • Supports speeds up to 8000+MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series.
  • Dual-channel architecture.
  • Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP).
• Graphics:
  • 1 x HDMI™ port (supports 4K@60Hz).
  • 2 x USB4® (40Gbps) ports (supports USB Type-C® display outputs, max. 4K@60Hz).
• Expansion Slots:
  • 1 x PCIe 5.0 x16 slot for Ryzen™ 9000 & 7000 Series.
  • 1 x PCIe 4.0 x16 slot for Ryzen™ 8000 Series.
  • 1 x PCIe 4.0 x16 slot (AMD X870 Chipset).
• Storage:
  • 4 x M.2 slots and 2 x SATA 6Gb/s ports.
  • M.2_1 and M.2_2 support PCIe 5.0/4.0 depending on CPU type.
• Ethernet:
  • 1 x Realtek 2.5Gb Ethernet with TUF LANGuard.
• Wireless & Bluetooth:
  • Wi-Fi 7 (2×2, up to 2.9Gbps) and Bluetooth® v5.4.
  • Wi-Fi 6GHz features vary by region.
• USB Ports:
  • Rear: 10 total (including USB4® and Type-A ports).
  • Front: 7 total (including USB Type-C® with PD Fast-charge).
• Audio:
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC.
  • High-quality audio features including shielding and capacitors.

Back Panel I/O Ports

– 2 x USB4® (40Gbps) Type-C ports

– 3 x USB 10Gbps Type-A ports

– 4 x USB 5Gbps Type-A ports

– 1 x USB 2.0 Type-A port

– 1 x HDMI™ port

– 1 x Wi-Fi module

– 1 x Realtek 2.5Gb Ethernet port

– 5 x Audio jacks

– 1 x BIOS FlashBack™ button

Special Features

• TUF Protection:– Includes features like DIGI+ VRM, ESD Guards, and overvoltage protection.
• ASUS Q-Design:– Simplifies installation with features like M.2 Q-Latch and PCIe Slot Q-Release.
• Aura Sync:– Customizable RGB lighting with addressable Gen 2 headers.
• BIOS Features:– Includes FlashBack™ and EZ Flash 3.

Accessories Included

– 2 x SATA 6Gb/s cables

– 1 x ASUS WiFi Q-Antenna

– 1 x Quick start guide

– 1 x TUF GAMING sticker
