Asus PRIME Z790-P WIFI
Product Technical Specifications

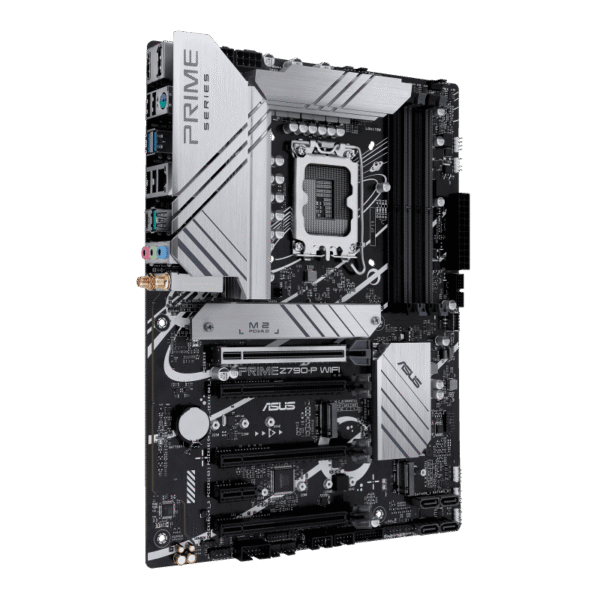

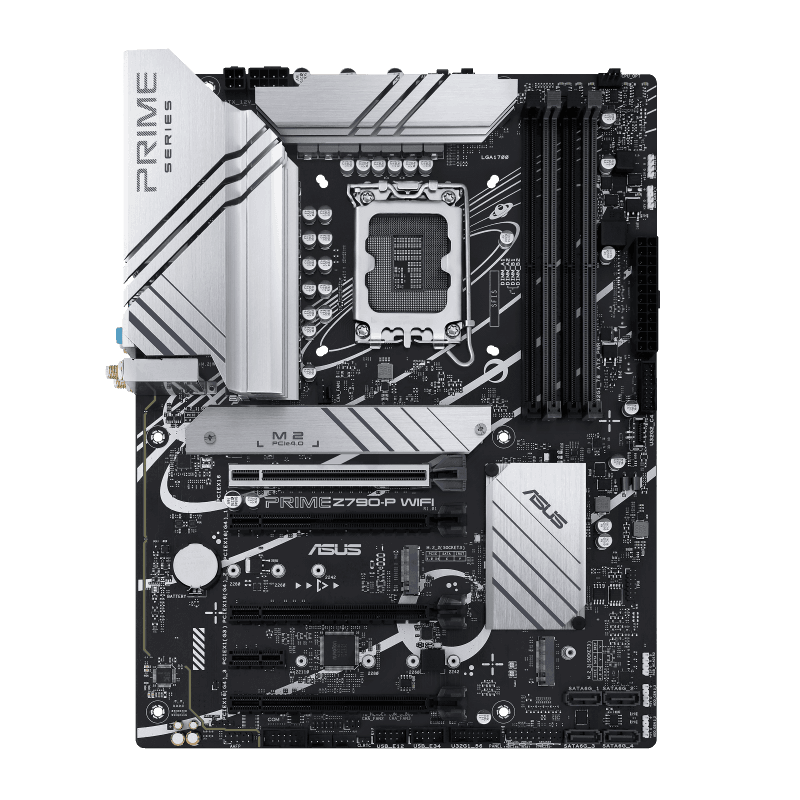

Product Name: ASUS PRIME Z790-P WIFI Motherboard
Model: PRIME Z790-P WIFI
Latest Update: Supports Intel 14th / 13th / 12th Gen CPUs with LGA1700 socket. Enhanced with Wi-Fi 6 and PCIe 5.0 support for next-gen performance.
CPU Support
-
Socket: Intel LGA1700
-
Compatible with:
-
Intel 14th Gen Core™ Processors
-
Intel 13th Gen Core™ Processors
-
Intel 12th Gen Core™, Pentium® Gold, and Celeron® Processors
-
-
Supports:
-
Intel Turbo Boost Technology 2.0
-
Intel Turbo Boost Max Technology 3.0 (CPU dependent)
-
Chipset
-
Intel Z790 Chipset
Memory
-
4 × DIMM slots
-
Maximum Capacity: 128GB
-
Type: DDR5 (PRIME Z790-P WIFI model)
-
Supported Frequencies:
-
DDR5: 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz
-
-
Dual Channel Architecture
-
Supports Intel XMP 3.0 (Extreme Memory Profile)
-
Non-ECC, Un-buffered Memory
Graphics Output
Available only with CPUs featuring integrated graphics
-
1 × DisplayPort (Supports 4K@60Hz, DisplayPort 1.4)
-
1 × HDMI Port (Supports 4K@60Hz, HDMI 2.1)
-
Graphics support depends on CPU
Expansion Slots
-
1 × PCIe 5.0 x16 slot (CPU-based)
-
1 × PCIe 3.0 x16 slot (max @ x4)
-
2 × PCIe 3.0 x1 slots (chipset-based)
-
ASUS SafeSlot Core+ for reinforced PCIe slot protection
Storage
-
Total Storage Interfaces:
-
3 × M.2 Slots
-
M.2_1: PCIe 4.0 x4
-
M.2_2: PCIe 4.0 x4
-
M.2_3: PCIe 4.0 x4 & SATA
-
-
4 × SATA 6Gb/s Ports
-
-
Supports RAID 0, 1, 5, 10
-
Intel Rapid Storage Technology support
Networking
-
LAN: Realtek 2.5Gb Ethernet
-
Wireless:
-
Wi-Fi 6 (802.11 a/b/g/n/ac/ax, dual-band 2.4GHz/5GHz)
-
-
Bluetooth: v5.3
Rear I/O Ports
-
1 × DisplayPort
-
1 × HDMI Port
-
2 × USB 3.2 Gen 2 Type-A
-
1 × USB 3.2 Gen 2×2 Type-C
-
4 × USB 3.2 Gen 1 (Type-A)
-
2 × USB 2.0 (Type-A)
-
1 × Intel 2.5Gb LAN (RJ-45)
-
3 × Audio Jacks (Line in / Line out / Mic in)
-
1 × Wi-Fi Module
-
1 × PS/2 Keyboard/Mouse Combo Port
Internal I/O Connectors
Cooling & Power:
-
1 × 4-pin CPU Fan Header
-
1 × 4-pin AIO Pump Header
-
3 × 4-pin Chassis Fan Headers
-
1 × 24-pin ATX Power Connector
-
1 × 8-pin +12V Power Connector
-
1 × 4-pin +12V Power Connector
Storage:
-
3 × M.2 Slots (Key M)
-
4 × SATA 6Gb/s Ports
USB:
-
1 × USB 3.2 Gen 2 Header (supports 1 USB Type-C)
-
1 × USB 3.2 Gen 1 Header (supports 2 ports)
-
2 × USB 2.0 Headers (support 4 ports)
RGB & Miscellaneous:
-
3 × Addressable Gen 2 RGB Headers
-
1 × AURA RGB Header
-
1 × Clear CMOS Header
-
1 × Front Panel Audio Header
-
1 × Thunderbolt Header
-
1 × Speaker Header
-
1 × SPI TPM Header (14-1 pin)
-
1 × 10-1 pin System Panel Header
Protection Features (ASUS 5X Protection III)
-
DIGI+ VRM
-
LANGuard
-
Overvoltage Protection
-
SafeSlot Core+
-
Stainless-Steel Back I/O
RGB & Aesthetics
-
AURA Sync Support
-
1 × AURA RGB Header
-
3 × Addressable Gen 2 Headers
Audio
-
Realtek 7.1 Channel High Definition Audio Codec
-
Supports:
-
Jack detection
-
Front panel jack-retasking
-
Multi-streaming
-
Up to 24-bit/192kHz playback
-
-
Premium Audio Capacitors
-
Audio Shielding Design
-
Separate PCB Layers for left/right channels
Software Features
-
Armoury Crate
-
AURA Sync
-
Fan Xpert 2+
-
-
AI Suite 3
-
TurboV EVO
-
EPU
-
DIGI+ VRM
-
-
ASUS CPU-Z
-
MyASUS
-
Norton Anti-virus (Trial)
-
WinRAR
-
BIOS FlashBack support
-
ASUS EZ Flash 3
-
CrashFree BIOS 3
BIOS
-
256 Mb Flash ROM
-
UEFI AMI BIOS
Accessories Included
-
2 × SATA 6Gb/s Cables
-
1 × I/O Shield
-
1 × M.2 Screw Package
-
1 × Wi-Fi Antenna
-
1 × User Manual
-
1 × Support DVD (optional)
Form Factor
-
ATX
-
Dimensions: 30.5 cm x 24.4 cm (12″ x 9.6″)
