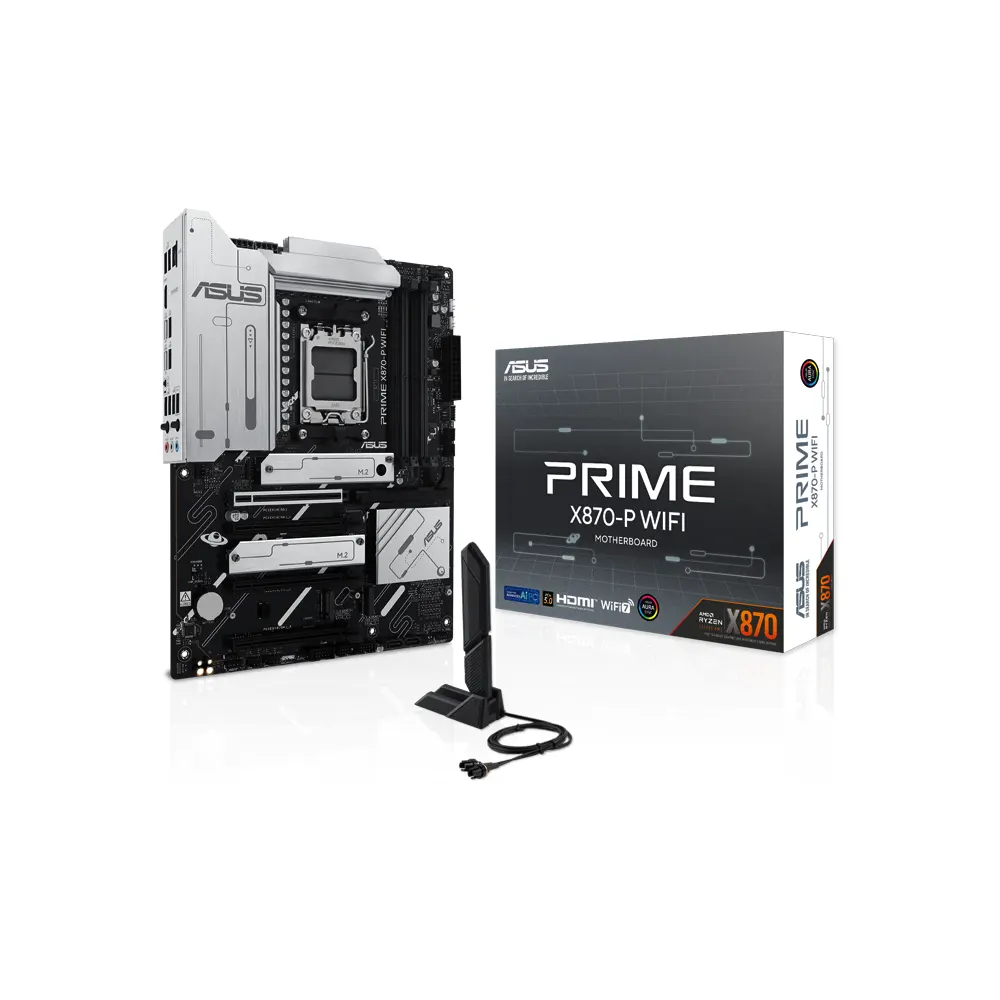

ASUS PRIME X870-P WIFI

ASUS PRIME X870-P WIFI – Specifications

CPU:

– AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Chipset:

– AMD X870 Chipset

Memory:

– 4 x DIMM slots, up to 256GB DDR5

– Supports up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series Processors

– ECC and Non-ECC, Un-buffered DIMM

– Dual-channel memory architecture

– Supports AMD Extended Profiles for Overclocking (EXPO™)

–  ASUS Enhanced Memory Profile (AEMP)

Form Factor:

• ATX (12″ x 9.6″ / 30.5 cm x 24.4 cm)

Graphics:

– 1 x HDMI™ port (4K@60Hz, HDMI 2.1)

– 2 x USB4® (40Gbps) Type-C® ports supporting display output (4K@60Hz, DisplayPort 1.4a)

– Graphics specifications depend on CPU

Expansion Slots:

• For Ryzen™ 9000 & 7000 Series:

  – 1 x PCIe 5.0 x16 slot (x16 mode)

• For Ryzen™ 8000 Series:

  – 1 x PCIe 4.0 x16 slot (x8/x4 mode)

• Chipset-based Slots:

  – 3 x PCIe 4.0 x16 slots (x1 mode)

Storage:

• 4 x M.2 slots and 2 x SATA 6Gb/s ports

• For Ryzen™ 9000 & 7000 Series:

  • M.2_1: PCIe 5.0 x4 (2280)

• For Ryzen™ 8000 Series:

  • M.2_1: PCIe 4.0 x4 (2280)

• Chipset-based M.2 Slots:

  • M.2_2: PCIe 4.0 x4 (2242/2260/2280)

  • M.2_3: PCIe 4.0 x4 (2280)

  • M.2_4: PCIe 3.0 x2 (2280) – Shares bandwidth with SATA6G_1/2

RAID Support:

• Ryzen™ 9000 Series: RAID 0/1/5/10

• Ryzen™ 8000 Series: RAID 0/1

• Ryzen™ 7000 Series: RAID 0/1/10

Networking:

• 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard

• Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps)

• Bluetooth® v5.4

USB Ports:

• Rear I/O (10 ports):

  • 2 x USB4® (40Gbps) Type-C®

  • 1 x USB 10Gbps Type-A

  • 3 x USB 5Gbps Type-A

  • 4 x USB 2.0 Type-A

• Front Panel (7 ports):

  • 1 x USB 10Gbps Type-C®

  • 1 x USB 5Gbps header (supports 2 ports)

  • 2 x USB 2.0 headers (supports 4 ports)

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports 24-bit/192 kHz playback

• Audio shielding, premium capacitors, and dedicated PCB layers

Internal I/O Connectors:

• Cooling:

  • 1 x 4-pin CPU fan header

  • 1 x 4-pin CPU OPT fan header

  • 1 x 4-pin AIO pump header

  • 4 x 4-pin chassis fan headers

• Power:

  • 1 x 24-pin main power connector

  • 2 x 8-pin +12V CPU power connectors

• Storage:

  • 4 x M.2 slots

  • 2 x SATA 6Gb/s ports

• Miscellaneous:

  • 3 x Addressable Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x COM port header

  • 1 x Front panel audio header

  • 1 x S/PDIF out header

  • 1 x SPI TPM header

  • 1 x 10-1 pin system panel header

Special Features:

• ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O

• ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot

• ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design

• ASUS EZ DIY: BIOS FlashBack™, Pre-mounted I/O shield, SafeSlot

• Aura Sync: Addressable Gen 2 headers

Software:

• Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving)

• ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z

• Norton 360 Deluxe (60 Days Trial), WinRAR (40 Days Trial)

BIOS:

• 256Mb Flash ROM, UEFI AMI BIOS

• ASUS EZ DIY features (CrashFree BIOS 3, EZ Flash 3, MyHotkey)

Operating System:

• Windows 11
