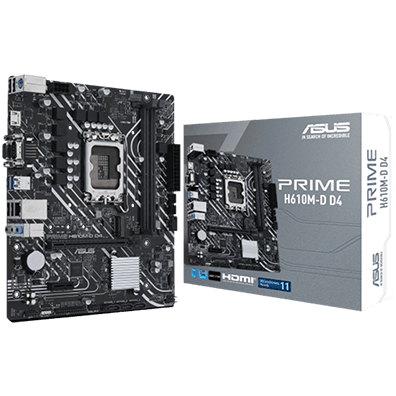

Asus Prime H610M-D

Model
ASUS PRIME H610M-D D4

CPU Support

• Intel® Socket LGA1700 for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 (depending on CPU)

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM, up to 64GB DDR4 3200/3000/2933/2800/2666/2400/2133 MHz (Non-ECC, Un-buffered)

• Dual channel architecture

• Supports Intel® XMP

Graphics Outputs

• 1 x HDMI port (supports 4K@60Hz with HDMI 2.1)

• 1 x D-Sub port
  Graphics support depends on CPU capabilities

Expansion Slots

• 1 x PCIe 4.0 x16 slot (from CPU)

• 1 x PCIe 3.0 x1 slot (from chipset)

Storage

• 1 x M.2 slot (PCIe 3.0 x4 & SATA mode, type 2242/2260/2280)

• 4 x SATA 6Gb/s ports
  Note: M.2 SATA mode disables SATA6G_4 port

Networking

• 1 x Realtek 1Gb Ethernet port

USB Ports

• Rear I/O:

  • 2 x USB 3.2 Gen 1 Type-A

  • 4 x USB 2.0 Type-A

• Internal headers:

  • 1 x USB 3.2 Gen 1 header (supports 2 additional ports)

  • 1 x USB 2.0 header (supports 2 additional ports)

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Jack detection, Multi-streaming, Front Panel Jack-retasking

  • Supports up to 24-bit/192 kHz playback

• Audio shielding, premium capacitors, dedicated audio PCB layers
  Requires HD audio front panel for full 7.1 output

Back Panel I/O

• 2 x USB 3.2 Gen 1 Type-A

• 4 x USB 2.0 Type-A

• 1 x HDMI port

• 1 x D-Sub port

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• 1 x COM port

• 1 x PS/2 Keyboard/Mouse combo port

Internal Connectors

• 1 x 24-pin ATX power

• 1 x 8-pin CPU power

• 1 x CPU Fan header (4-pin)

• 1 x Chassis Fan header (4-pin)

• 1 x RGB header

• 1 x Front Panel Audio (AAFP)

• 1 x Clear CMOS header

• 1 x Speaker header

• 1 x LPT header

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1 pin)

• 1 x System Panel header (10-1 pin)

Special Features

• ASUS 5X PROTECTION III:

  • DIGI+ VRM

  • LANGuard

  • Overvoltage Protection

  • SafeSlot Core

  • Stainless Steel Back I/O

• Q-Design: Q-DIMM, Q-Slot

• Aluminum heatsink

• RGB lighting control via RGB header

Software Features

• Armoury Crate

• AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert)

• ASUS CPU-Z

• Norton Antivirus (Trial)

• WinRAR

BIOS

• 128 Mb UEFI AMI BIOS

• Features: CrashFree BIOS 3, EZ Flash 3, EZ Mode

Manageability

• WOL by PME, PXE

Accessories

• 2 x SATA 6Gb/s cables

• 1 x I/O Shield

• 1 x M.2 Anchor

• 1 x Support DVD

• 1 x User Guide

Operating System Support

• Windows 11 64-bit

• Windows 10 64-bit

Form Factor

• Micro-ATX (23.4 cm x 20.3 cm / 9.2 inch x 8.0 inch)
