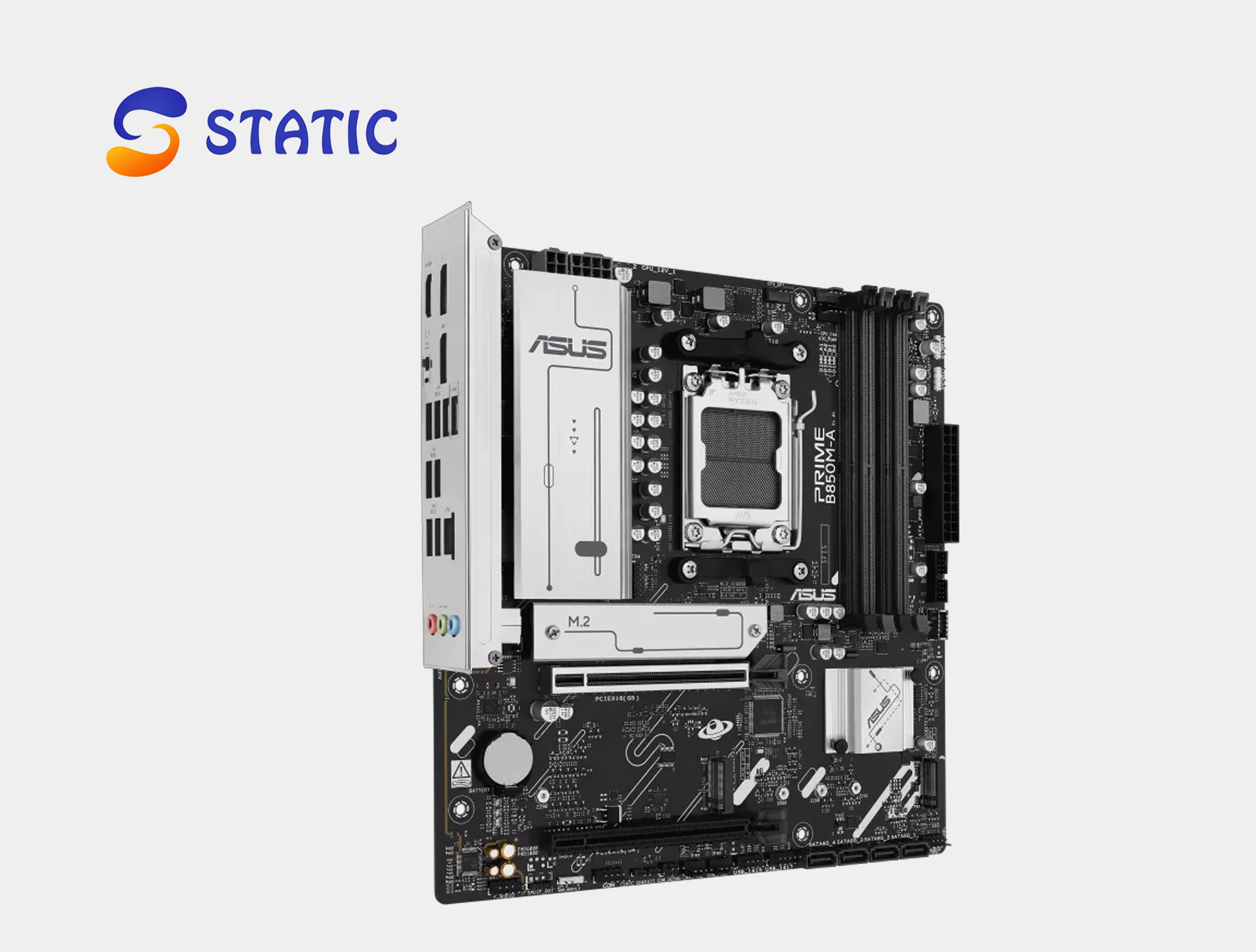

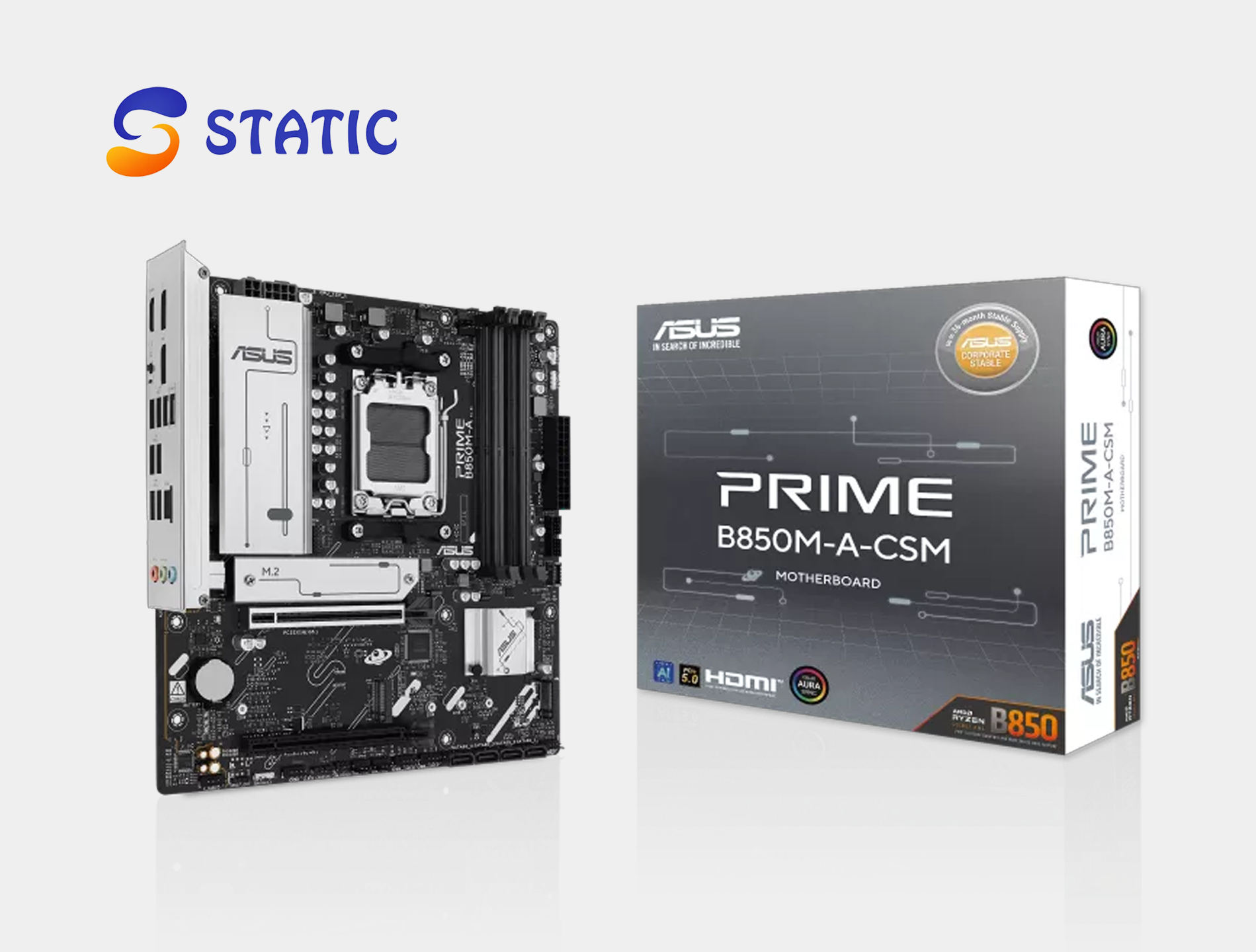

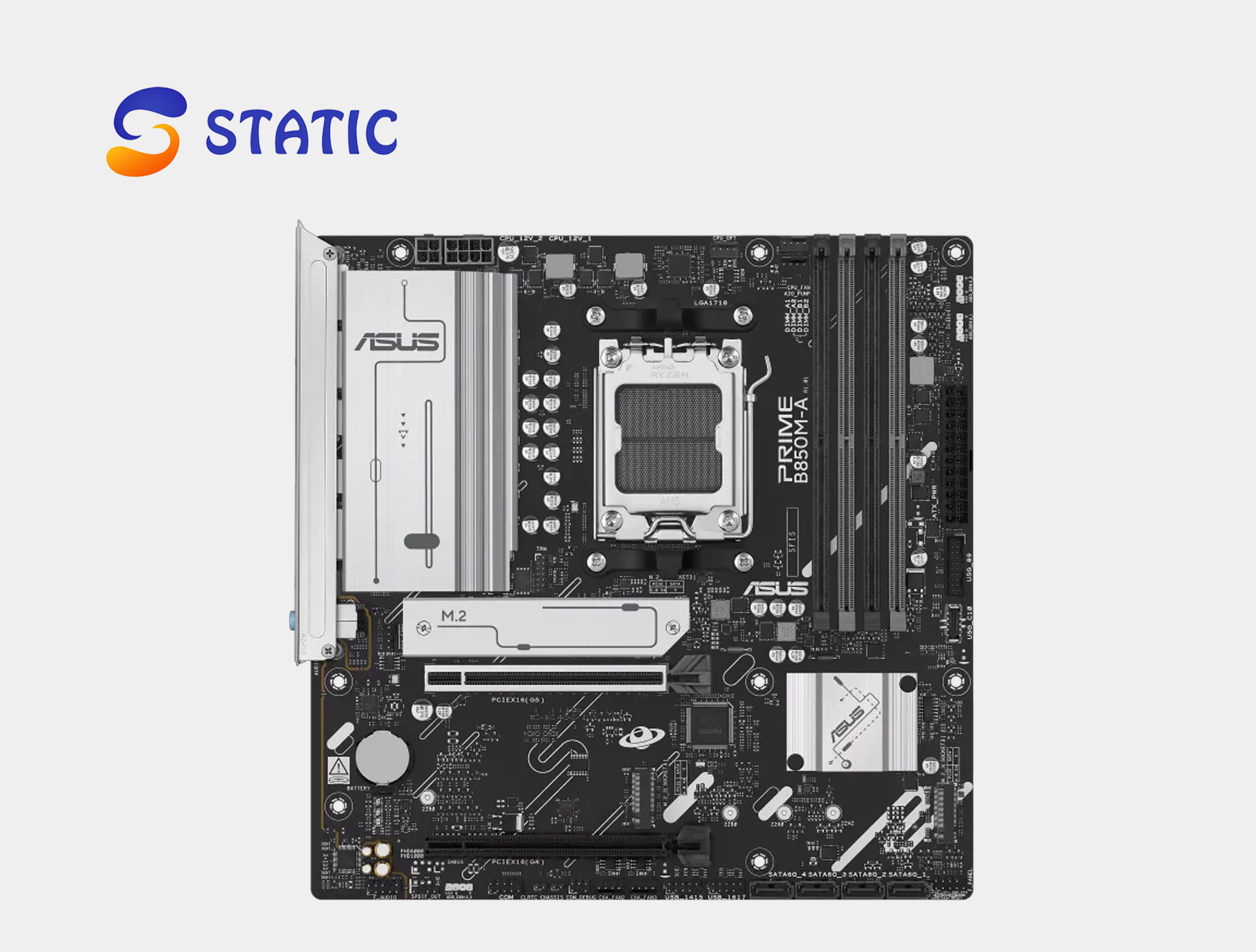

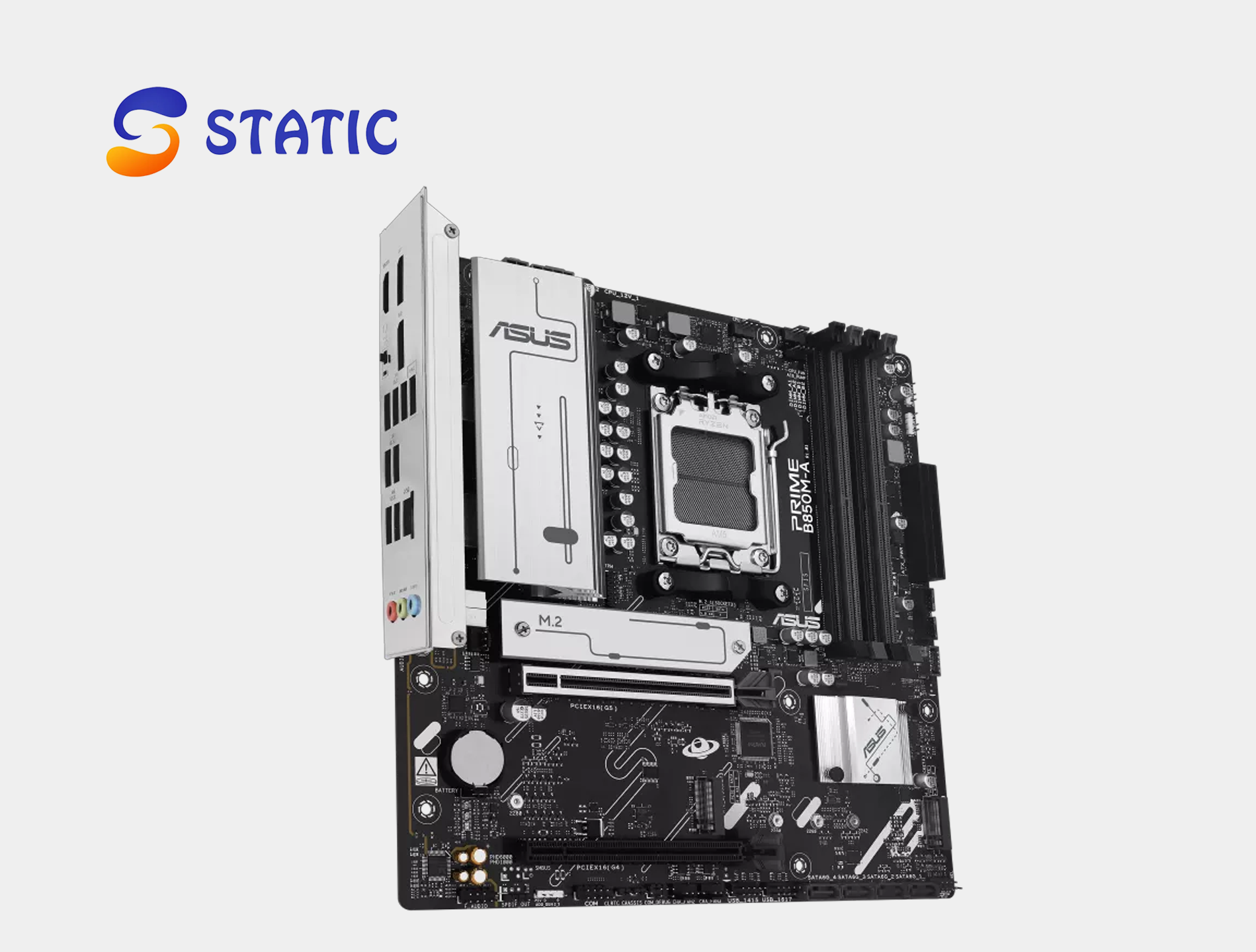

Asus Prime B850M-A CSM

The ASUS Prime B850M-A CSM is a modern Micro ATX motherboard designed to provide a strong foundation for AMD Ryzen desktop processors using the AM5 platform. Powered by the AMD B850 chipset, the ASUS Prime B850M-A CSM combines support for high-performance DDR5 memory, PCIe 5.0 connectivity, multiple M.2 storage slots, 2.5Gb Ethernet, and comprehensive connectivity in a compact 24.4 x 24.4cm form factor.

The ASUS Prime B850M-A CSM supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors and can accommodate CPUs up to 170W. This makes the motherboard suitable for modern gaming PCs, productivity systems, and performance-oriented builds. The AM5 platform also provides access to newer-generation processors and technologies, making the ASUS Prime B850M-A CSM a suitable choice for users planning a long-term upgradeable system.

For memory, the motherboard features four DDR5 DIMM slots with support for up to 256GB of RAM. Compatible Ryzen processors can support memory speeds of up to DDR5-8000+ MT/s through overclocking. AMD EXPO and ASUS Enhanced Memory Profile (AEMP) technologies make it easier to optimize compatible memory kits for improved system performance.

Expansion support is another highlight of the ASUS Prime B850M-A CSM. With Ryzen 9000 and 7000 Series processors, the primary PCIe slot supports PCIe 5.0 x16, providing high-bandwidth connectivity for modern graphics cards and other expansion devices. The motherboard also includes an additional PCIe 4.0 x16 slot operating in x1 mode.

Storage connectivity is particularly strong. The ASUS Prime B850M-A CSM provides three M.2 slots and four SATA 6Gb/s ports. With compatible Ryzen 9000 and 7000 Series processors, the primary M.2 slot supports PCIe 5.0 x4, while additional M.2 slots provide PCIe 4.0 connectivity. AMD RAIDXpert2 technology also provides multiple RAID configurations depending on the processor series.

Networking is handled by a Realtek 2.5Gb Ethernet controller with ASUS LANGuard. The ASUS Prime B850M-A CSM also provides eight rear USB ports, including 10Gbps and 5Gbps Type-A connectivity, while front headers provide additional USB expansion.

For cooling and customization, the motherboard includes CPU, CPU OPT, AIO Pump, and chassis fan headers, along with Addressable RGB Gen 2 headers. ASUS also includes BIOS FlashBack, Q-Dashboard, Q-LED Core, Q-DIMM, Q-Slot, VRM and M.2 heatsinks, and ASUS 5X Protection III.

Why Choose ASUS Prime B850M-A CSM?

The ASUS Prime B850M-A CSM is an excellent option for users who want the features of a modern AMD AM5 platform in a compact Micro ATX motherboard. Its combination of PCIe 5.0, DDR5 memory support, multiple M.2 slots, and 2.5Gb Ethernet makes the ASUS Prime B850M-A CSM suitable for gaming, content creation, and high-performance everyday computing.

One of its biggest advantages is processor compatibility. The ASUS Prime B850M-A CSM supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, giving users flexibility when choosing their CPU. Support for processors up to 170W also makes it suitable for demanding configurations.

Memory performance is another major strength. Four DDR5 slots support up to 256GB, with speeds reaching up to 8000+ MT/s through overclocking on supported Ryzen processors. AMD EXPO and ASUS AEMP provide additional options for optimizing compatible memory kits.

Storage enthusiasts will also benefit from the three M.2 slots. The primary M.2 slot can provide PCIe 5.0 x4 performance with supported Ryzen 9000 and 7000 Series processors, while additional PCIe 4.0 M.2 connectivity allows users to install multiple high-speed NVMe SSDs. Four SATA 6Gb/s ports provide further storage expansion.

The ASUS Prime B850M-A CSM also offers a strong connectivity package, including Realtek 2.5Gb Ethernet, USB 10Gbps and 5Gbps ports, dual DisplayPort outputs, HDMI, and multiple audio connections. Its AIO Pump and chassis fan headers make it suitable for more advanced cooling setups.

ASUS has also equipped the ASUS Prime B850M-A CSM with practical building and maintenance features such as BIOS FlashBack, Q-LED Core, Q-Dashboard, Q-DIMM, Q-Slot, pre-mounted I/O shielding, VRM and M.2 heatsinks, and ASUS 5X Protection III.

With its compact size and modern feature set, the ASUS Prime B850M-A CSM provides a balanced platform for building a powerful and upgradeable AMD Ryzen PC.

Specifications

Model
PRIME B850M-A-CSM

Socket
AMD Socket AM5

CPU Support
AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors

CPU Support Power
Up to 170W

Chipset
AMD B850

Memory
4 x DDR5 DIMM Slots
Up to 256GB
Up to DDR5-8000+ MT/s (OC)
Dual Channel
ECC and Non-ECC Unbuffered Memory
AMD EXPO
ASUS AEMP

Graphics Outputs
2 x DisplayPort, up to 8K@30Hz
1 x HDMI, up to 4K@60Hz

Expansion Slots
1 x PCIe 5.0 x16 with supported Ryzen 9000/7000 CPUs
1 x PCIe 4.0 x16 operating in x1 mode
PCIe configuration varies depending on CPU

M.2 Slots
3 x M.2 Key M
M.2_1: PCIe 5.0 x4 with supported Ryzen 9000/7000 processors
M.2_2: PCIe 4.0 x4
M.2_3: PCIe 4.0 x4

SATA
4 x SATA 6Gb/s

RAID Support
AMD RAIDXpert2
Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10

Ethernet
Realtek 2.5Gb Ethernet
ASUS LANGuard

Rear USB
2 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0 Type-A

Front USB
1 x USB 5Gbps Type-C Header
1 x USB 5Gbps Header
2 x USB 2.0 Headers

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Up to 24-bit/192kHz playback

Audio Features
Audio Shielding
Premium Audio Capacitors
Dedicated Audio PCB Layers

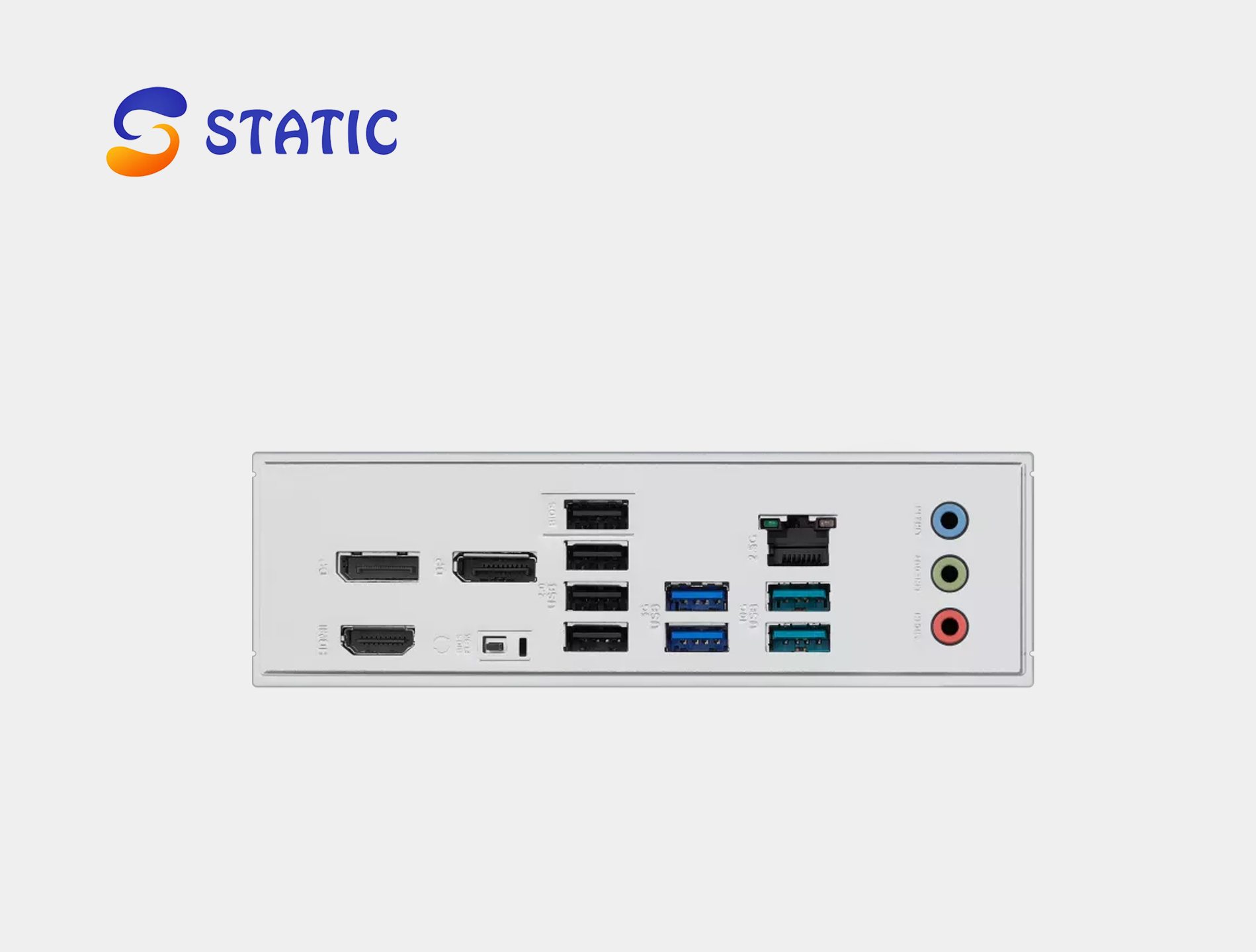

Back Panel I/O
8 x USB Ports
2 x DisplayPort
1 x HDMI
1 x 2.5Gb Ethernet
3 x Audio Jacks
BIOS FlashBack Button

Cooling Headers
1 x CPU Fan Header
1 x CPU OPT Fan Header
1 x AIO Pump Header
3 x Chassis Fan Headers

Power Connectors
1 x 24-pin Main Power
1 x 8-pin +12V CPU Power
1 x 4-pin +12V CPU Power

RGB Support
3 x Addressable RGB Gen 2 Headers

Special Features
ASUS 5X Protection III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
Q-Dashboard
Q-DIMM
Q-LED Core
Q-Slot
M.2 Heatsink
VRM Heatsink
BIOS FlashBack
Pre-mounted I/O Shield
Aura Sync

BIOS
256Mb Flash ROM
UEFI AMI BIOS

Operating System Support
Windows 11
Windows 10 64-bit

Form Factor
Micro ATX
24.4 x 24.4cm
