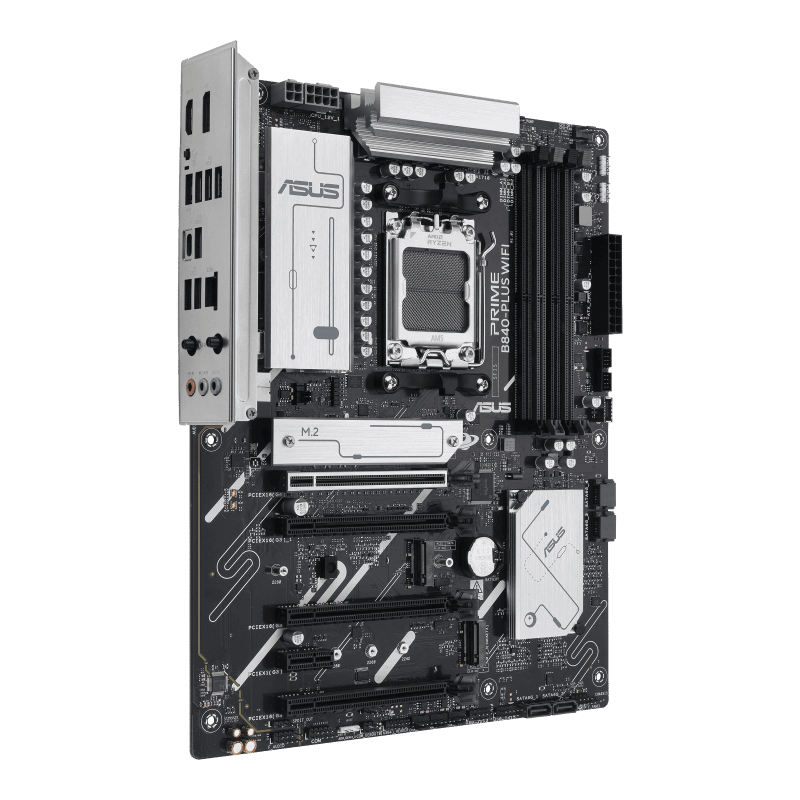

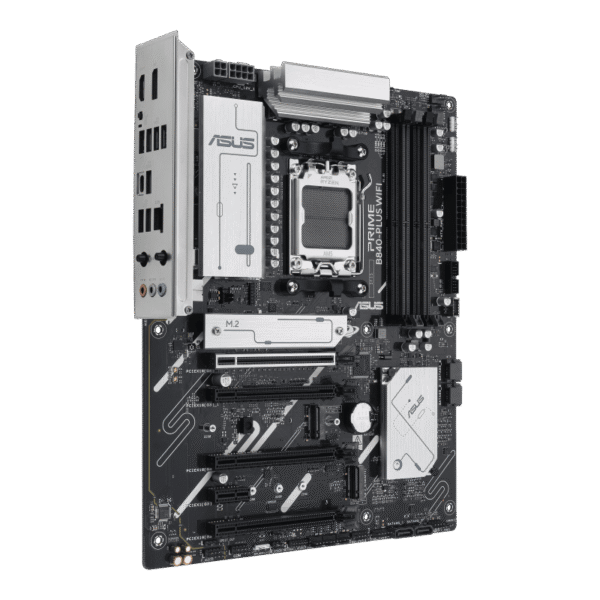

ASUS PRIME B840-PLUS WIFI Motherboard

CPU

• Socket: AMD Socket AM5.
• Compatibility: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.

Chipset

• AMD B840 Chipset.

Memory (RAM)

• 4 DIMM slots, supporting up to 192GB.
• Type: DDR5, with speeds up to 7600+ MT/s (OC).
• Supports AMD EXPO™ and ASUS AEMP profiles.
• ECC and Non-ECC Un-buffered DIMM support.

Graphics

• DisplayPort: Supports up to 8K@30Hz (DisplayPort 1.4).
• HDMI: Supports 4K@60Hz (HDMI 2.1).

Expansion Slots

• PCIe 4.0 and PCIe 3.0 slots (depending on CPU type).
• Supports up to 4 PCIe slots for various configurations.

Storage

• 3 x M.2 slots (supports PCIe 4.0/3.0 modes).
• 4 x SATA 6Gb/s ports.
• RAID support (varies by CPU type).

Networking

• Ethernet: Realtek 2.5Gb Ethernet with ASUS LANGuard.

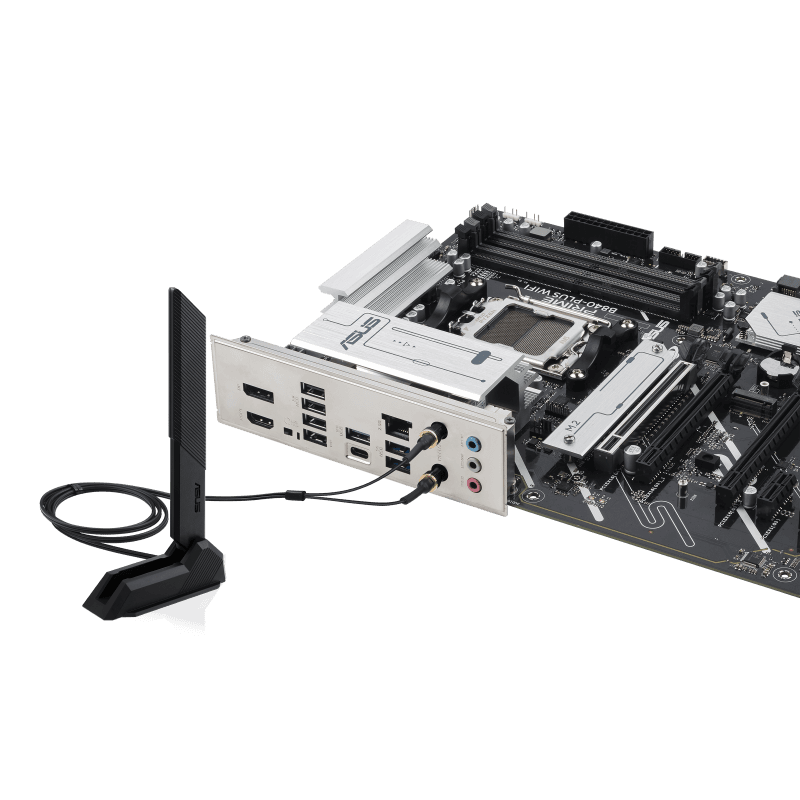

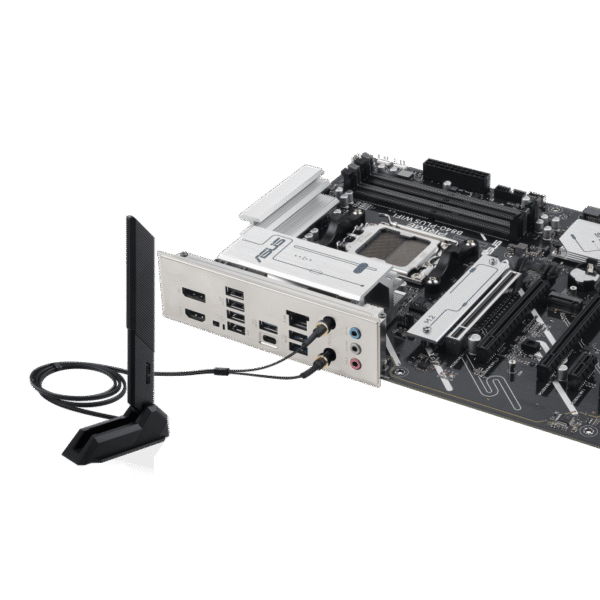

• Wi-Fi: Wi-Fi 6E (2×2), supporting 2.4/5/6GHz bands.
• Bluetooth: Version 5.3.

USB Ports

• Rear: 8 ports (including USB Type-C and USB 3.2).
• Front: Support for up to 7 additional ports.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC.
• Features: Audio Shielding, Premium Audio Capacitors, and dedicated audio PCB layers.

Cooling and Power

• Multiple fan headers (4-pin), including support for AIO pumps.
• Power connectors: 24-pin main power and additional CPU power connectors (8-pin + 4-pin).

Special Features

• ASUS 5X PROTECTION III (including SafeSlot Core+ and Overvoltage Protection).
• Q-Design features (Q-Antenna, Q-LED Core, etc.).
• Aura Sync RGB lighting with Addressable Gen 2 headers.
• Enhanced thermal design with VRM heatsinks and M.2 heatsinks.

Software and OS

• Compatible with Windows® 11 and Windows® 10 (64-bit).
• Included software: Armoury Crate, Fan Xpert 2+, ASUS CPU-Z, and trial versions of Norton 360 Deluxe, Adobe Creative Cloud, and WinRAR.

Accessories

• SATA cables.
• ASUS Wi-Fi Q-Antenna.
• M.2 screws and rubber packages.

Dimensions and Form Factor

• ATX form factor (30.5 x 24.4 cm).
