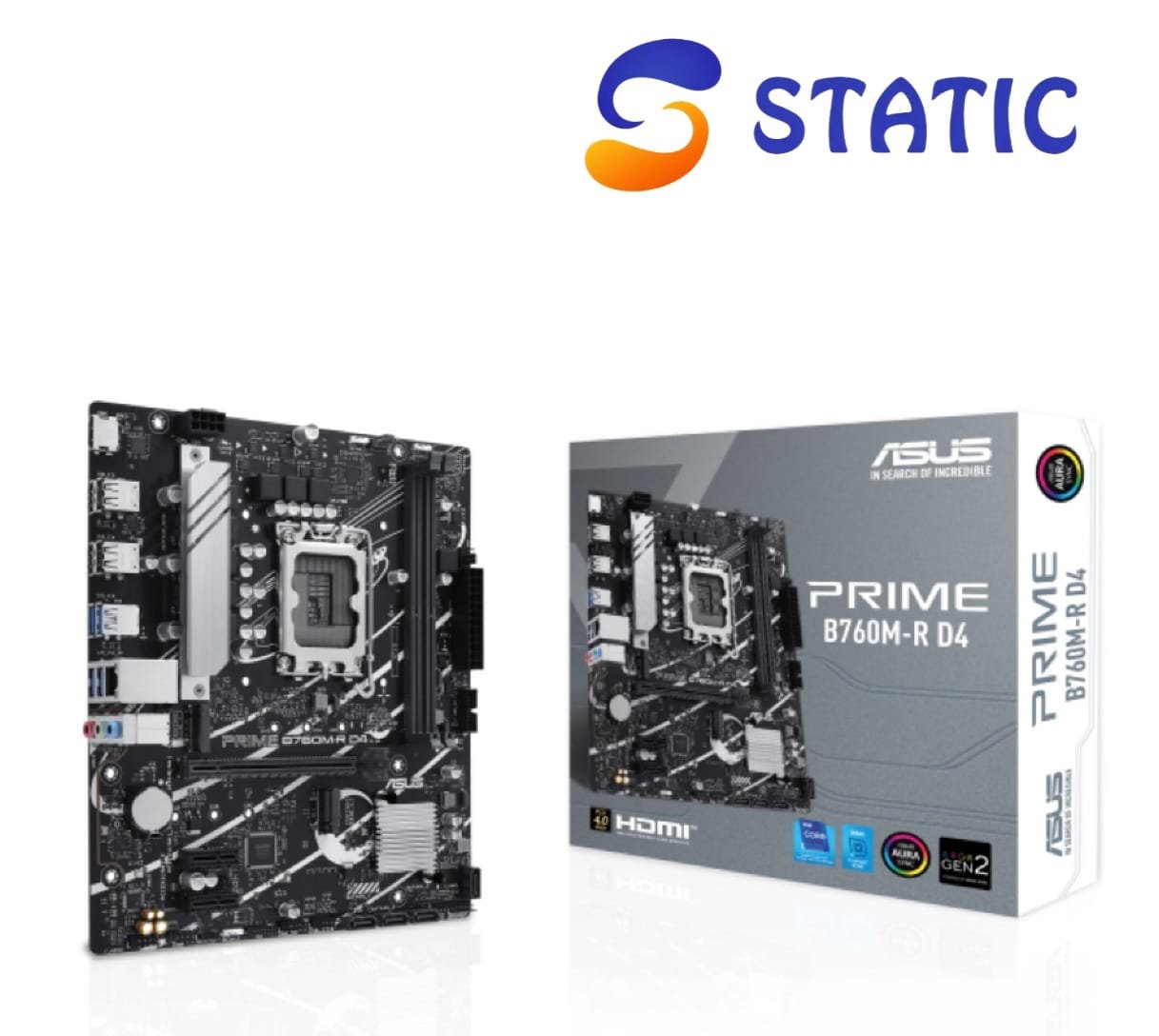

ASUS PRIME B760M-R D4

CPU

• Socket: Intel® LGA1700
• Supported Processors: Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
• Technology Support: Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Chipset: Intel® B760

Memory

• Slots: 2 x DIMM
• Max Capacity: 64GB
• Supported Memory: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Architecture: Dual Channel
• Features: Intel® Extreme Memory Profile (XMP) memory module

Graphics

• Ports:
  • 1 x HDMI™ (Supports 4K@60Hz as specified in HDMI 2.1)

Expansion Slots

• Intel® Core™ Processors (14th, 13th & 12th Gen):
  • 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset:
  • 2 x PCIe 4.0 x1 slots

Storage

• Total: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• M.2 Slots:
  • M.2_1: Key M, type 2242/2260/2280 (PCIe 4.0 x4 mode)
  • M.2_2: Key M, type 2242/2260/2280 (PCIe 4.0 x4 mode)
• Features: Intel® Rapid Storage Technology (supports SATA RAID 0/1/5/10)

Ethernet

• Ports: 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (8 ports):
  • 4 x USB 5Gbps ports (Type-A)
  • 4 x USB 2.0 ports (Type-A)
• Front USB (6 ports):
  • 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)

Audio

• Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Features:
  • Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

Back Panel I/O Ports

• 4 x USB 5Gbps ports (Type-A)
• 4 x USB 2.0 ports (Type-A)
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Internal I/O Connectors

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers
• Power Related:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage Related:
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
  • 2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III:
  • DIGI+ VRM
  • LANGuard
  • Overvoltage protection
  • SafeSlot Core
  • Stainless-steel back I/O
• ASUS Q-Design:
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS EZ DIY:
  • ProCool
• ASUS Thermal Solution:
  • VRM heatsink design
• Aura Sync:
  • Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software:
  • Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation)
  • AI Suite 3 (DIGI+ VRM, PC Cleaner)
  • ASUS CPU-Z
  • Norton 360 Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)

BIOS

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• Manageability: WOL by PME, PXE

Accessories

• Cables:
  • 2 x SATA 6Gb/s cables
• Miscellaneous:
  • 1 x I/O shield
  • 2 x M.2 anchors
• Documentation:
  • 1 x Quick start guide

Operating System

• Supported OS: Windows® 11, Windows® 10 64-bit

Form Factor

• Form Factor: micro-ATX
• Dimensions: 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
