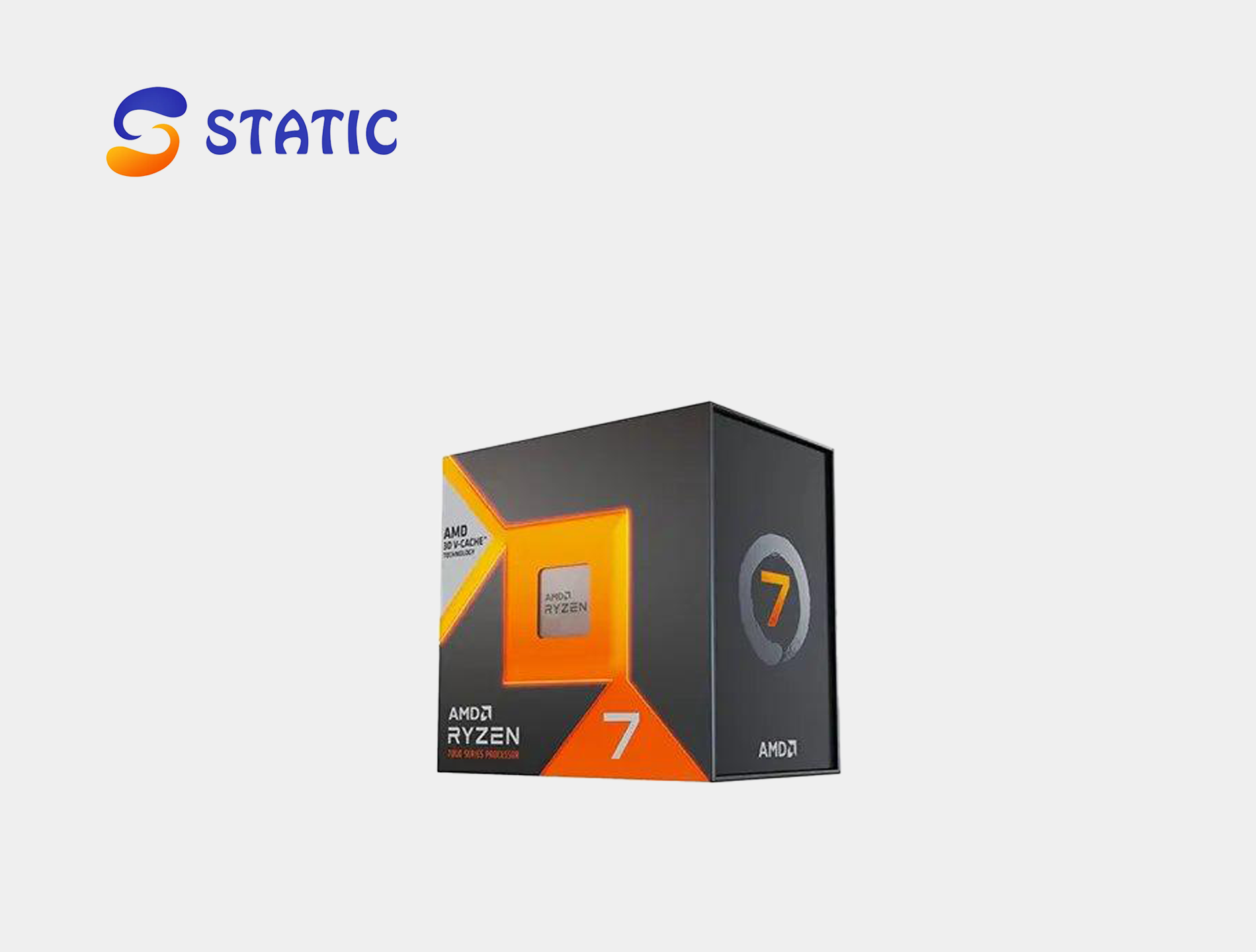

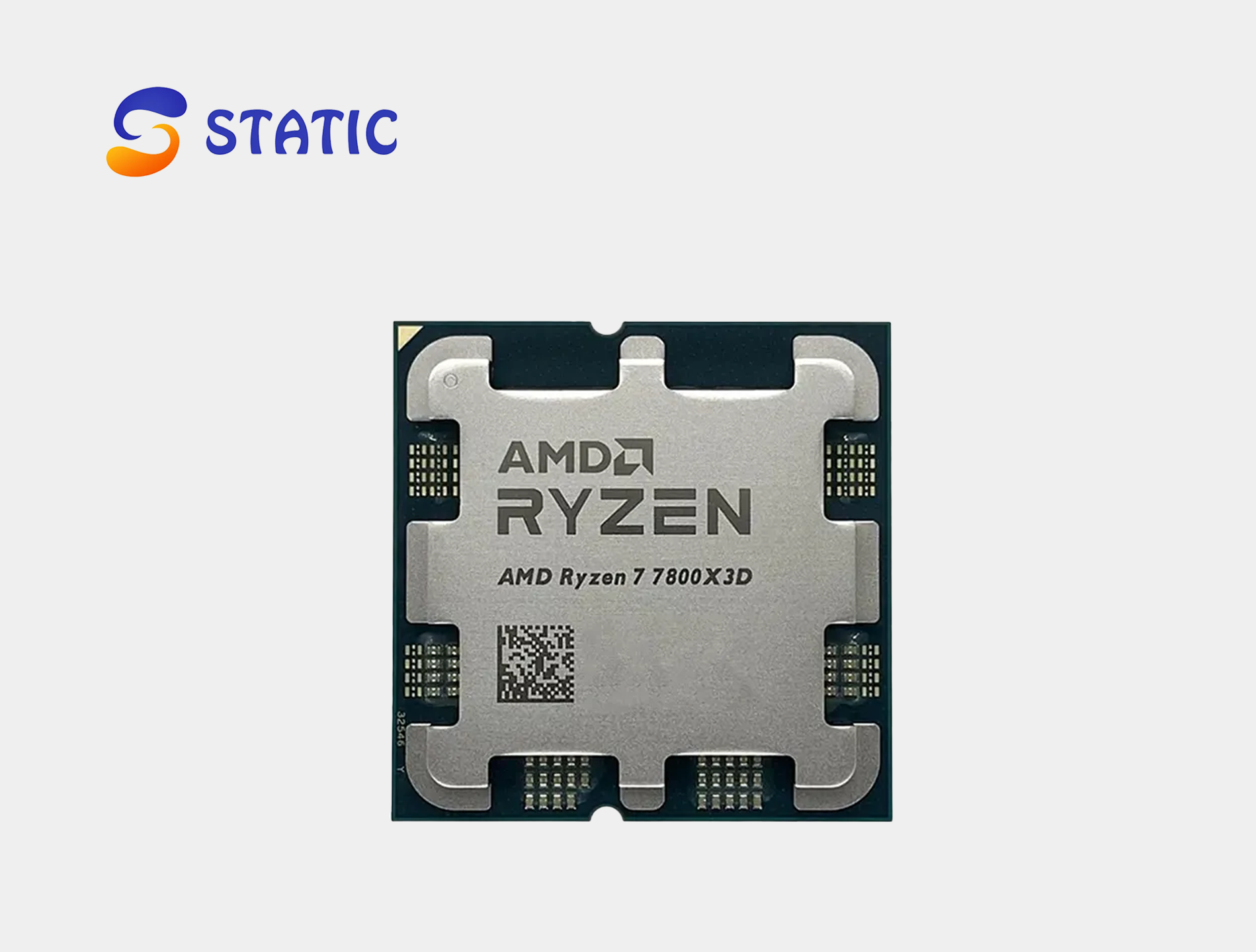

NameAMD Ryzen™ 7 7800X3D
FamilyRyzen
SeriesRyzen 7000 Series
Form FactorDesktops , Boxed Processor
Market SegmentEnthusiast Desktop
AMD PRO TechnologiesNo
Consumer UseYes
Regional AvailabilityGlobal
Former CodenameRaphael AM5
ArchitectureZen 4
# of CPU Cores8
Multithreading (SMT)Yes
# of Threads16
Max. Boost Clock Up to 5 GHz
Base Clock 4.2 GHz
L1 Cache512 KB
L2 Cache8 MB
L3 Cache96 MB
Default TDP120W
Processor Technology for CPU CoresTSMC 5nm FinFET
Processor Technology for I/O DieTSMC 6nm FinFET
CPU Compute Die (CCD) Size71mm²
I/O Die (IOD) Size122mm²
Package Die Count2
AMD EXPO™ Memory Overclocking TechnologyYes
Precision Boost OverdriveYes
Curve Optimizer Voltage OffsetsYes
AMD Ryzen™ Master SupportYes
CPU SocketAM5
Supporting ChipsetsA620 , X670E , X670 , B650E , B650
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)Not Included
Recommended CoolerLiquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)89°C
Launch Date04/06/2023
*OS SupportWindows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
