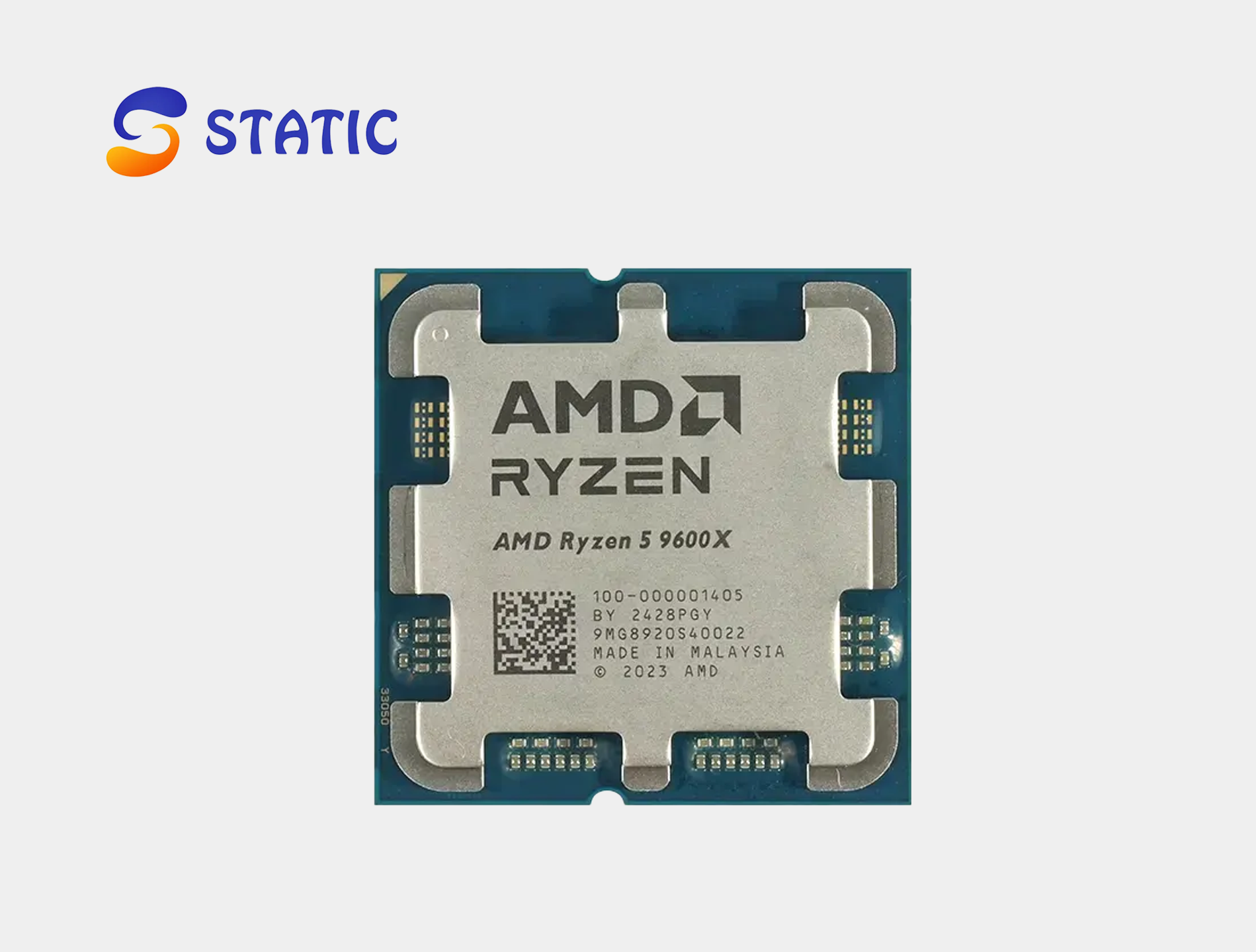

AMD Ryzen 5 9600X Tray

The AMD Ryzen 5 9600X is a powerful next-generation desktop processor built on AMD’s advanced Zen 5 architecture, delivering exceptional performance for gaming, content creation, and multitasking. Designed for the AM5 platform, this processor provides strong performance improvements, modern connectivity, and support for the latest hardware technologies.

Featuring 6 cores and 12 threads, the AMD Ryzen 5 9600X is capable of handling demanding workloads with ease. With a boost clock up to 5.4 GHz, it delivers fast single-core performance that is ideal for modern games and productivity applications.

Built using TSMC 4nm manufacturing technology, the processor offers improved power efficiency while maintaining strong performance. With a 65W TDP, it balances power consumption and performance, making it suitable for high-performance gaming systems and everyday desktop use.

The processor supports DDR5 memory and PCIe 5.0, ensuring compatibility with next-generation GPUs and ultra-fast NVMe SSDs. It also includes integrated AMD Radeon graphics, allowing basic display output without requiring a dedicated graphics card.

Additionally, the AMD Ryzen 5 9600X supports advanced technologies such as Precision Boost Overdrive, AMD EXPO memory overclocking, and Ryzen Master tuning, giving enthusiasts greater control over performance and system optimization.

With its strong gaming performance, modern platform support, and excellent efficiency, the AMD Ryzen 5 9600X is an excellent choice for building a powerful and future-ready desktop PC.

Why Choose AMD Ryzen 5 9600X?

Next-Generation Zen 5 Architecture
Built on AMD’s latest Zen 5 architecture for improved performance and efficiency.

High Clock Speeds
Boost clock up to 5.4 GHz for excellent gaming and application performance.

6 Cores and 12 Threads
Ideal for gaming, streaming, and multitasking workloads.

DDR5 Memory Support
Supports modern DDR5 memory for faster system responsiveness.

PCIe 5.0 Connectivity
Provides next-generation support for GPUs and NVMe storage devices.

Integrated Radeon Graphics
Includes built-in graphics for basic display output without a discrete GPU.

Overclocking Support
Unlocked processor with Precision Boost Overdrive and EXPO memory tuning.

Efficient 65W TDP
Balanced power consumption with strong performance output.

Specifications

General

Processor Name: AMD Ryzen™ 5 9600X

Series: Ryzen 9000 Series

Architecture: Zen 5

Codename: Granite Ridge

Socket: AM5

Market Segment: Enthusiast Desktop

CPU Performance

Cores: 6

Threads: 12

Base Clock: 3.9 GHz

Max Boost Clock: Up to 5.4 GHz

Unlocked for Overclocking: Yes

Precision Boost Technology: Precision Boost 2

Cache

L1 Cache: 480 KB

L2 Cache: 6 MB

L3 Cache: 32 MB

Manufacturing Process

CPU Core Process: TSMC 4nm FinFET

I/O Die Process: TSMC 6nm FinFET

Power

Default TDP: 65W

Max Operating Temperature: 95°C

Cooling Solution: Not Included

Memory Support

Memory Type: DDR5

Memory Channels: Dual Channel

Maximum Capacity: 256 GB

Maximum Speed: DDR5-5600

Memory Overclocking: AMD EXPO™

Graphics

Integrated Graphics: AMD Radeon™ Graphics

Graphics Cores: 2

Graphics Frequency: 2200 MHz

Display Support: USB-C DisplayPort Alternate Mode

Connectivity

PCI Express Version: PCIe 5.0

Total PCIe Lanes: 28

Usable PCIe Lanes: 24

Supported Chipsets

X870E

X870

X670E

X670

B650E

B650

B850

B840

A620

Operating System Support

Windows 11 64-bit

Windows 10 64-bit

Linux (Ubuntu / RHEL)
