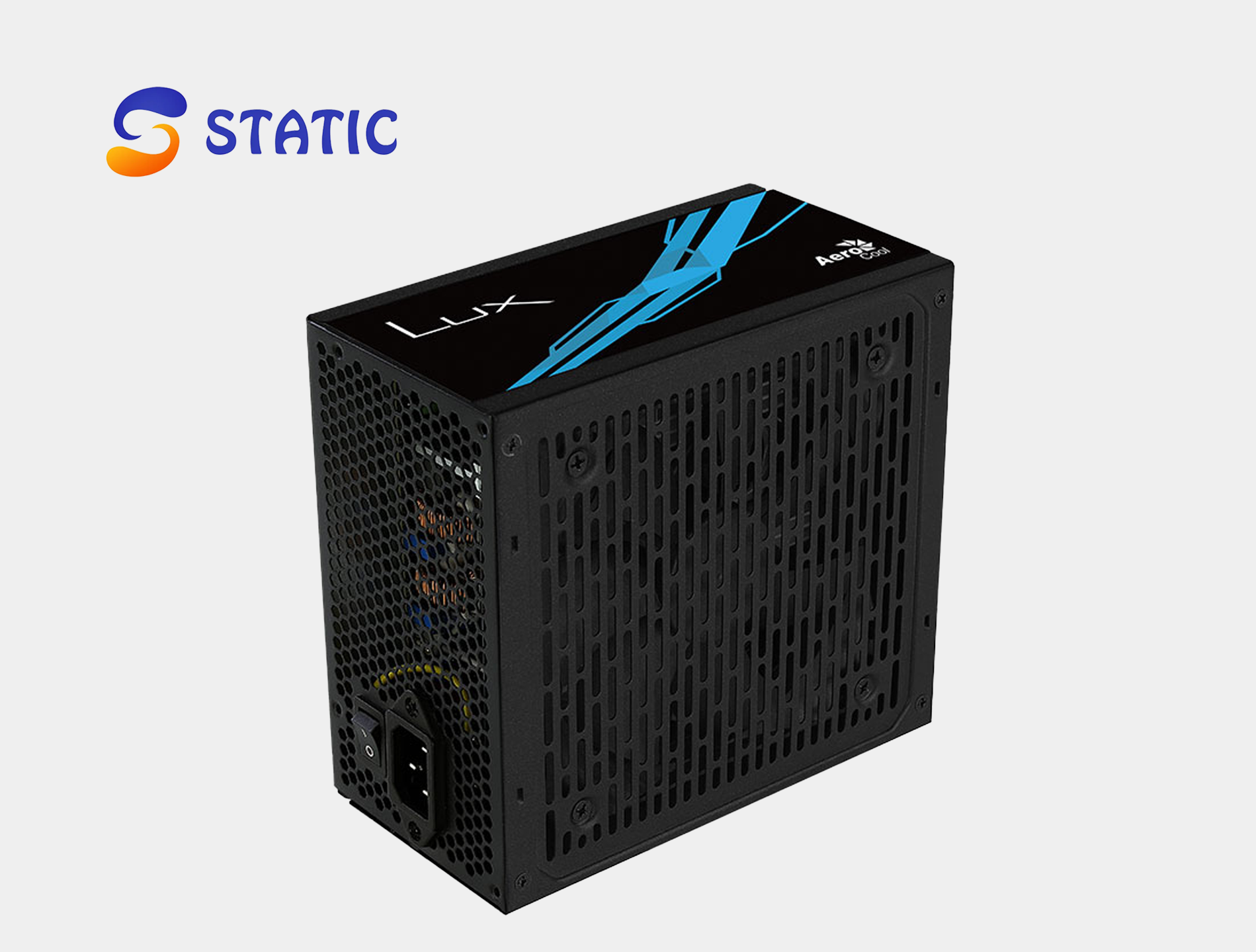

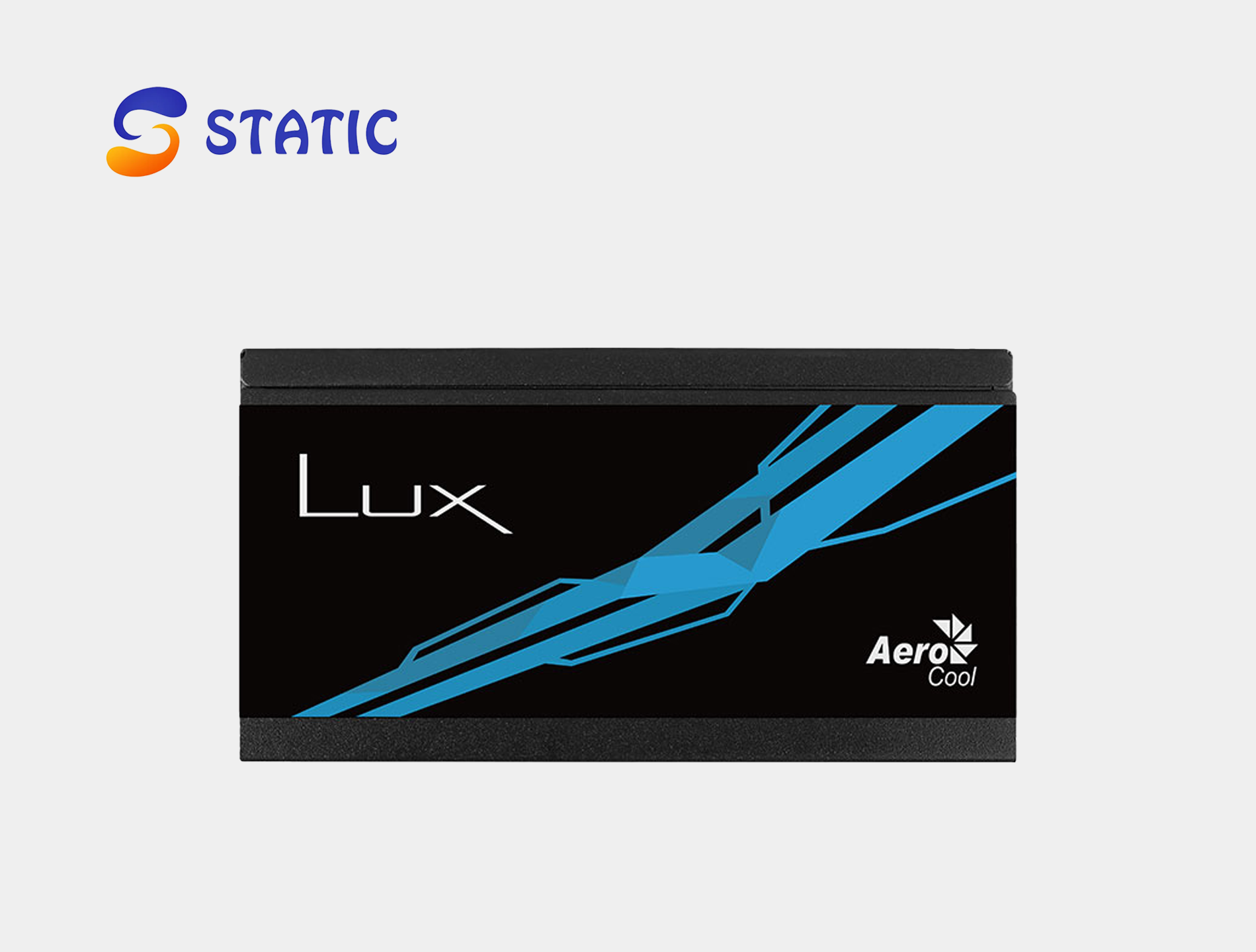

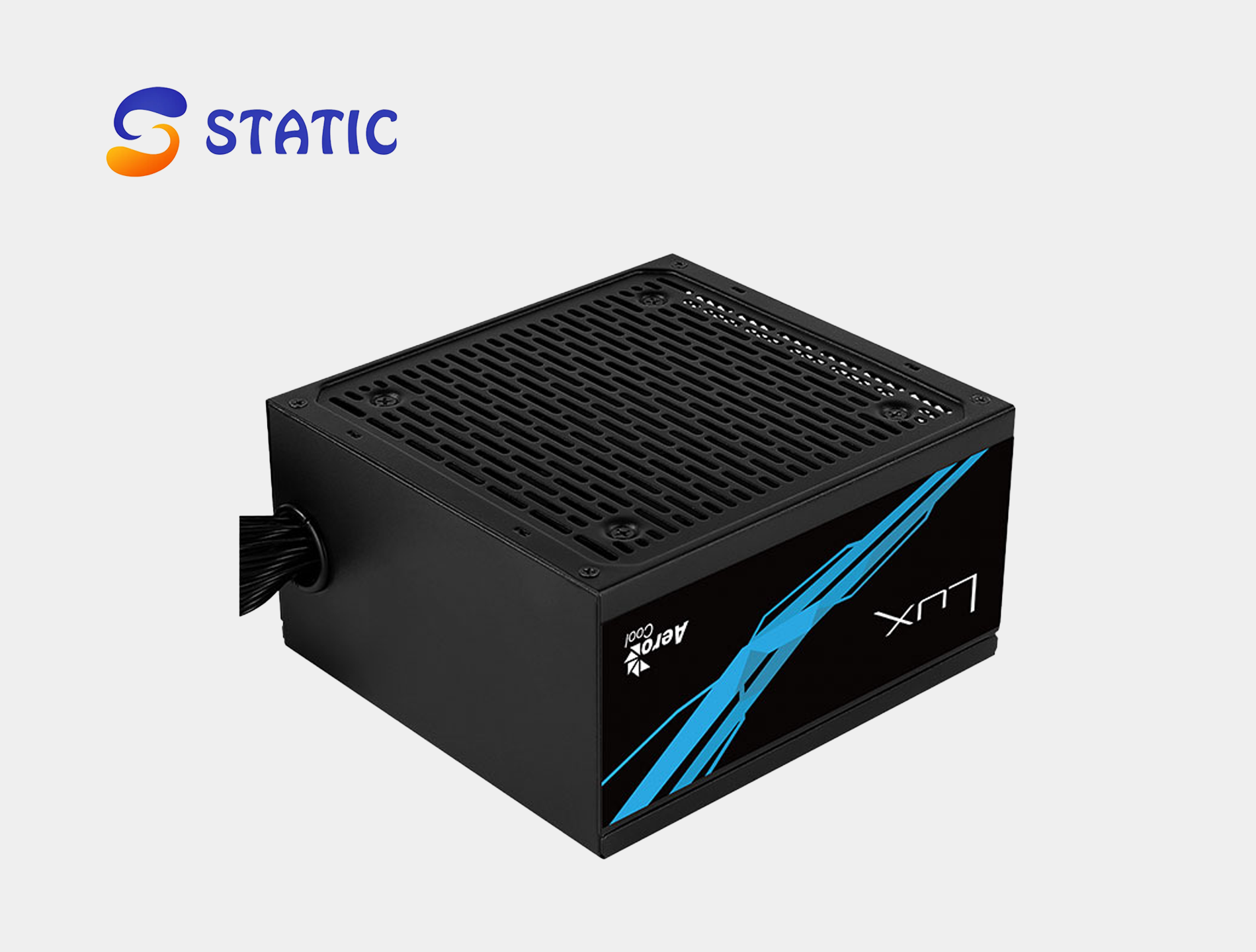

The AEROCOOL LUX 550W 80 Plus Bronze is a reliable power supply designed for gaming PCs, home systems, and everyday builds that require stable power delivery and efficient operation. With 550W total power output, 80 Plus Bronze efficiency, and a strong +12V rail capable of delivering up to 504W, the LUX 550W provides dependable power for modern PC components.

The power supply features a 200–240V AC input and is designed to deliver stable DC power across multiple voltage rails. Its +12V rail can provide up to 42A with a maximum combined output of 504W, making it the primary power source for demanding components such as the CPU and graphics card. The +3.3V and +5V rails provide a combined maximum power of 100W for other essential PC components.

With an 80 Plus Bronze efficiency rating, the AEROCOOL LUX 550W is designed to operate efficiently while helping reduce unnecessary energy loss and heat generation. This makes it a suitable choice for users looking to build a balanced and efficient gaming or productivity PC.

The AEROCOOL LUX 550W includes the essential connectors required for a standard PC build. It comes with a 20+4-pin motherboard connector, a 4+4-pin CPU power connector, and a PCIe 6+2-pin connector for a compatible graphics card. Storage and peripheral devices are supported through four SATA connectors and two PATA Molex connectors.

The cable lengths provide flexibility during installation, with a 550mm motherboard cable, 600mm CPU cable, and 500mm PCIe cable. The peripheral cables also include multiple SATA and Molex connectors, helping users connect SSDs, HDDs, fans, and other compatible components.

Whether you’re building an entry-level gaming PC, an everyday desktop, or a balanced productivity system, the AEROCOOL LUX 550W 80 Plus Bronze offers stable power delivery, essential connectivity, and efficient performance in a practical 550W design.

Why Choose AEROCOOL LUX 550W 80 Plus Bronze

The AEROCOOL LUX 550W is a great choice for users looking for a dependable 550W power supply with efficient performance and the essential connectors needed for a modern PC build. Its strong +12V rail delivers up to 504W of combined power, providing reliable support for the CPU and compatible graphics cards.

One of its main advantages is the 80 Plus Bronze efficiency rating, which helps the power supply operate more efficiently and reduce wasted energy compared to standard power supplies. This makes it suitable for users building a balanced gaming or productivity PC.

The included PCIe 6+2-pin connector allows the power supply to support compatible graphics cards that require external PCIe power, while the 4+4-pin CPU connector provides the required power connection for the motherboard processor socket.

With four SATA connectors, users can connect multiple storage devices such as SATA SSDs and HDDs, while the two Molex connectors provide additional compatibility for older peripherals and accessories.

Combining 550W total power output, a powerful 42A +12V rail, 80 Plus Bronze efficiency, and essential motherboard, CPU, PCIe, SATA, and Molex connectivity, the AEROCOOL LUX 550W is a practical power supply for users building a reliable and efficient PC.

Specifications

General

• Product Name: AEROCOOL LUX 550W 80 Plus Bronze
• Power Output: 550W
• Efficiency Certification: 80 Plus Bronze
• AC Input: 200–240VAC, 4A, 50–60Hz
• EAN Code: 4718009156234

DC Output

• +3.3V: 20A
• +5V: 20A
• +12V: 42A
• -12V: 0.3A
• +5VSB: 2.5A

Maximum Combined Power

• +3.3V & +5V Combined: 100W
• +12V: 504W
• -12V: 3.6W
• +5VSB: 12.5W
• Total Power Output: 550W

Motherboard Connector

• 1 × 20+4 Pin
• Cable Length: 550mm

CPU Connector

• 1 × 4+4 Pin 12V
• Cable Length: 600mm

Graphics Card Connector

• 1 × PCIe 6+2 Pin
• Cable Length: 500mm

SATA & Peripheral Connectors

• 4 × SATA Connectors
• 2 × PATA (Molex) Connectors
• SATA Cable Lengths: 600mm / 750mm
• PATA Connector Position: Up to 850mm
