Aerocool D520A Black

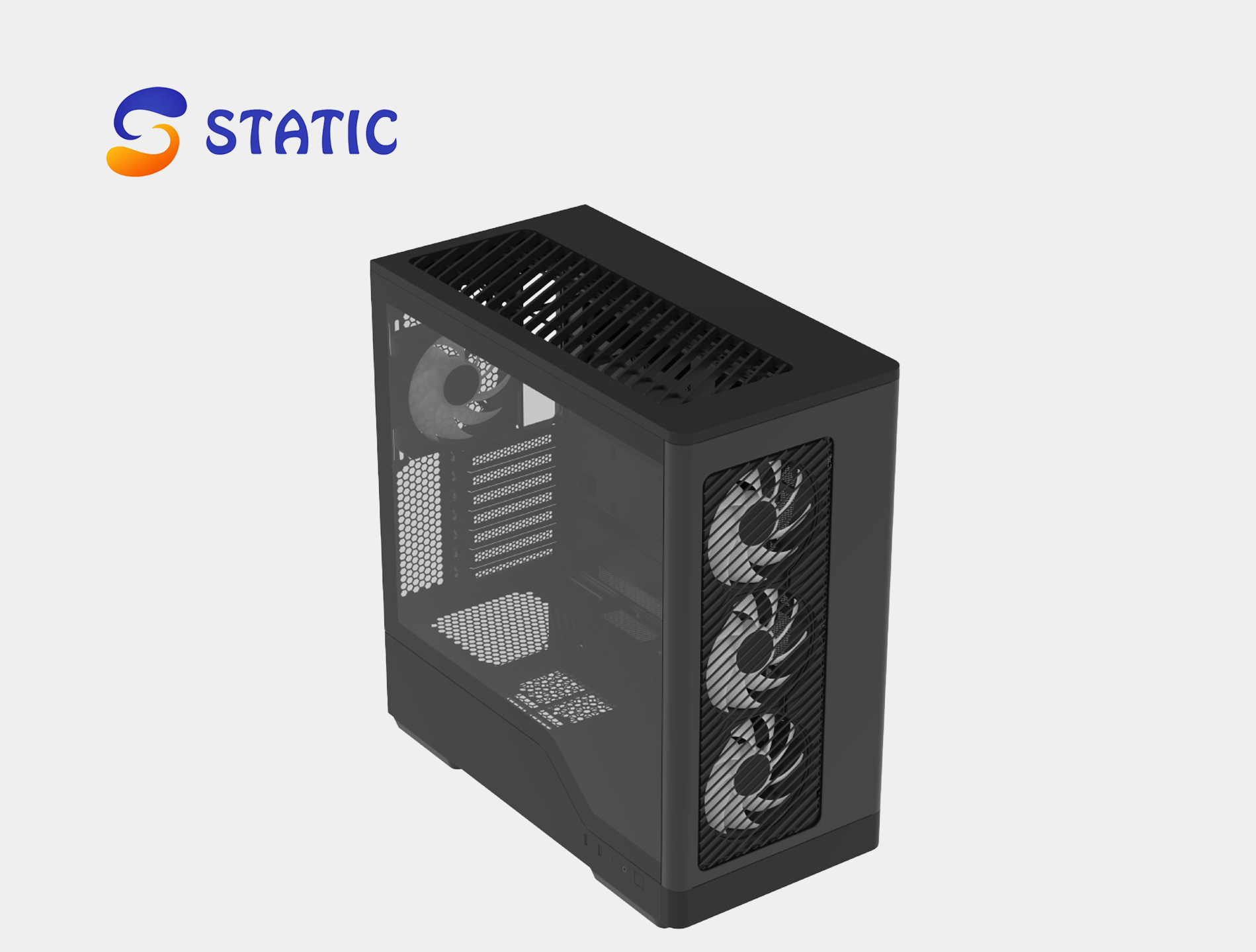

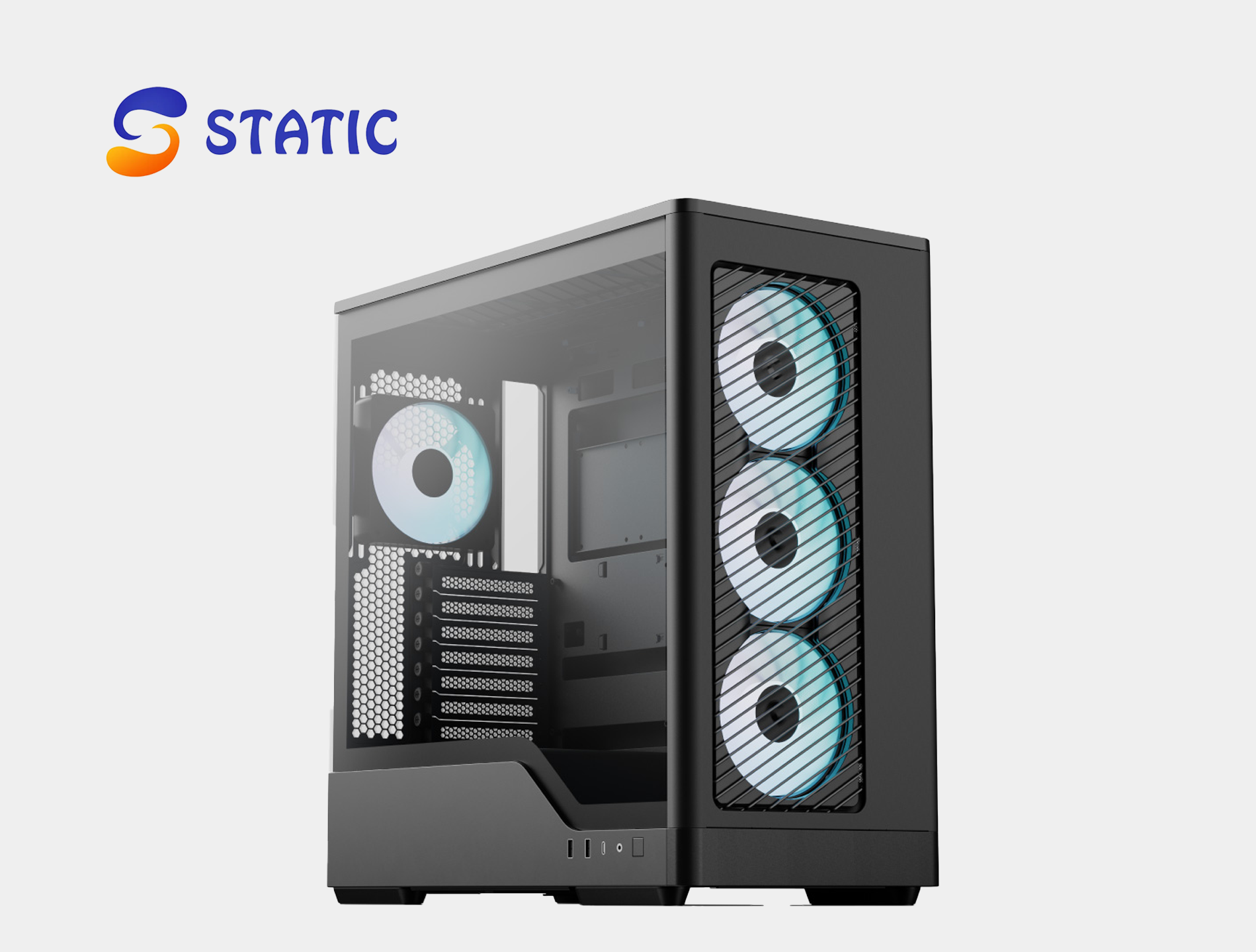

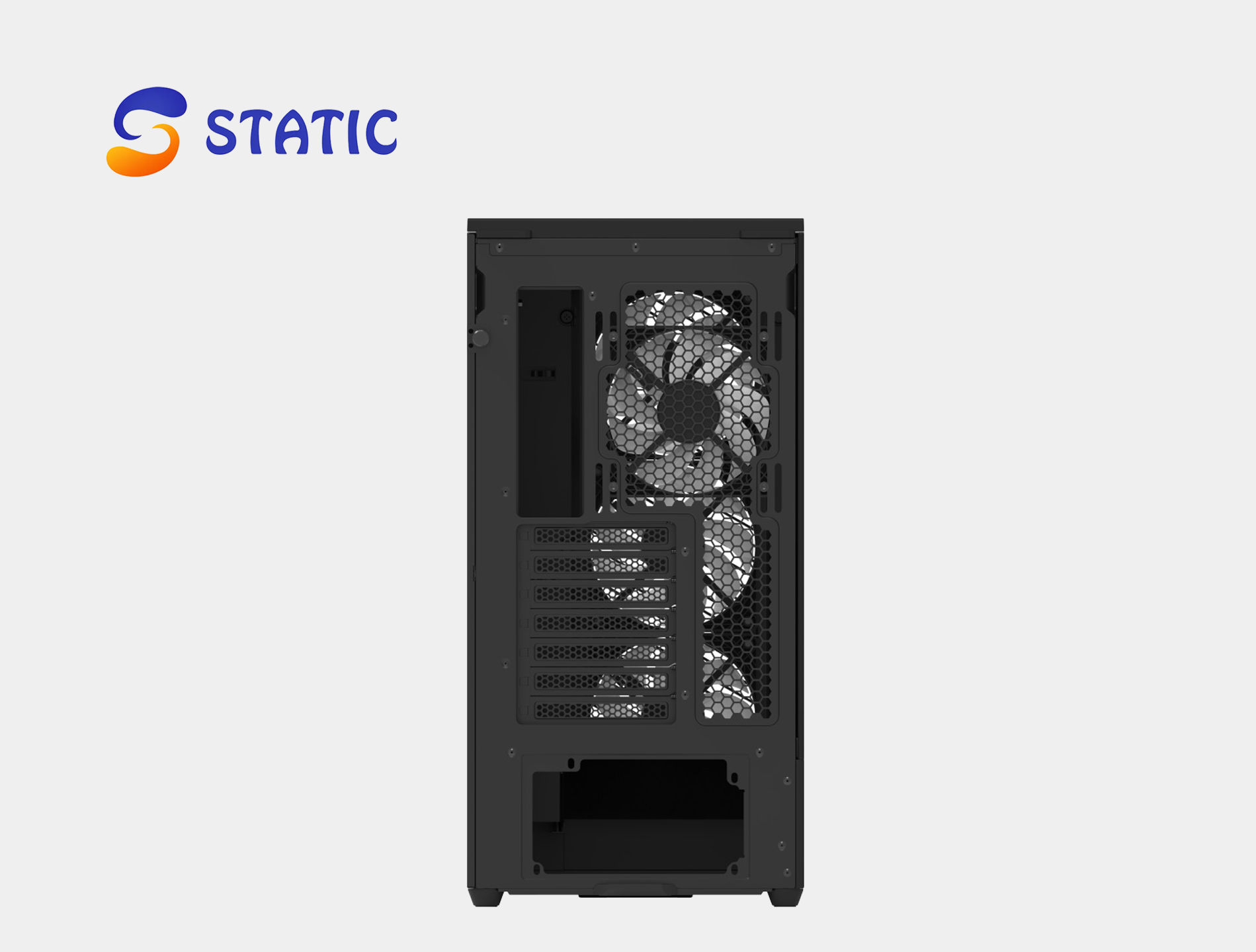

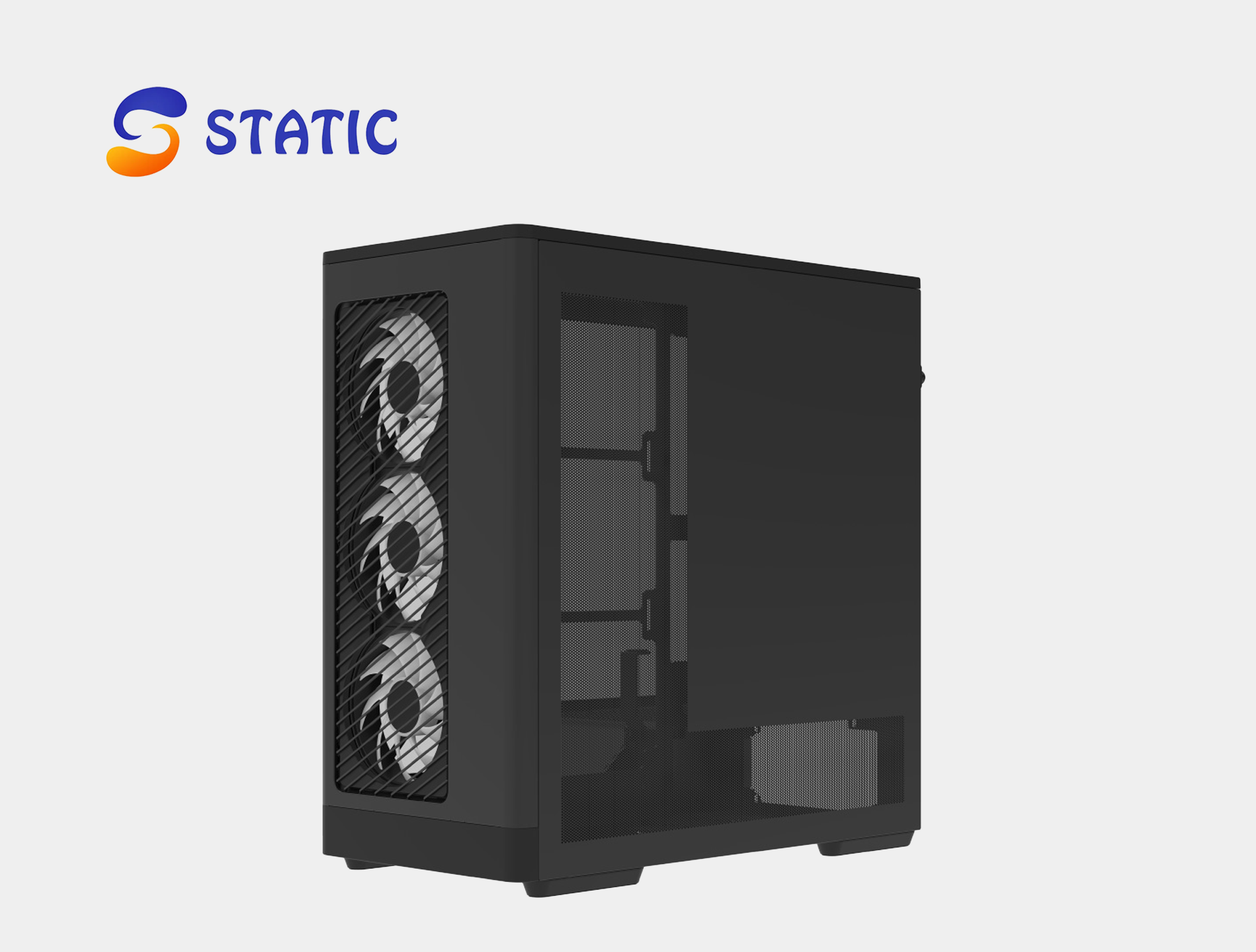

The Aerocool D520A Black is a spacious Mid Tower PC case designed for modern gaming builds and high-performance desktop systems. With support for ATX, Micro ATX, and Mini-ITX motherboards, the Aerocool D520A Black provides flexible compatibility for a wide range of PC configurations. Its 49L capacity and 460 x 235 x 480mm dimensions provide enough internal space for powerful components while maintaining a practical Mid Tower form factor.

The Aerocool D520A Black features a ventilated metal grill front panel designed to improve airflow throughout the system. Its airflow-focused design supports up to 12 fans, giving users extensive cooling potential for gaming PCs and performance-oriented builds. Three 120mm ARGB PWM fans are included at the front, while a 120mm ARGB PWM fan is included at the rear, providing a strong starting point for system cooling.

For additional cooling flexibility, the Aerocool D520A Black supports up to three 120mm fans on the side, three 120mm or two 140mm fans on the top, and two 120mm fans on the power supply shroud. The case also supports liquid cooling, with the top capable of accommodating 120mm, 140mm, 240mm, 280mm, and 360mm radiators.

Component compatibility is another important strength of the Aerocool D520A Black. The case supports graphics cards up to 400mm in length when a radiator is not installed in the front-right position, while CPU coolers up to 180mm are supported. Seven expansion slots provide additional flexibility for graphics cards and expansion hardware. A dedicated GPU support bracket is also included to help support heavier graphics cards.

Storage support includes configurations for 3.5-inch and 2.5-inch drives, allowing users to build systems with both traditional hard drives and SSDs. The case provides one 3.5-inch drive bay and up to three 2.5-inch drive positions depending on the selected configuration.

The Aerocool D520A Black also features modern front I/O connectivity, including one USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and HD Audio & Microphone connections. Its 30mm internal cable management depth helps keep cables organized and improves the overall appearance and airflow of the build.

With removable front, top, and side panels, removable nylon dust filters, reverse-connector motherboard support, an airflow-optimized PSU shroud, and a durable SPCC body, the Aerocool D520A Black is designed to make both PC building and maintenance easier.

Why Choose Aerocool D520A Black

The Aerocool D520A Black is a strong choice for gamers and PC builders looking for a spacious case with extensive cooling support and modern component compatibility. Its Mid Tower design supports ATX, Micro ATX, and Mini-ITX motherboards, allowing users to build systems across different sizes and configurations.

One of the biggest advantages of the Aerocool D520A Black is its airflow-focused design. The ventilated metal grill front panel helps provide better airflow, while the case supports up to 12 fans in total. It comes with three 120mm ARGB PWM front fans and one 120mm ARGB PWM rear fan, giving users an effective cooling setup right out of the box.

The Aerocool D520A Black also provides extensive support for additional cooling hardware. Users can install multiple fans across the front, side, top, PSU shroud, and rear positions. For liquid cooling builds, the top supports radiators up to 360mm, making the case suitable for systems using larger CPU liquid coolers.

For high-end gaming hardware, the Aerocool D520A Black offers up to 400mm of GPU clearance under the specified configuration and supports CPU coolers up to 180mm. Its dedicated GPU support bracket adds additional stability for heavy graphics cards, while seven expansion slots provide plenty of room for expansion hardware.

The case also supports reverse connector motherboards, allowing compatible builds to keep cables out of sight for a cleaner appearance. Its removable panels and removable nylon dust filters make maintenance easier, while the 30mm cable management space helps organize internal wiring.

With USB Type-C connectivity, multiple USB ports, extensive fan support, liquid cooling compatibility, modern motherboard support, and a spacious internal layout, the Aerocool D520A Black offers a flexible foundation for gaming PCs and high-performance desktop builds.

Specifications

Product Name
D520A

Model
ACL-D520A-BK-FRPB / ACL-D520A-WT-FRPW

Case Type
Mid Tower

Color
Black / White

Body Material
SPCC

Steel Thickness
0.6~0.8mm

Motherboard Support
ATX / Micro ATX / Mini-ITX

Case Dimensions
460 x 235 x 480mm (D x W x H)

Capacity
49L

Expansion Slots
7

GPU Clearance
Up to 400mm (without radiator in the front-right position)

CPU Cooler Clearance
Up to 180mm

3.5″ Drive Bays
1 Max.

2.5″ Drive Bays
Up to 3 Max.

Air Cooling
Front: 3 x 120mm ARGB PWM fans included
Side: Up to 3 x 120mm
Top: Up to 3 x 120mm or 2 x 140mm
PSU Shroud: Up to 2 x 120mm
Rear: 1 x 120mm ARGB PWM fan included

Liquid Cooling
Top: 120 / 140 / 240 / 280 / 360mm radiator support

Included Fans
3 x 120mm ARGB PWM Front Fans
1 x 120mm ARGB PWM Rear Fan

I/O Ports
1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.2 Gen 1 Type-A
HD Audio & Mic

Power Supply Support
ATX PSU up to 280mm (Optional)

Cable Management Depth
30mm

Features
Reverse Connector Motherboard Support
Ventilated Metal Grill Front Panel
Up to 12 Fan Slots
Airflow-Optimized PSU Shroud
GPU Support Bracket
Removable Front, Top, and Side Panels
Removable Nylon Dust Filters
