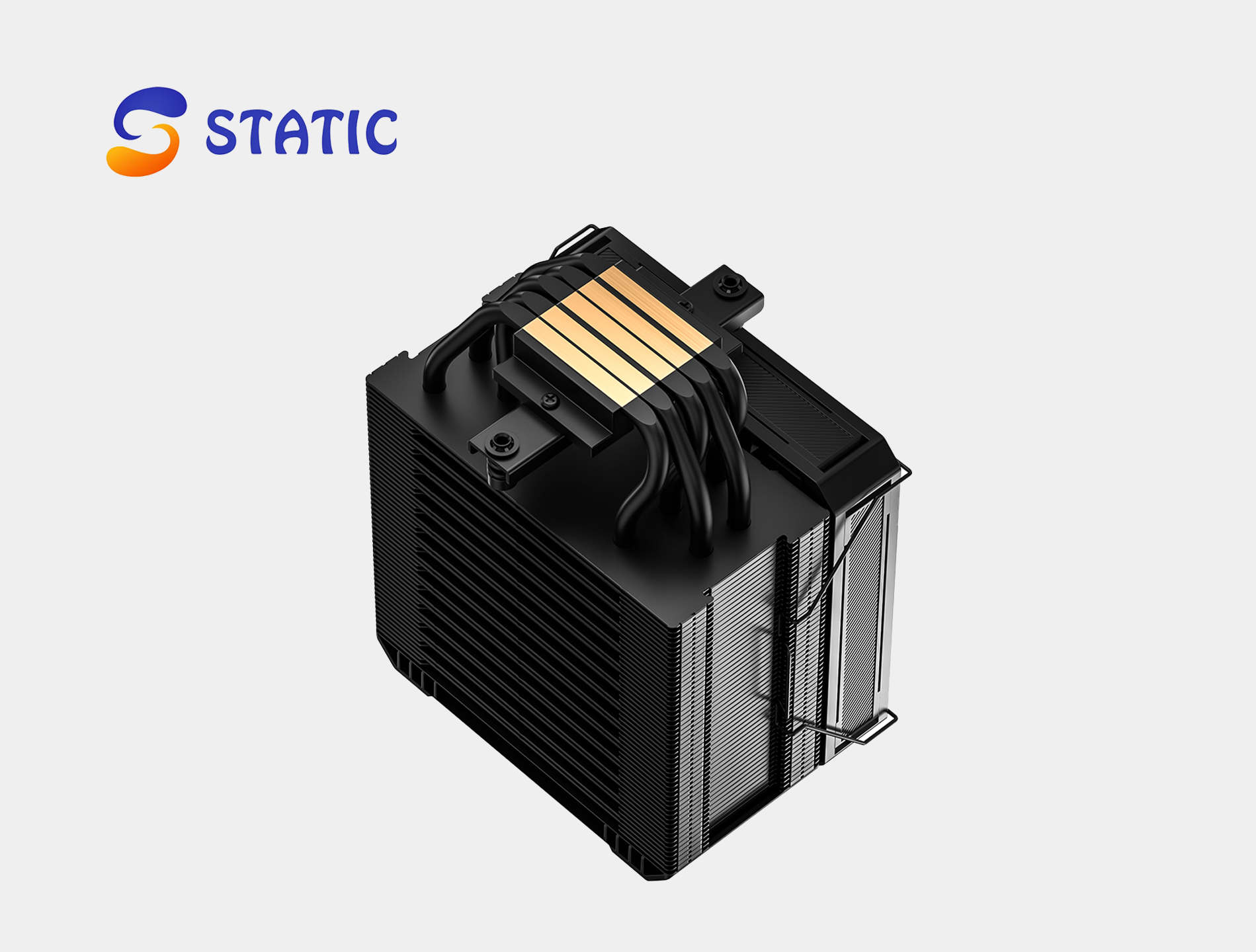

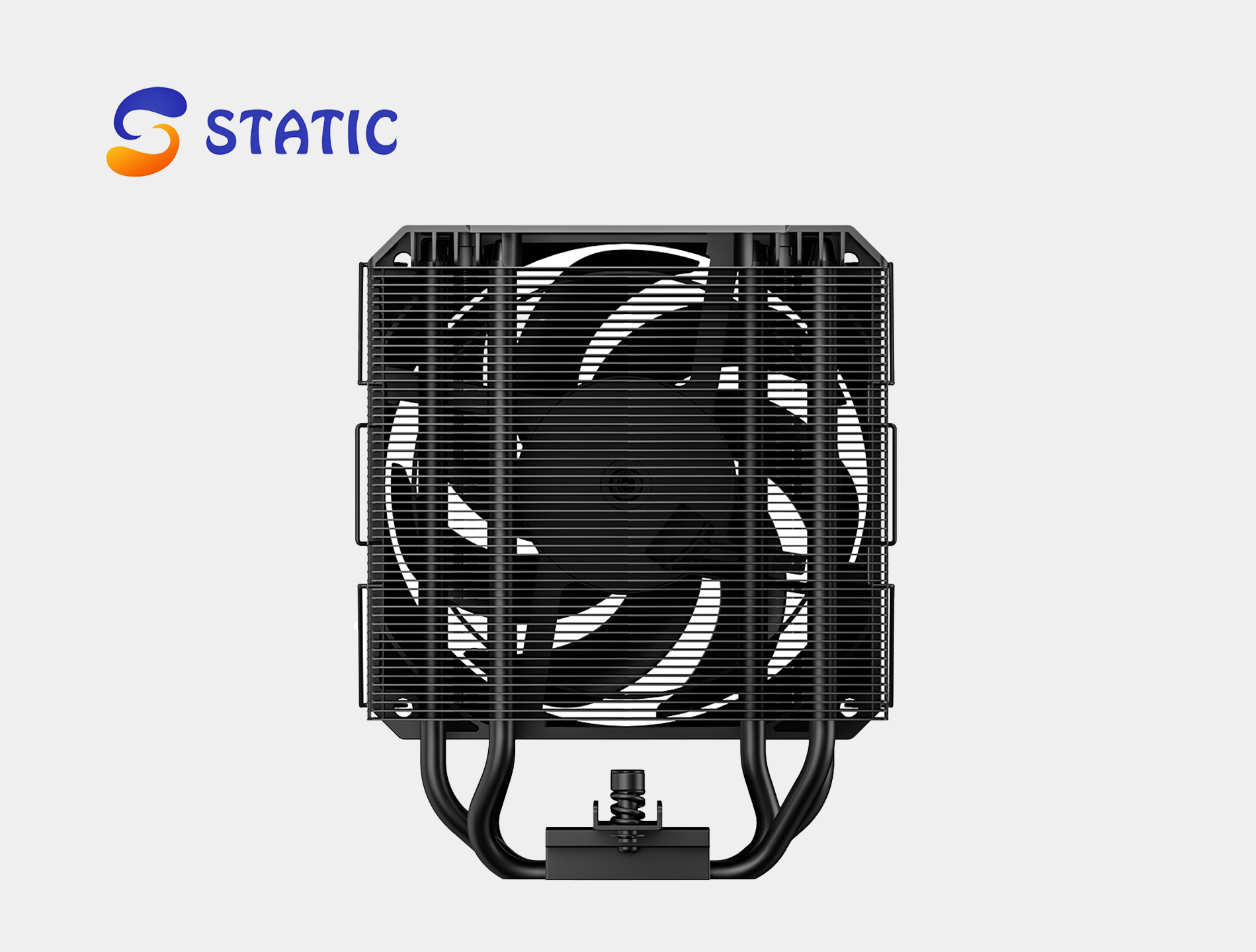

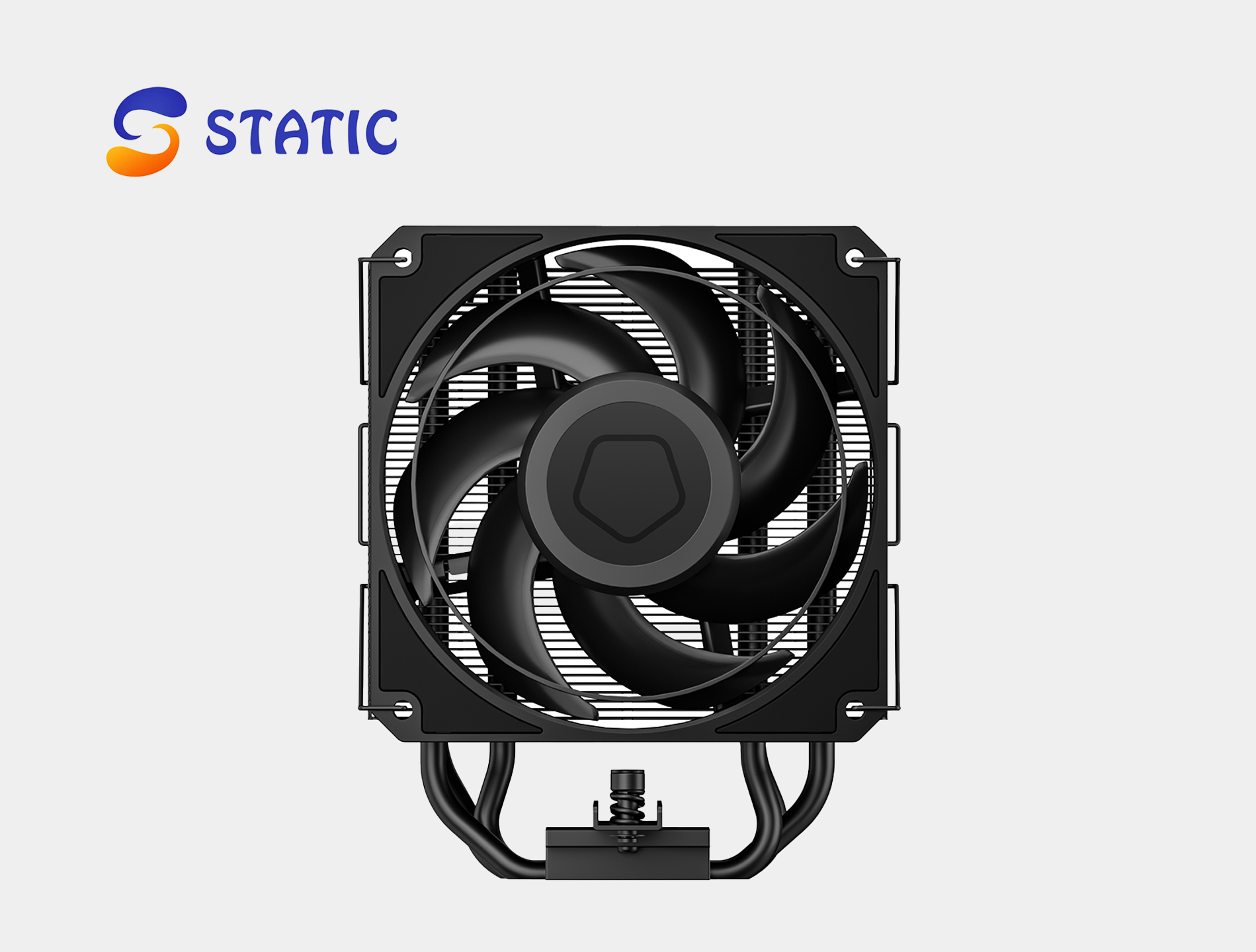

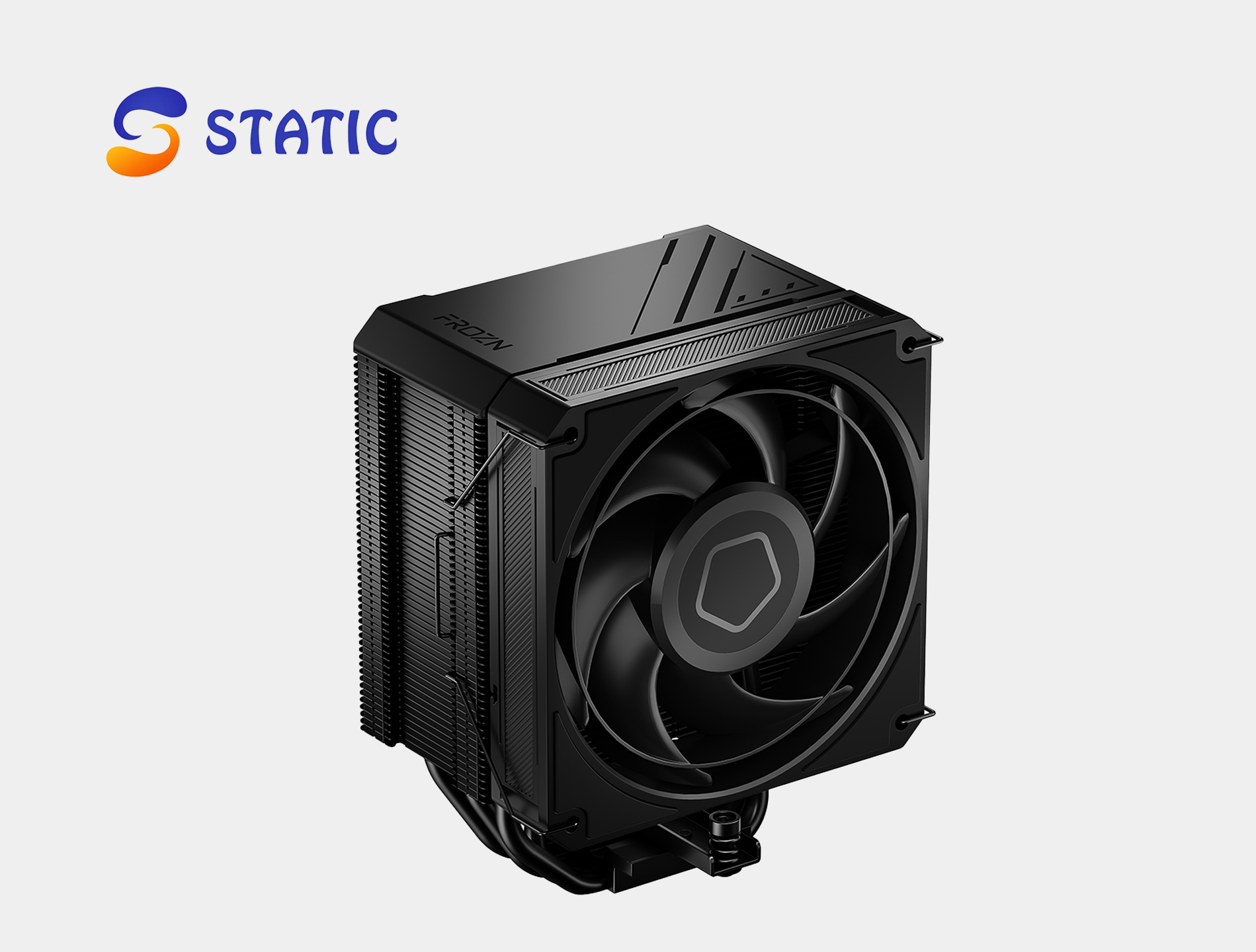

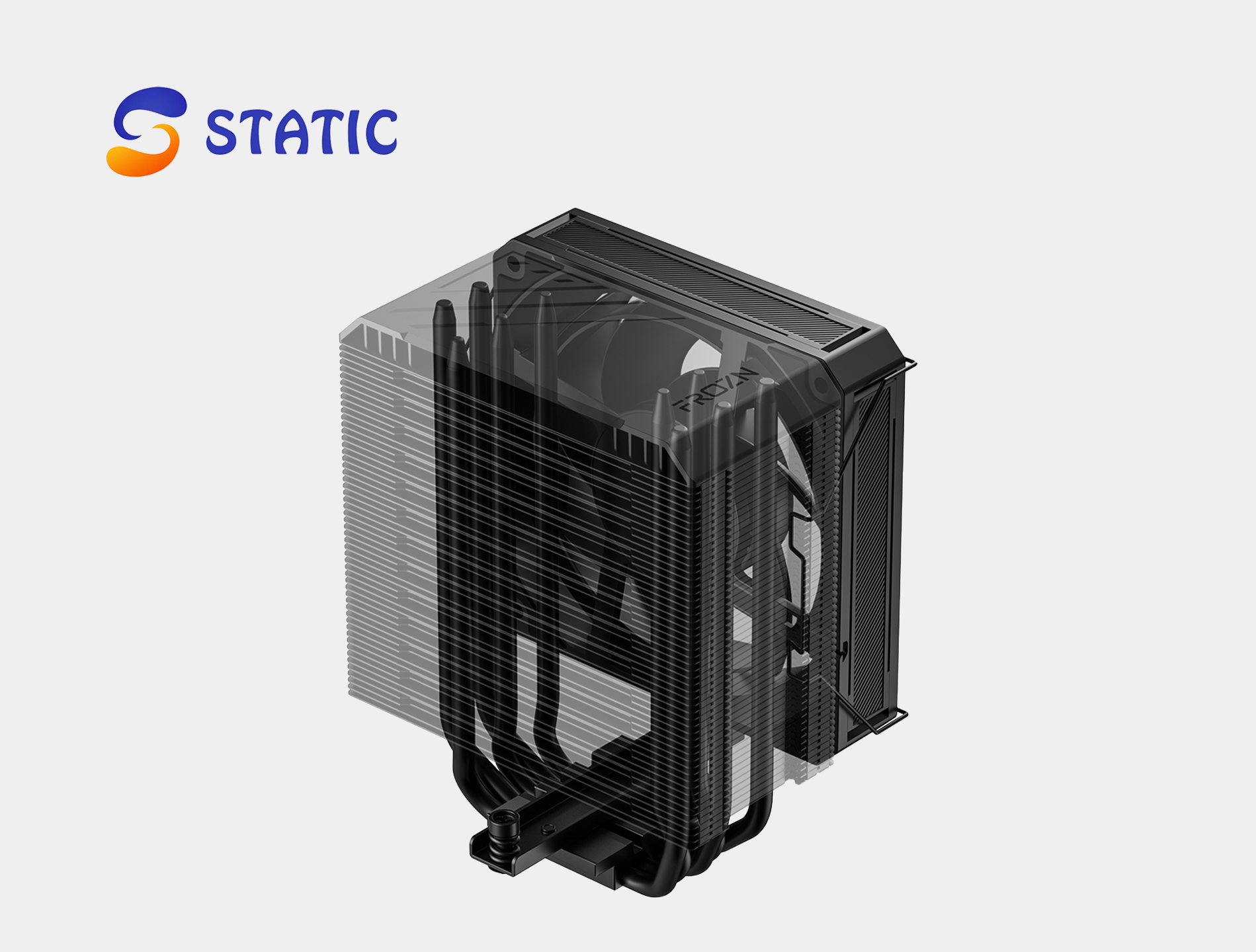

ID-Cooling A510 Turbo

The ID-Cooling A510 Turbo is a high-performance CPU air cooler designed for gamers, PC enthusiasts, and users who need effective thermal management for powerful desktop processors. With a 240W TDP rating and support for a wide range of Intel and AMD sockets, the ID-Cooling A510 Turbo provides a flexible cooling solution for both modern and existing gaming and workstation systems.

The ID-Cooling A510 Turbo features five 6mm heatpipes using a Direct Touch design, allowing heat to be transferred directly from the CPU contact area into the heatpipes and then distributed through the aluminum fin stack. This design helps improve heat dissipation and allows the cooler to handle demanding processors and sustained workloads.

Measuring 128 × 86 × 151mm, the cooler offers a compact tower-style design while maintaining a substantial cooling capacity. The heatsink and fan combination weighs approximately 820g, providing a solid construction suitable for high-performance desktop configurations.

The ID-Cooling A510 Turbo comes equipped with one AT-120 120mm fan measuring 120 × 120 × 25mm. Unlike conventional CPU fans with lower speed ranges, this fan can operate from 0 up to 3000 ± 10% RPM, allowing it to deliver high airflow when additional cooling performance is required.

At maximum speed, the fan provides up to 83 CFM of airflow and 5.04mmH₂O of static pressure. This combination makes the ID-Cooling A510 Turbo particularly suitable for pushing air through the aluminum fin stack and efficiently removing heat from the CPU cooler. The fan uses a 2-ball bearing design and connects through a 4-pin PWM connector for motherboard-based speed control.

With a maximum rated noise level of 36.5 dB(A), the fan is designed to prioritize strong cooling performance, while PWM control allows compatible motherboards to automatically adjust the fan speed according to CPU temperature and workload.

Compatibility is another major advantage of the ID-Cooling A510 Turbo. It supports Intel LGA1954, LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, and LGA1156 sockets, along with AMD AM5 and AM4 platforms. This broad compatibility makes it suitable for a variety of CPU generations and upgrade paths.

The ID-Cooling A510 Turbo combines a 240W TDP rating, five Direct Touch heatpipes, a high-speed 120mm fan, strong airflow, high static pressure, and broad Intel and AMD compatibility. It is a practical choice for users looking for powerful air cooling without moving to a liquid cooling solution.

Why Choose ID-Cooling A510 Turbo

The ID-Cooling A510 Turbo is an excellent choice for users who want powerful CPU cooling in a compact air cooler design. With a 240W TDP rating, it is built to provide effective thermal management for high-performance processors used in gaming, content creation, rendering, and other demanding workloads.

One of the key advantages of the ID-Cooling A510 Turbo is its five 6mm Direct Touch heatpipes. By making direct contact with the CPU contact area, the heatpipes are designed to transfer heat efficiently into the aluminum fin array, where it can be dissipated by the included high-performance fan.

The included AT-120 120mm fan is another major strength. It supports a wide speed range from 0 up to 3000 ± 10% RPM and can deliver up to 83 CFM of airflow with a maximum static pressure of 5.04mmH₂O. This gives the ID-Cooling A510 Turbo the ability to move a substantial amount of air through the heatsink when the processor is under heavy load.

The 4-pin PWM connection allows the motherboard to control the fan speed automatically, helping balance cooling performance and acoustics depending on system temperature. The 2-ball bearing design also provides reliable fan operation.

Compatibility is particularly broad. The ID-Cooling A510 Turbo supports Intel LGA1954, LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, and LGA1156 sockets, as well as AMD AM5 and AM4 platforms. This makes it a versatile option for both new builds and CPU upgrades.

Its 128 × 86 × 151mm dimensions also make the cooler more compact than many larger dual-tower solutions, while the 820g heatsink-and-fan weight reflects its substantial construction.

Overall, the ID-Cooling A510 Turbo offers a strong combination of cooling capacity, high airflow, high static pressure, Direct Touch heatpipes, PWM control, and wide platform compatibility, making it a capable air cooling solution for performance-oriented PC builds.

Specifications

Compatibility

• Intel Socket Support: LGA1954 / LGA1851 / LGA1700 / LGA1200 / LGA1151 / LGA1150 / LGA1155 / LGA1156
• AMD Socket Support: AM5 / AM4
• TDP: 240W

Heatsink

• Overall Dimensions: 128 × 86 × 151mm (L × W × H)
• Heatsink Material: Aluminum Fin
• Heatpipes: 5 × Ø6mm Heatpipes
• Heatpipe Design: Direct Touch
• Weight: 820g (Heatsink + Fan)

Fan

• Fan Model: AT-120
• Fan Quantity: 1
• Fan Dimensions: 120 × 120 × 25mm
• Fan Speed: 0 ~ 3000 ± 10% RPM
• Maximum Air Flow: 83 CFM
• Maximum Static Pressure: 5.04mmH₂O
• Maximum Noise: 36.5 dB(A)
• Bearing Type: 2-Ball Bearing

Electrical Specifications

• Rated Voltage: 12V DC
• Operating Voltage: 10.8 ~ 13.2V DC
• Started Voltage: 7V DC
• Rated Current: 0.35A
• Power Input: 4.2W

Connectivity

• Fan Connector: 4-Pin PWM
